LS110-SEBBSY (1980)
Toyota Crown
Production
Oct 1980
-
Aug 1981
Engine
L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8010- )4H

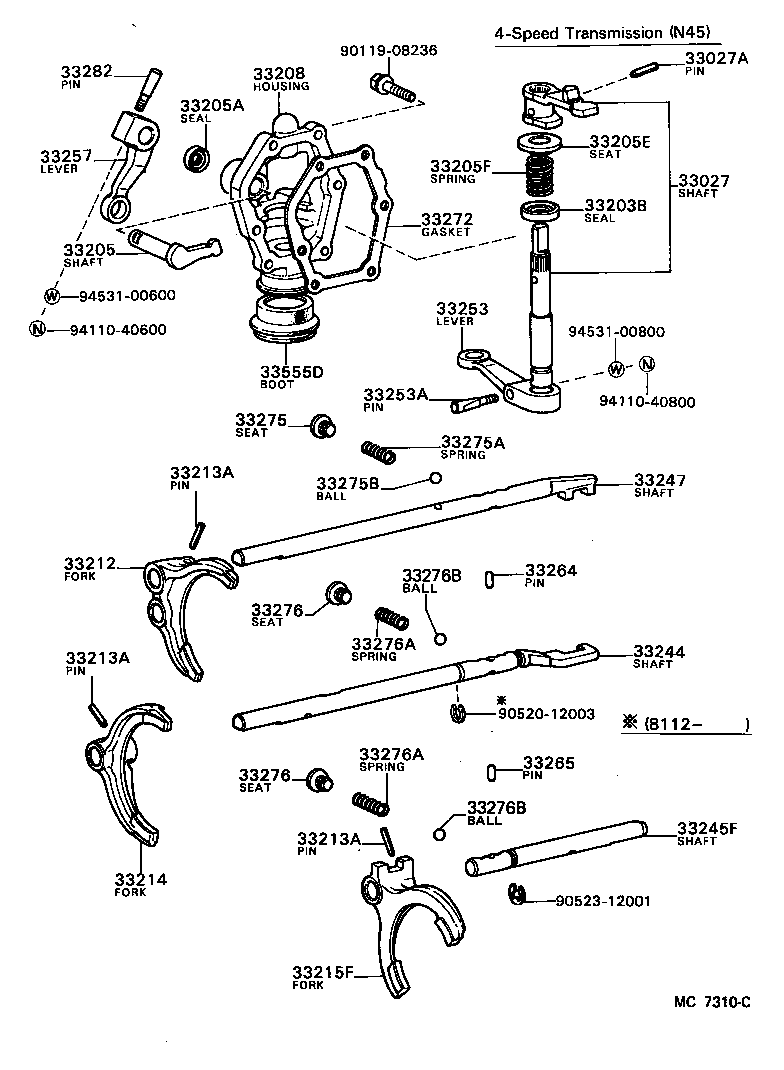

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-16004 |
LS11#..4H |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-31010 |
LS11#..4H |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90312-16004 |
LS11#..4H |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LS11#,MS11#,RS110..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LS11#,MS11#,RS110..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LS11#,MS11#,RS110..MTM |
3 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-31011 |
LS11#..4H |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-35010 |
LS11#..4H |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-31010 |
LS11#..4H |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
LS11#..MTM |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-31010 |
LS11#..4F,4H L=12.6 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12004 |
LS11#,MS110,117,RS110..3H,4H 外径=18 |
1 | ||
| 90341-10004 |
LS11#..MTM |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13004 |
LS11#,MS110,117,RS110..3H,4H 長さ=20.65 |
1 | ||
| 90501-13001 |
LS11#..MTM 長さ=16.5 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
LS11#..MTM |
1 | ||
| 90360-10003 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10064 |
LS11#..MTM |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10064 |
LS11#..MTM |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
LS11#..MTM |
2 | ||
| 90501-13004 |
LS11#,MS110,117,RS110..3H,4H |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
LS11#..MTM |
2 | ||
| 90501-13004 |
LS11#,MS110,117,RS110..3H,4H |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
LS11#..MTM |
2 | ||
| 90360-10003 |
LS11#,MS110,117,RS110..3H,4H |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
LS11#..MTM |
2 | ||
| 90360-10003 |
LS11#,MS110,117,RS110..3H,4H |
2 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 90254-05016 |
LS11#..4H |
2 | ||
| Common parts | ||||
| 90119-08236 | ||||
| 90520-12003 | ||||
| 90523-12001 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
