JZS135-AESUF (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2JZGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9512)JZS135

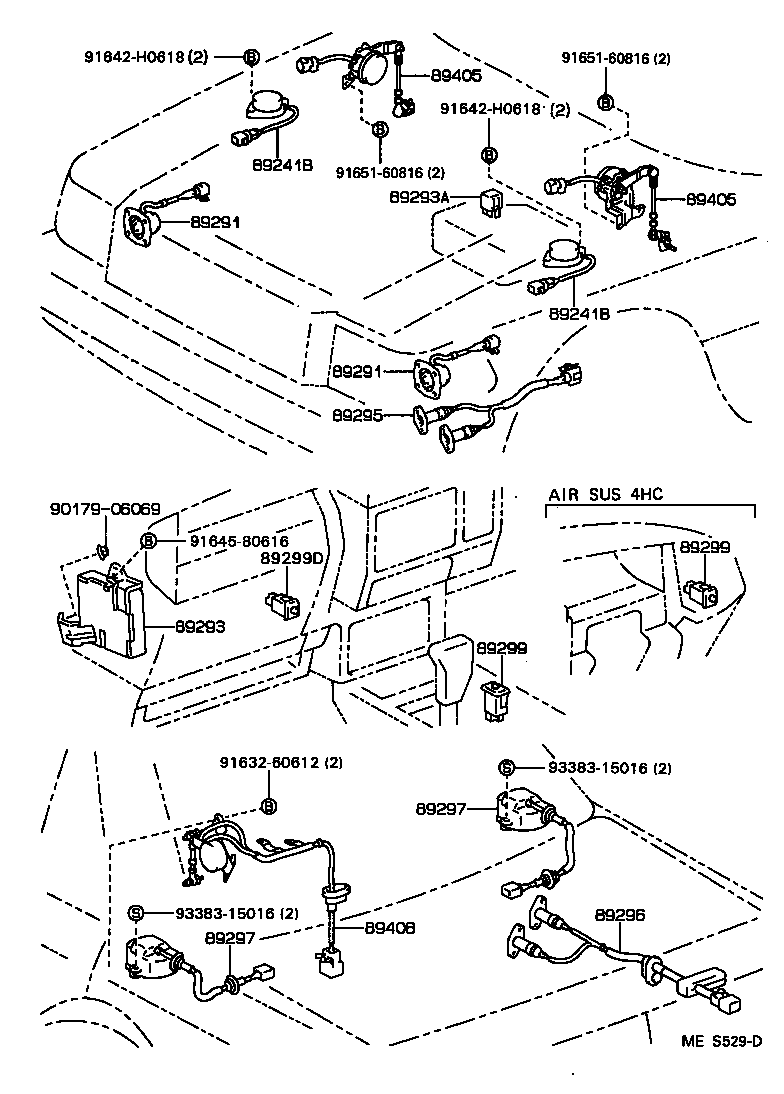

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30030 |
JZS135 |
2 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30030 |
JZS135 |
2 | ||
| 89291 - ACTUATOR, SUSPENSION CONTROL, FRONT | ||||
| 89291-30020 |
JZS135 |
2 | ||
| 89291 - ACTUATOR, SUSPENSION CONTROL, FRONT | ||||
| 89291-30020 |
JZS135 |
2 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-30081 |
JZS135 |
1 | ||
| 89293-30080 |
JZS135 |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90987-02006 |
JZS135 |
1 | ||
| 89295 - SOLENOID, SUSPENSION CONTROL, FRONT | ||||
| 89295-30030 |
JZS135 |
1 | ||
| 89296 - SOLENOID, SUSPENSION CONTROL, REAR | ||||
| 89296-30040 |
JZS135 |
1 | ||
| 89297 - ACTUATOR, SUSPENSION CONTROL, REAR | ||||
| 89297-30040 |
JZS135 AISIN,RH |
1 | ||
| 89298-30040 |
JZS135 AISIN,LH |
1 | ||
| 89297-30050 |
JZS135 NIPPONDENSO,RH |
1 | ||
| 89298-30050 |
JZS135 NIPPONDENSO,LH |
1 | ||
| 89297 - ACTUATOR, SUSPENSION CONTROL, REAR | ||||
| 89297-30040 |
JZS135 AISIN,RH |
1 | ||
| 89298-30040 |
JZS135 AISIN,LH |
1 | ||
| 89297-30050 |
JZS135 NIPPONDENSO,RH |
1 | ||
| 89298-30050 |
JZS135 NIPPONDENSO,LH |
1 | ||
| 89299 - SWITCH, SUSPENSION CONTROL | ||||
| 89299-30020 |
JZS135..4HC ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 89299 - SWITCH, SUSPENSION CONTROL | ||||
| 89299-30020 |
JZS135..4HC ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 89299D - SWITCH, SUSPENSION CONTROL, NO.2 | ||||
| 89299-30050 |
JZS135 |
1 | ||
| 89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT | ||||
| 89405-30040 |
JZS135 右側 |
1 | ||
| 89406-30040 |
JZS135 左側 |
1 | ||
| 89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT | ||||
| 89405-30040 |
JZS135 右側 |
1 | ||
| 89406-30040 |
JZS135 左側 |
1 | ||
| 89408 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89408-30040 |
JZS135 |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 91632-60612 | ||||
| 91642-H0618 | ||||
| 91645-80616 | ||||
| 91651-60816 | ||||
| 93383-15016 | ||||
