JZS135-AESUF (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2JZGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )JZS135

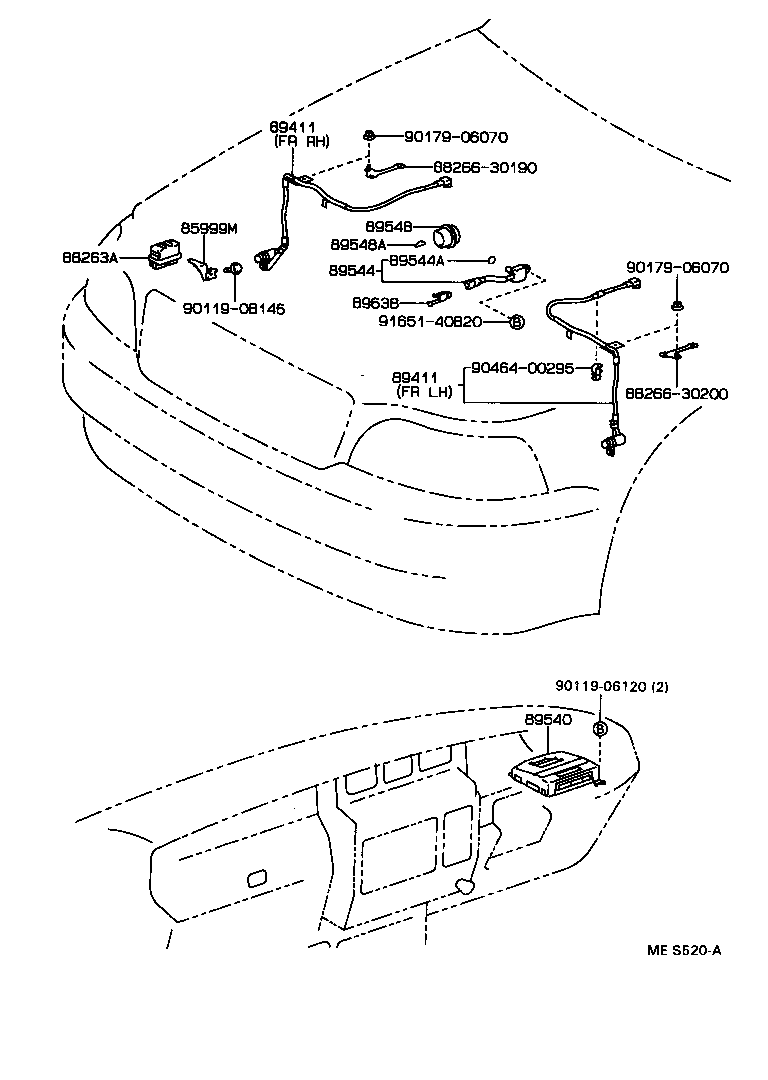

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-30450 |
JZS13#,LS131 |
1 | ||
| 85999-30410 |
JZS13#,LS131 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
JZS13#,LS131 |
1 | ||
| 88263-35070 |
JZS13#,LS131 SKID |
1 | ||
| 89633-50030 |
JZS13#,LS131 TRACTION |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-30150 |
JZS135 FRONT LH |
1 | ||
| 89542-30150 |
JZS135 FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-30150 |
JZS135 FRONT LH |
1 | ||
| 89542-30150 |
JZS135 FRONT RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-30140 |
JZS13#,LS131 |
1 | ||
| 89540-30140 |
JZS135 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-30010 |
JZS13#,LS131 |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 90301-11008 |
JZS13#,LS131 |
1 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89548-14010 |
JZS13#,LS131 |
1 | ||
| 89548A - KEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR) | ||||
| 90280-03005 |
JZS13#,LS131 |
1 | ||
| 89638 - COVER, BRAKE CONTROL COMPUTER | ||||
| 89638-30010 |
JZS13#,LS131 |
1 | ||
| Common parts | ||||
| 88266-30190 | ||||
| 88266-30200 | ||||
| 90119-06120 | ||||
| 90119-08146 | ||||
| 90179-06070 | ||||
| 90464-00295 | ||||
| 91651-40820 | ||||
