JZS135-AESUF (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2JZGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )JZS133,135

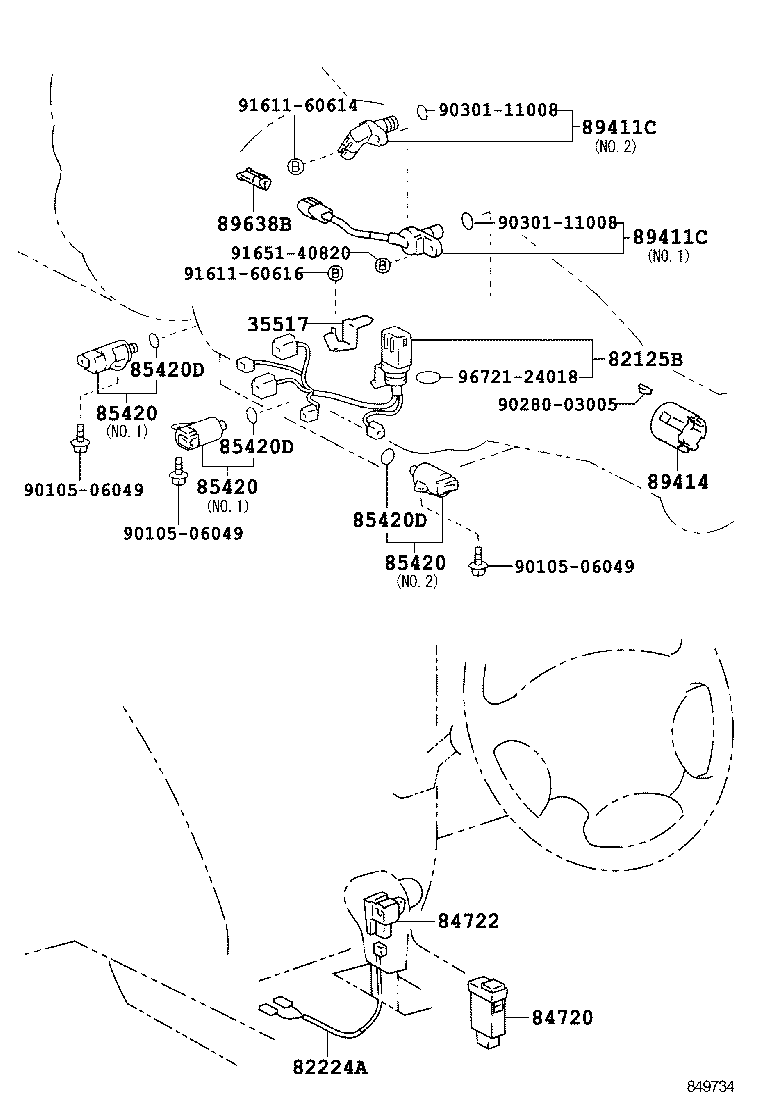

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-30010 |
JZS13#,LS130,131 |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-30290 |
JZS133,135 |
1 | ||
| 82125-30390 |
JZS133,135 |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-30190 |
JZS13#..4HC |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420-30190 |
JZS133,135 NO.2 |
1 | ||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420-30190 |
JZS133,135 NO.2 |
1 | ||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420-30190 |
JZS133,135 NO.2 |
1 | ||
| 85420-50020 |
JZS133,135 NO.1 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS133,135 |
2 | ||
| 90301-06004 |
JZS13#,LS130,131 |
2 | ||
| 90301-06004 |
JZS133,135 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS133,135 |
2 | ||
| 90301-06004 |
JZS13#,LS130,131 |
2 | ||
| 90301-06004 |
JZS133,135 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS133,135 |
2 | ||
| 90301-06004 |
JZS13#,LS130,131 |
2 | ||
| 90301-06004 |
JZS133,135 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JZS135 |
1 | ||
| 89411-50010 |
JZS133,135 |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JZS135 |
1 | ||
| 89411-50010 |
JZS133,135 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90280-03005 | ||||
| 90301-11008 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91651-40820 | ||||
| 96721-24018 | ||||
