JZS135-AESUF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

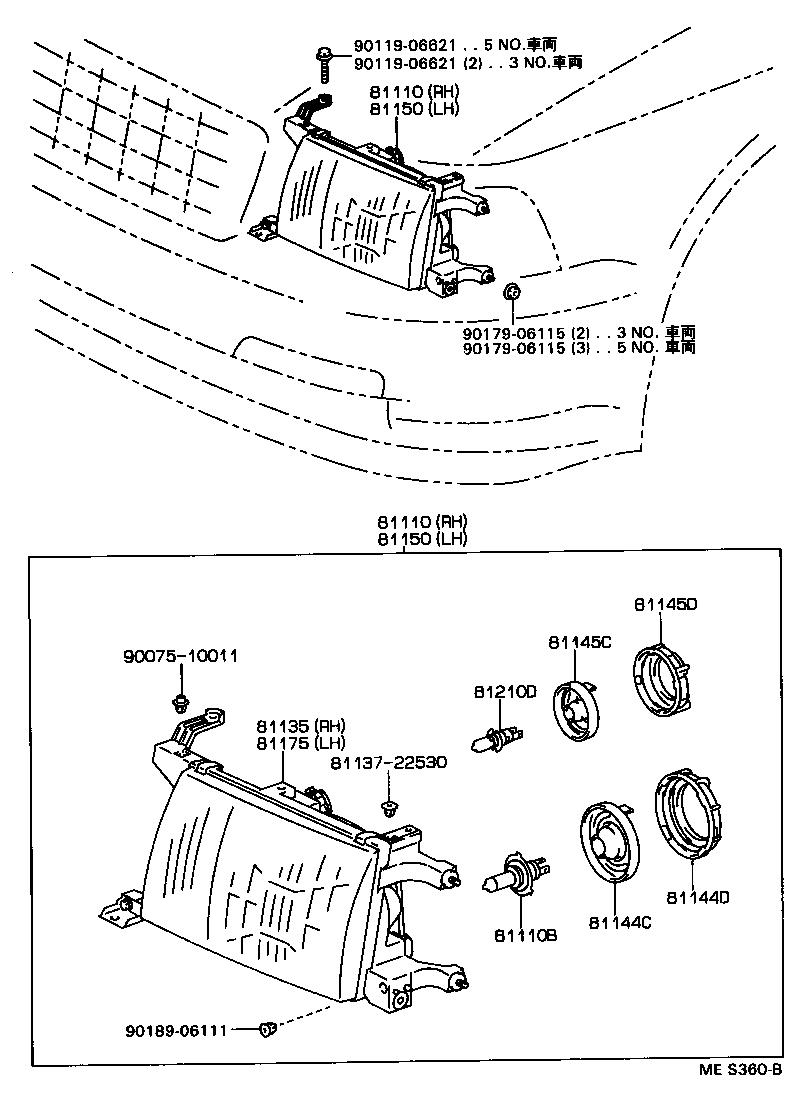

Click highlighted areas on diagram

ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)

diagram 81110 81110 81110B 81135 8113722530 81144C 81144D 81145C 81145D 81150 81150 81175 81210D 9007510011 9011906621 9011906621 9017906115 9017906115 9018906111
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81110 - HEADLAMP ASSY, RH
81110-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81144C - COVER, HEADLAMP SOCKET
90075-99058

GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

 2
81144D - CAP, HEADLAMP LOCKING
90075-99057

GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

 2
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-99072

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 2
90075-99072

YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 2
81145D - CAP, HEADLAMP LOCKING NO.2
90075-99073

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 2
90075-99073

YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 2
81150 - HEADLAMP ASSY, LH
81150-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81150 - HEADLAMP ASSY, LH
81150-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-3A030

GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
81210D - BULB, FOG LAMP
90981-13027

YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13027

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
81137-22530
90075-10011
90119-06621
90179-06115
90189-06111
