JZS135-AESUF (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2JZGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

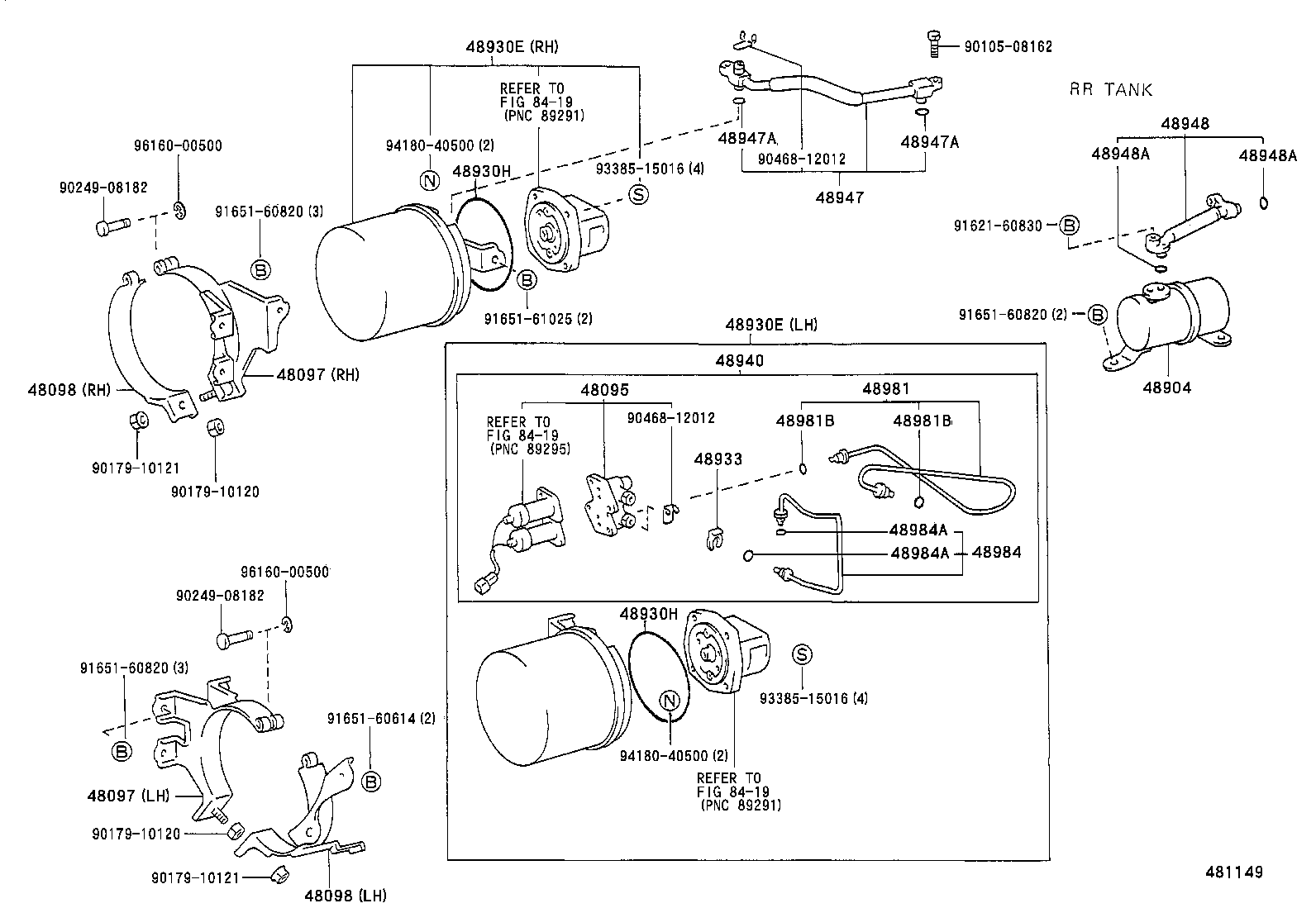

ILLUST NO. 2 OF 3(9110- )JZS135
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-30030 |
JZS135 |
1 | ||
| 48097 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1 | ||||
| 48097-30030 |
JZS135 右側 |
1 | ||
| 48097-30020 |
JZS135 左側 |
1 | ||
| 48097 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.1 | ||||
| 48097-30030 |
JZS135 右側 |
1 | ||
| 48097-30020 |
JZS135 左側 |
1 | ||
| 48098 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2 | ||||
| 48098-30030 |
JZS135 左側 |
1 | ||
| 48098-30010 |
JZS135 右側 |
1 | ||
| 48098 - BRACKET SUB-ASSY, PNEUMATIC TANK, NO.2 | ||||
| 48098-30030 |
JZS135 左側 |
1 | ||
| 48098-30010 |
JZS135 右側 |
1 | ||
| 48904 - TANK SUB-ASSY, PNEUMATIC, REAR | ||||
| 48904-30011 |
JZS135 右側 |
1 | ||
| 48904-30021 |
JZS135 左側 |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-30050 |
JZS135 右側 |
1 | ||
| 48930-30060 |
JZS135 左側 |
1 | ||
| 48930E - TANK ASSY, PNEUMATIC | ||||
| 48930-30050 |
JZS135 右側 |
1 | ||
| 48930-30060 |
JZS135 左側 |
1 | ||
| 48930H - GASKET(FOR PNEUMATIC TANK) | ||||
| 90430-86001 |
JZS135 |
2 | ||
| 48930H - GASKET(FOR PNEUMATIC TANK) | ||||
| 90430-86001 |
JZS135 |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
JZS135 内径=10 |
8 | ||
| 48933-30020 |
JZS135 ID=18.0 |
1 | ||
| 48933-30010 |
JZS135 |
2 | ||
| 48940 - VALVE ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48940-30050 |
JZS135 |
1 | ||
| 48947 - TUBE, CHAMBER TO TANK, FRONT | ||||
| 48947-30010 |
JZS135 右側 |
1 | ||
| 48947-30020 |
JZS135 左側 |
1 | ||
| 48947A - RING, O(FOR CHAMBER TO TANK FRONT TUBE) | ||||
| 90301-16002 |
JZS135 |
4 | ||
| 48947A - RING, O(FOR CHAMBER TO TANK FRONT TUBE) | ||||
| 90301-16002 |
JZS135 |
4 | ||
| 48948 - TUBE, CHAMBER TO TANK, REAR | ||||
| 48948-30010 |
JZS135 右側 |
1 | ||
| 48948-30020 |
JZS135 左側 |
1 | ||
| 48948A - RING, O(FOR CHAMBER TO TANK REAR TUBE) | ||||
| 90301-16002 |
JZS135 |
4 | ||
| 48948A - RING, O(FOR CHAMBER TO TANK REAR TUBE) | ||||
| 90301-16002 |
JZS135 |
4 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48982-30050 |
JZS135 |
1 | ||
| 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-30040 |
JZS135 |
1 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| Common parts | ||||
| 90105-08162 | ||||
| 90179-10120 | ||||
| 90179-10121 | ||||
| 90249-08182 | ||||
| 90468-12012 | ||||
| 91621-60830 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 93385-15016 | ||||
| 94180-40500 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8419 | ||||

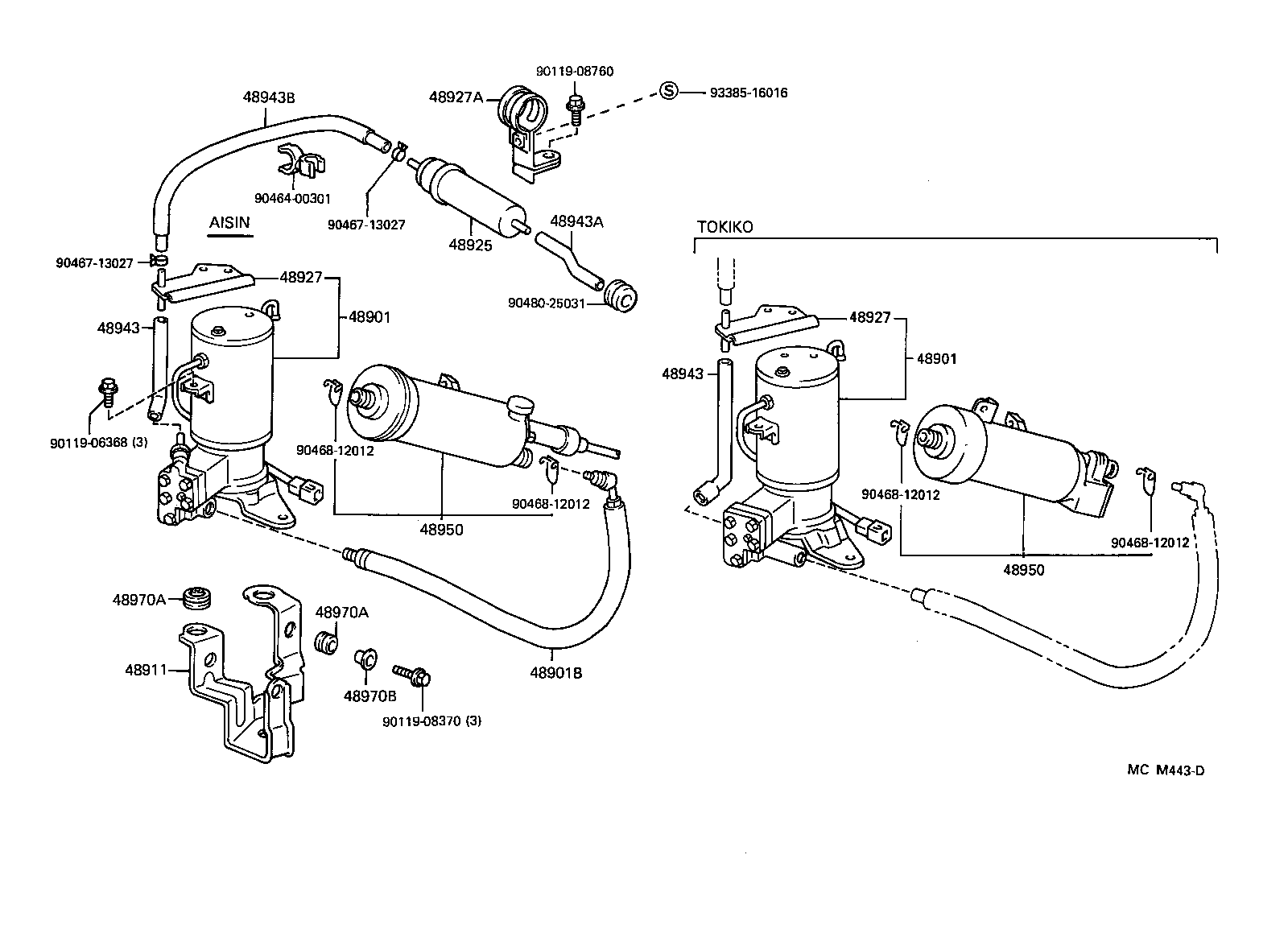

ILLUST NO. 1 OF 3(9110- )JZS135
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48910-30150 |
JZS135 MARK=89275-30080 |
1 | ||
| 48910-30140 |
JZS135 MARK=89275-30090 |
1 | ||
| 48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48910-30150 |
JZS135 MARK=89275-30080 |
1 | ||
| 48910-30140 |
JZS135 MARK=89275-30090 |
1 | ||
| 48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90947-02679 |
JZS135 |
1 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-30021 |
JZS135 |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-30030 |
JZS135 |
1 | ||
| 48927 - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-30040 |
JZS135 |
1 | ||
| 48927 - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.1 | ||||
| 48927-30040 |
JZS135 |
1 | ||
| 48927A - BRACKET, HEIGHT CONTROL AIR CLEANER, NO.2 | ||||
| 48927-30050 |
JZS135 |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30030 |
JZS135 AISIN |
1 | ||
| 48943-30080 |
JZS135 TOKIKO |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-30030 |
JZS135 AISIN |
1 | ||
| 48943-30080 |
JZS135 TOKIKO |
1 | ||
| 48943A - HOSE, HEIGHT CONTROL, NO.3 | ||||
| 48943-30050 |
JZS135 |
1 | ||
| 48943B - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48943-30040 |
JZS135 |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-30141 |
JZS135 TOKIKO COMPRESSER |
1 | ||
| 48950-30131 |
JZS135 AISIN COMPRESSOR |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-30141 |
JZS135 TOKIKO COMPRESSER |
1 | ||
| 48950-30131 |
JZS135 AISIN COMPRESSOR |
1 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
JZS135 OD=22,T=15.7 |
3 | ||
| 90389-06022 |
JZS135 AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
JZS135 外径=22 |
3 | ||
| 90389-06022 |
JZS135 OD=30 |
3 | ||
| 48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-10022 |
JZS135 OD=22,T=15.7 |
3 | ||
| 90389-06022 |
JZS135 AISIN,OD=30,T=15 |
3 | ||
| 90385-10022 |
JZS135 外径=22 |
3 | ||
| 90389-06022 |
JZS135 OD=30 |
3 | ||
| 48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET) | ||||
| 90561-08002 |
JZS135 |
3 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-08370 | ||||
| 90119-08760 | ||||
| 90464-00301 | ||||
| 90467-13027 | ||||
| 90468-12012 | ||||
| 90480-25031 | ||||
| 93385-16016 | ||||

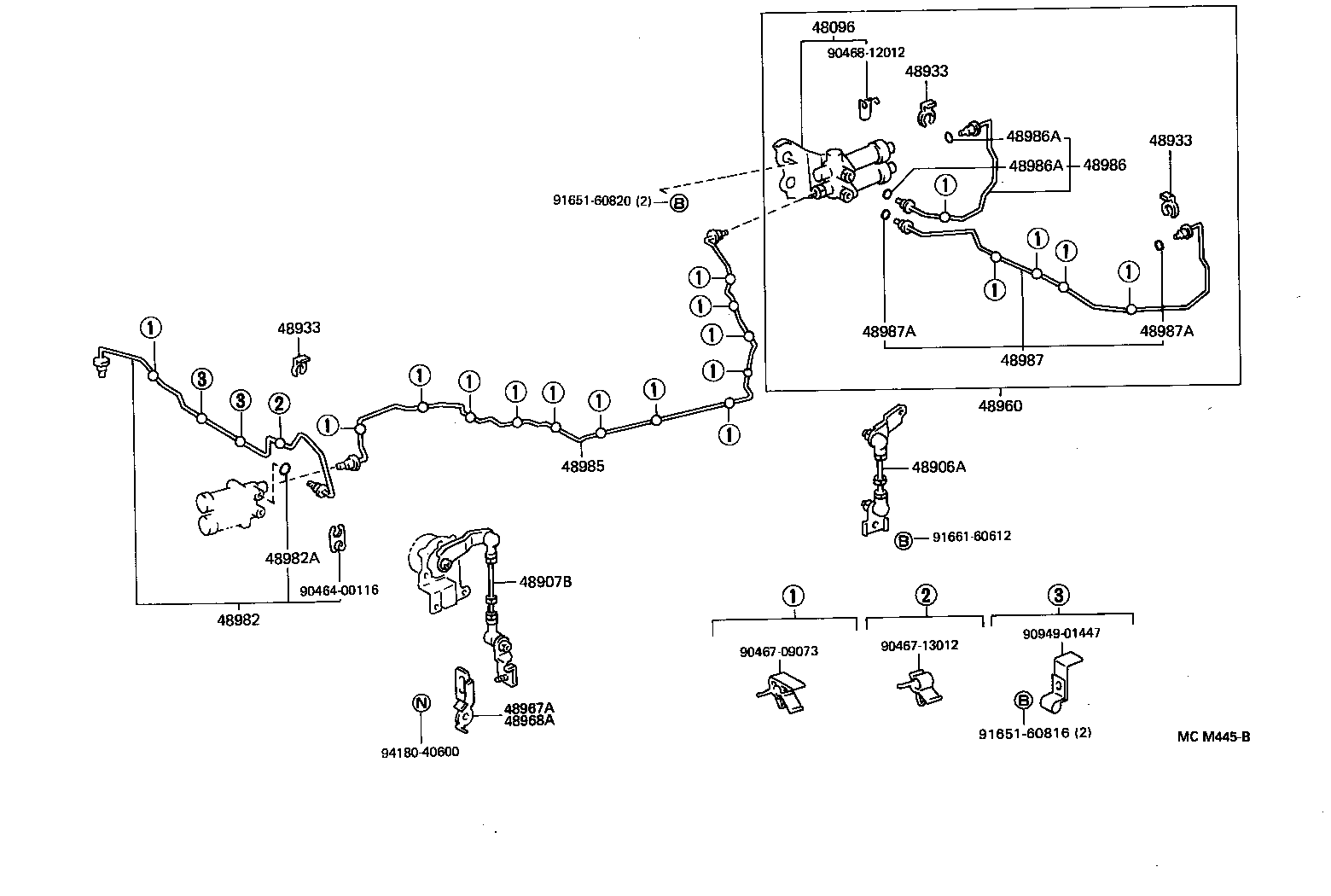

ILLUST NO. 3 OF 3(9110- )JZS135
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-30040 |
JZS135 |
1 | ||
| 48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-30020 |
JZS135 |
1 | ||
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-30021 |
JZS135 左側 |
1 | ||
| 48907-30011 |
JZS135 右側 |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
JZS135 内径=10 |
8 | ||
| 48933-30020 |
JZS135 ID=18.0 |
1 | ||
| 48933-30010 |
JZS135 |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
JZS135 内径=10 |
8 | ||
| 48933-30020 |
JZS135 ID=18.0 |
1 | ||
| 48933-30010 |
JZS135 |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
JZS135 内径=10 |
8 | ||
| 48933-30020 |
JZS135 ID=18.0 |
1 | ||
| 48933-30010 |
JZS135 |
2 | ||
| 48960 - VALVE ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48960-30040 |
JZS135 |
1 | ||
| 48967A - END, SENSOR CONNECTING ROD, NO.1 | ||||
| 48967-30011 |
JZS135 |
1 | ||
| 48968A - END, SENSOR CONNECTING ROD, NO.2 | ||||
| 48968-30011 |
JZS135 |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48983-30080 |
JZS135 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-30030 |
JZS135 |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-30010 |
JZS135 |
1 | ||
| 48986A - RING, O(FOR HEIGHT CONTROL NO.6 TUBE) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48986A - RING, O(FOR HEIGHT CONTROL NO.6 TUBE) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-30010 |
JZS135 |
1 | ||
| 48987A - RING, O(FOR HEIGHT CONTROL NO.7 TUBE) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| 48987A - RING, O(FOR HEIGHT CONTROL NO.7 TUBE) | ||||
| 90301-04006 |
JZS135 |
2 | ||
| Common parts | ||||
| 90464-00116 | ||||
| 90467-09073 | ||||
| 90467-13012 | ||||
| 90468-12012 | ||||
| 90949-01447 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91661-60612 | ||||
| 94180-40600 | ||||
