JZS135-AESUF (1991)
Toyota Crown
(9110- )JZS135

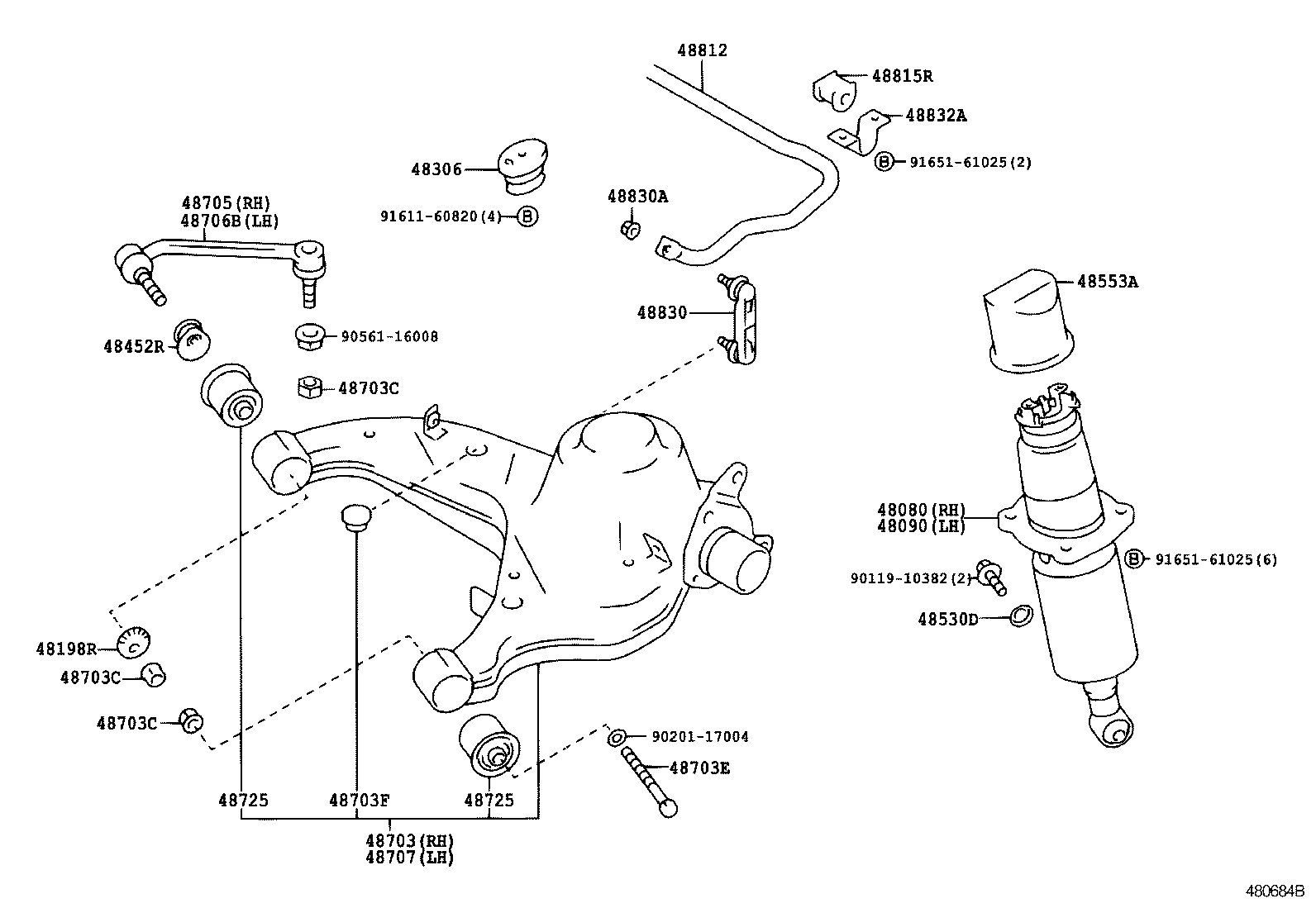

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER | ||||
| 48080-39025 |
JZS135 |
1 | ||
| 48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER | ||||
| 48090-39025 |
JZS135 |
1 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-30020 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-30100 |
JZS135 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-30020 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03019 |
JZS135 |
2 | ||
| 48553A - CAP, SHOCK ABSORBER | ||||
| 48553-30020 |
JZS135 |
2 | ||
| 48703 - ARM SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48703-30905 |
JZS135 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14025 |
GS131,JZS131,133,135,LS131 内側 |
4 | ||
| 90179-16011 |
GS131,JZS131,133,135,LS131 外側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14025 |
GS131,JZS131,133,135,LS131 内側 |
4 | ||
| 90179-16011 |
GS131,JZS131,133,135,LS131 外側 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14025 |
GS131,JZS131,133,135,LS131 内側 |
4 | ||
| 90179-16011 |
GS131,JZS131,133,135,LS131 外側 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90101-16017 |
GS131,JZS131,133,135,LS131 *16X1.5PX105−30 |
2 | ||
| 48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM) | ||||
| 47491-30050 |
GS131,JZS131,133,135,LS131 OD=22,H=12 |
2 | ||
| 90950-01258 |
GS131,JZS131,133,135,LS131 OD=22,H=8.5 |
10 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-30060 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-30030 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 48707 - ARM SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48707-30905 |
JZS135 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-30060 |
GS131,JZS131,133,135,LS131 内側 |
2 | ||
| 48725-30050 |
GS131,JZS131,133,135,LS131 外側 |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-30060 |
GS131,JZS131,133,135,LS131 内側 |
2 | ||
| 48725-30050 |
GS131,JZS131,133,135,LS131 外側 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30250 |
JZS135 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30300 |
JZS135 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-30020 |
JZS131,133,135,LS131 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
JZS131,133,135,LS131 |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-30040 |
JZS131,133,135,LS131 |
2 | ||
| Common parts | ||||
| 90119-10382 | ||||
| 90201-17004 | ||||
| 90561-16008 | ||||
| 91611-60820 | ||||
| 91651-61025 | ||||
