JZS135-AESUF (1991)
Toyota Crown

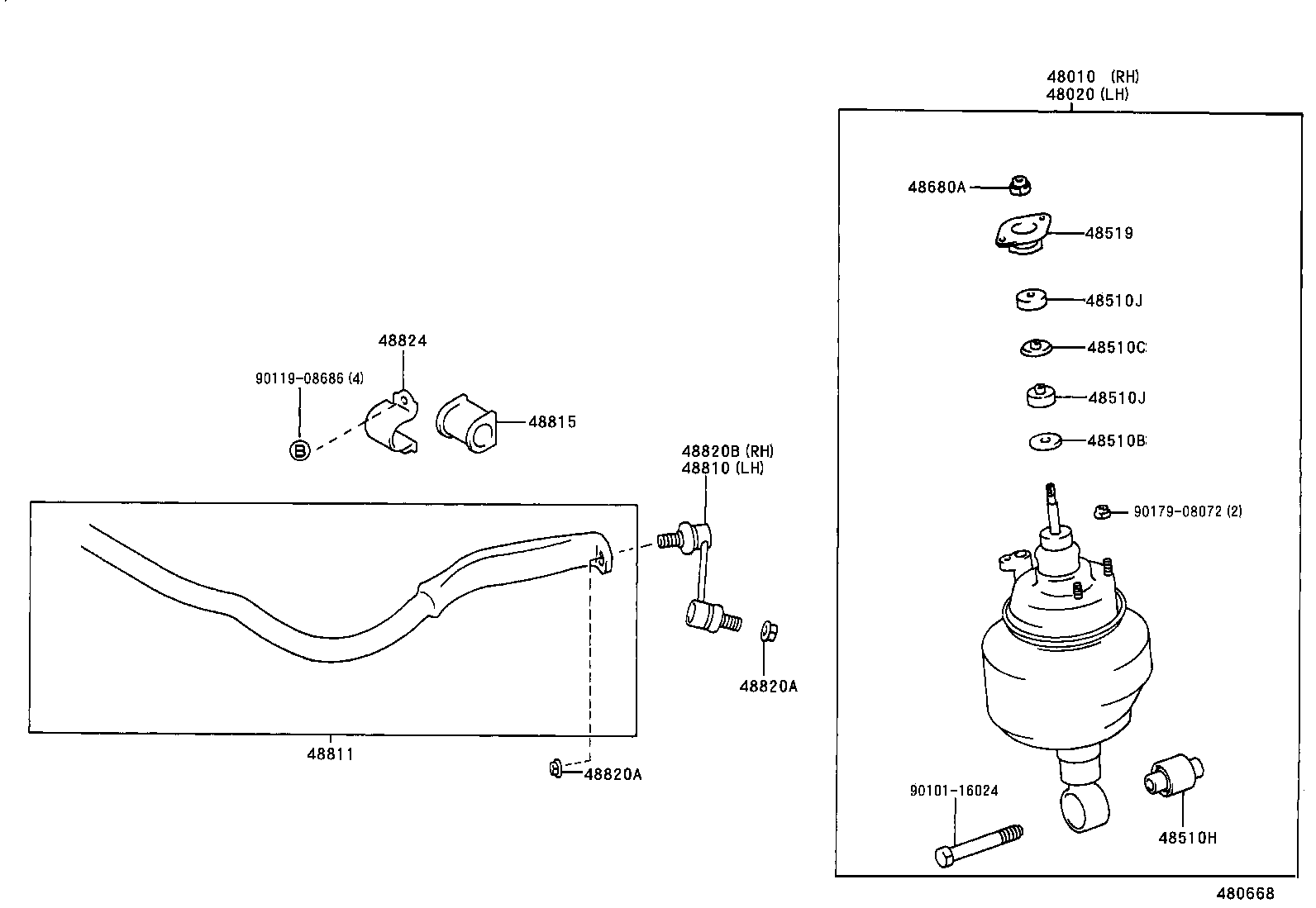

ILLUST NO. 1 OF 2(9110- )JZS135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-39025 |
JZS135 |
1 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48020-39025 |
JZS135 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02091 |
JZS135 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 90948-02092 |
GS13#,JZS13#,LS13# |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90389-16012 |
JZS135 |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01033 |
JZS135 下側 |
2 | ||
| 90948-01034 |
JZS135 上側 |
2 | ||
| 90948-01033 |
JZS135 下側 |
4 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01033 |
JZS135 下側 |
2 | ||
| 90948-01034 |
JZS135 上側 |
2 | ||
| 90948-01033 |
JZS135 下側 |
4 | ||
| 48519 - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48519-30020 |
JZS135 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90179-12117 |
JZS135 |
2 | ||
| 94187-11200 |
JZS135 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30030 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30360 |
JZS13# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30350 |
JZS13# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130,131,JZS13#,LS130,131..HTWC,TDEC,TWC |
4 | ||
| 90179-12047 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130,131,JZS13#,LS130,131..HTWC,TDEC,TWC |
4 | ||
| 90179-12047 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30050 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30070 |
GS13#,JZS13#,LS13# |
2 | ||
| 48824-30070 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| Common parts | ||||
| 90101-16024 | ||||
| 90119-08686 | ||||
| 90179-08072 | ||||
ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-30130 |
GS130,131,JZS13#,LS130,131..HTWC,TDEC,TWC |
1 | ||
| 48660-30130 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-30130 |
GS130,131,JZS13#,LS130,131..HTWC,TDEC,TWC |
1 | ||
| 48670-30130 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾌﾛﾝﾄ |
2 | ||
| 48674-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾘﾔ |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾌﾛﾝﾄ |
2 | ||
| 48674-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ﾘﾔ |
2 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18013 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| Common parts | ||||
| 90179-12051 | ||||
| 90179-18012 | ||||
