JZS135-AESUF (1991)
Toyota Crown
(9110-9609)GS130,JZS130,135,LS130,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10145 |
JZS135 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30330 |
JZS135 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30330 |
JZS135 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10146 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10146 |
GS13#,JZS13#,LS13# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30270 |
JZS135 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30270 |
JZS135 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30430 |
JZS135 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30430 |
JZS135 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10144 |
GS13#,JZS13#,LS13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30100 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10157 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30121 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30081 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47341-30030 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47341-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30030 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47343-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30210 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351-30210 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47351-30210 |
GS13#,JZS13#,LS13# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30090 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47352-30090 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47352-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30140 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 47371-30140 |
GS13#,JZS13#,LS13#..ATM |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30140 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 47371-30140 |
GS13#,JZS13#,LS13#..ATM |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47371-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06635 | ||||
| 90461-06041 | ||||
| 90468-08034 | ||||
| 90480-01555 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91611-B0640 | ||||
| 91651-60816 | ||||
| 91651-G0614 | ||||

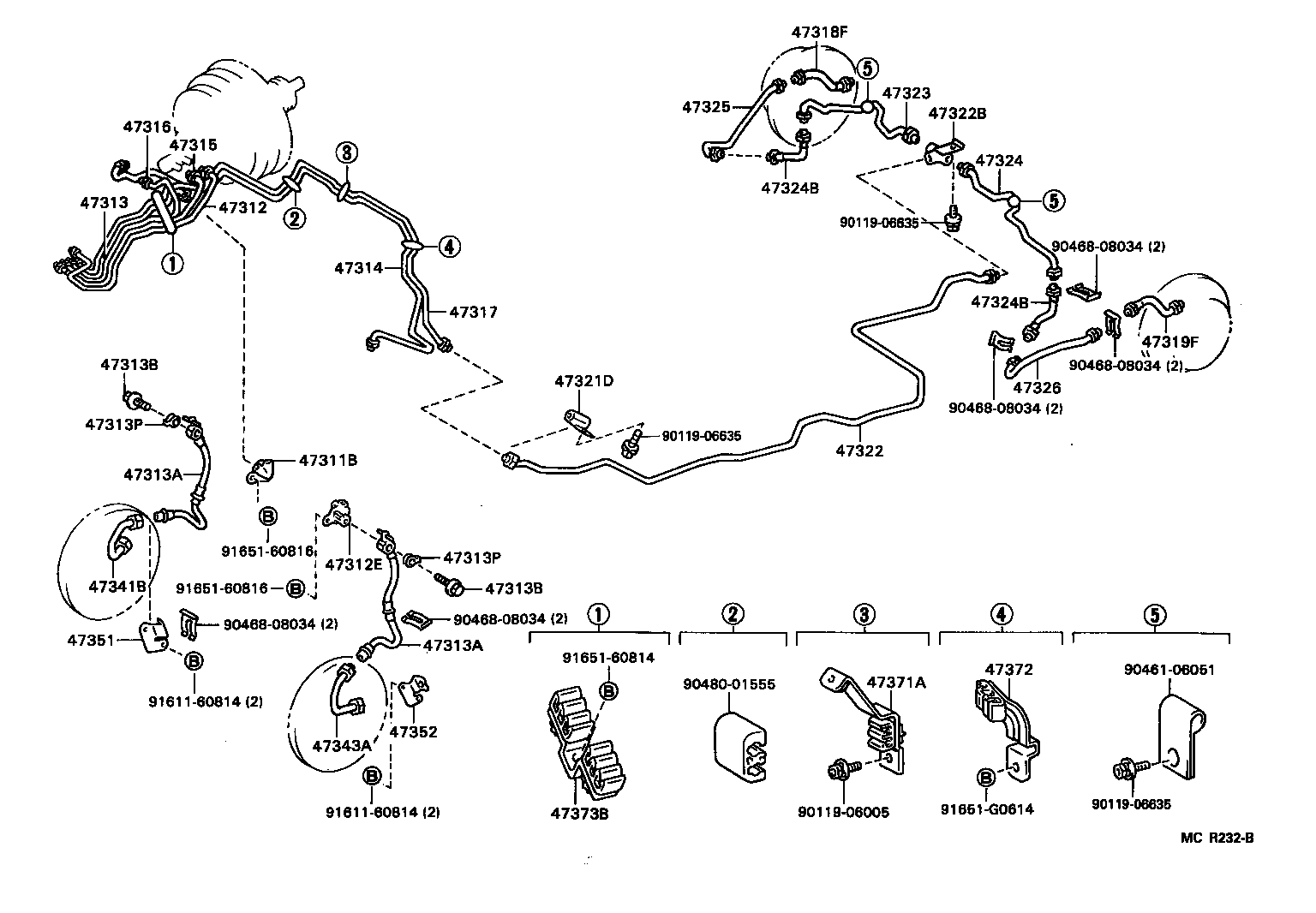

ILLUST NO. 1 OF 2(9110-9512)JZS131,133,135
ｱﾘ(ABS & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10145 |
JZS135 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30330 |
JZS135 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10146 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10146 |
GS13#,JZS13#,LS13# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30230 |
JZS13#,LS131 |
1 | ||
| 47313-30230 |
JZS135 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS13#,JZS13#,LS13# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13# |
2 | ||
| 90401-10015 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13# |
4 | ||
| 47389-30010 |
GS13#,JZS13#,LS13#,YS130 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30270 |
JZS135 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30430 |
JZS135 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-30220 |
JZS13#,LS131 ｱﾘ(ABS) |
1 | ||
| 47316-30240 |
JZS135 |
1 | ||
| 47316-30240 |
JZS135 |
1 | ||
| 47316-30240 |
JZS131,133,135 ｱﾘ(ABS & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-30140 |
JZS131,133,135 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-39956 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-39956 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90412-10144 |
GS13#,JZS13#,LS13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30100 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10157 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30121 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30081 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 96950-32156 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 96950-32156 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-30021 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-30021 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47341-30030 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47341-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30030 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47343-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 47343-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30210 |
GS13#,JZS13#,LS13# |
1 | ||
| 47351-30210 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47351-30210 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30090 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47352-30090 |
YS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 47352-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30140 |
GS13#,JZS13#,LS13#,YS130..ATM |
1 | ||
| 47371-30140 |
GS13#,JZS13#,LS13#..ATM |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 47371-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-30110 |
JZS13#,LS131 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06635 | ||||
| 90461-06051 | ||||
| 90468-08034 | ||||
| 90480-01555 | ||||
| 91611-60814 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 91651-G0614 | ||||
ILLUST NO. 2 OF 2(9110-9512)JZS13#
ｱﾘ(ABS & ﾄﾗｸｼｮﾝｺﾝﾄﾛｰﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30100 |
JZS13#,LS131 ｱﾘ(ABS) |
1 | ||
| 44510-30110 |
JZS135 |
1 | ||
| 44510-30110 |
JZS131,133,135 ｱﾘ(ABS & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 44510-30110 |
JZS135 |
1 | ||
| 44510A - HOSE, PRESSURE | ||||
| 90947-06001 |
JZS13# |
1 | ||
| 90947-06001 |
JZS131,133,135 |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-30040 |
JZS131,133,135 |
1 | ||
| 44551-30040 |
JZS135 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-30010 |
JZS135 |
1 | ||
| 44552-30010 |
JZS131,133,135 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30060 |
JZS135 |
1 | ||
| 44591-30080 |
JZS13#,LS131 |
1 | ||
| 44591-30060 |
JZS13#,LS131 |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-30030 |
JZS131,133,135 |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-30020 |
JZS131,133,135 |
1 | ||
| Common parts | ||||
| 90179-05003 | ||||
| 90179-08074 | ||||
| 90430-10074 | ||||
| 90467-16001 | ||||
| 90561-08002 | ||||
| 90949-01055 | ||||
| 91611-60610 | ||||
| 91651-60814 | ||||
| 91661-G0830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
