JZS135-AESUF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS13#

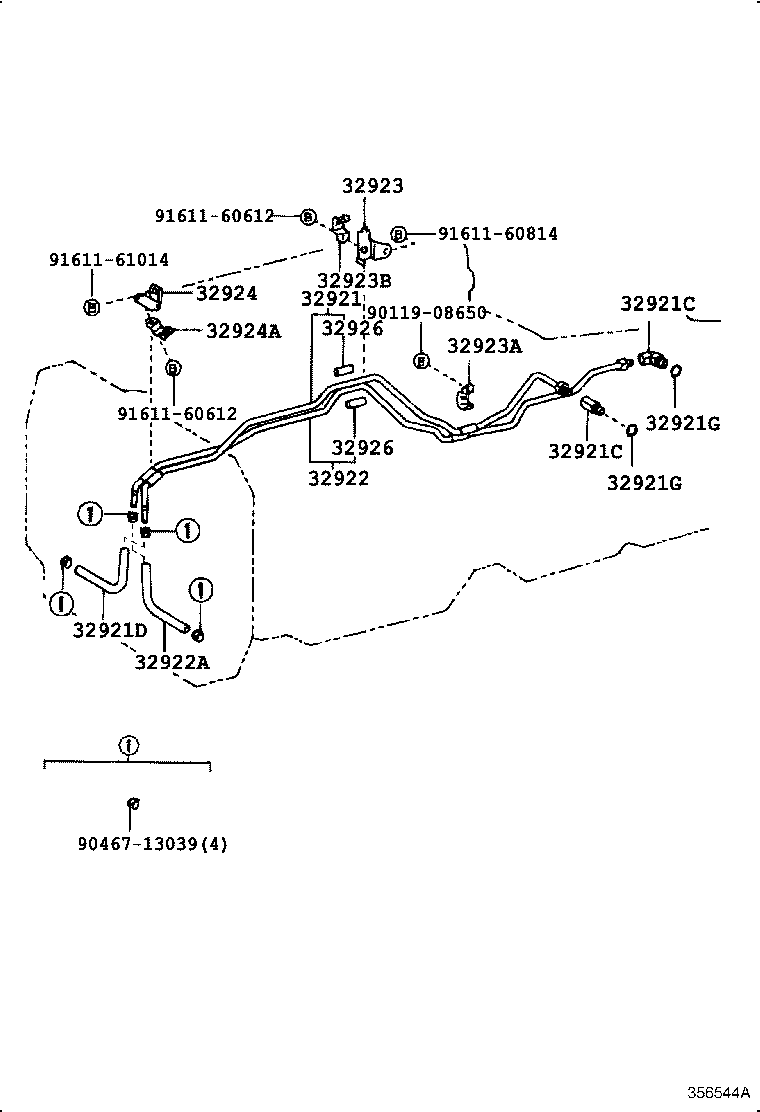

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923A 32923B 32924 32924A 32926 32926 9011908650 9046713039 9161160612 9161160612 9161160814 9161161014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30540

JZS133,135

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16029

JZS13#,LS130,131

ｲﾝﾚｯﾄ

 1
90407-16009

JZS13#,LS130,131

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16029

JZS13#,LS130,131

ｲﾝﾚｯﾄ

 1
90407-16009

JZS13#,LS130,131

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-30230

JZS133,135

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS13#,LS130,131

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS13#,LS130,131

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30540

JZS133,135

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-30110

JZS133,135

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924-30180

JZS13#

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-30140

JZS13#

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-22050

JZS13#

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-30160

JZS13#

 1
32923-30161

JZS13#

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-22050

JZS13#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

JZS13#

長さ=35,内径=10,ﾘﾔ

 4
32926-30030

JZS13#

長さ=35,内径=10,ﾘﾔ

 2
32926-30020

JZS13#

長さ=35,内径=10,FR & CTR

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

JZS13#

長さ=35,内径=10,ﾘﾔ

 4
32926-30030

JZS13#

長さ=35,内径=10,ﾘﾔ

 2
32926-30020

JZS13#

長さ=35,内径=10,FR & CTR

 4
Common parts
90119-08650
90467-13039
91611-60612
91611-60814
91611-61014
