JZS135-AEPUF (1991)
Toyota Crown

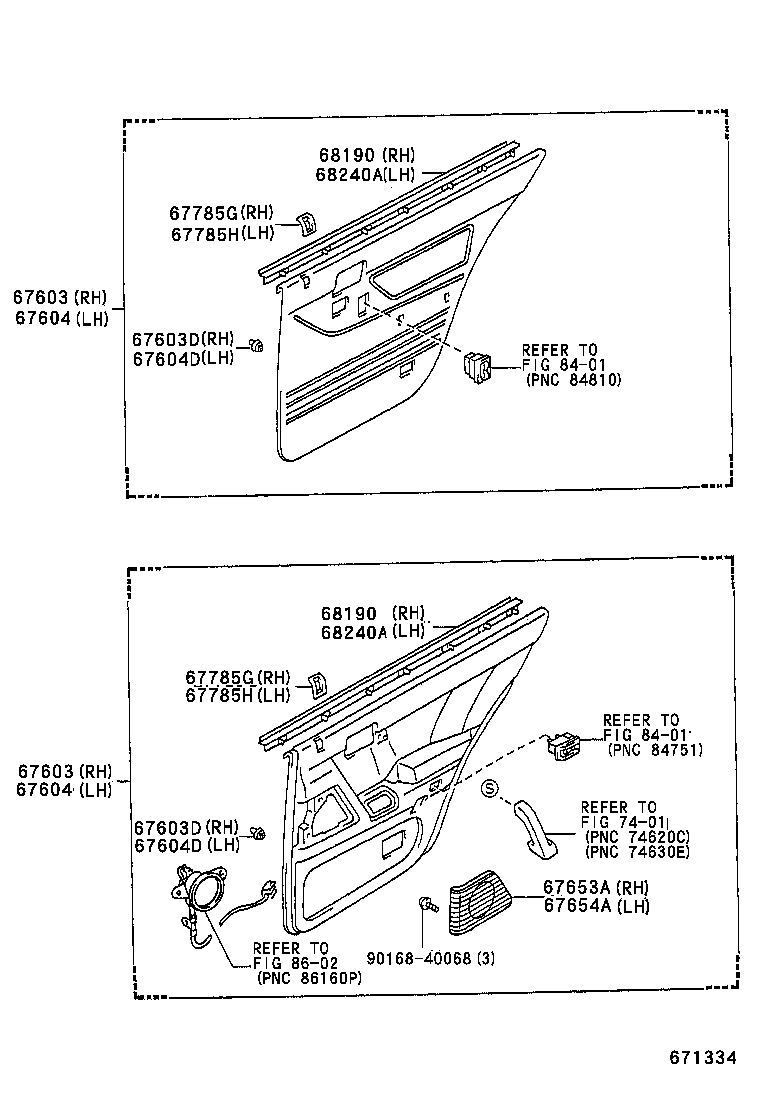

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A640B0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A640E0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67630-3A650B1 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A650E1 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67630-3A640J0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650J1 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67630-3A640B1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A640E1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67630-3A640J1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650J2 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650B2 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A650E2 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A640B0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A640E0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67630-3A650B1 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A650E1 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67630-3A640J0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650J1 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67630-3A640B1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A640E1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67630-3A640J1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650J2 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67630-3A650B2 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-3A650E2 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
10 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A650E0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67640-3A650J0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660B1 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A660J1 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660E1 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67640-3A650B0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650J1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660E2 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67640-3A660B2 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650B1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650E1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67640-3A660J2 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A650E0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67640-3A650J0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660B1 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A660J1 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660E1 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67640-3A650B0 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650J1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A660E2 |
JZS135 QUARTZ,TRIM4# |
1 | ||
| 67640-3A660B2 |
JZS135 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650B1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-3A650E1 |
JZS135 F-2 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
1 | ||
| 67640-3A660J2 |
JZS135 DK.BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
10 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
10 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67653-30010E0 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 67653-30010B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67653-30010J0 |
JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67653-30010E0 |
JZS13# ｱﾘ(CD ﾂｷ ｶｾﾂﾄ ｽﾃﾚｵ),QUARTZ,TRIM4# |
1 | ||
| 67653-30010J0 |
JZS13# ｱﾘ(CD ﾂｷ ｶｾﾂﾄ ｽﾃﾚｵ),DK.BLUE,TRIM8# |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67654-30010E0 |
JZS13#..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 67654-30010J0 |
JZS13#..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 67654-30010J0 |
JZS13# ｱﾘ(CD ﾂｷ ｶｾﾂﾄ ｽﾃﾚｵ),DK.BLUE,TRIM8# |
1 | ||
| 67654-30010B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67654-30010E0 |
JZS13# ｱﾘ(CD ﾂｷ ｶｾﾂﾄ ｽﾃﾚｵ),QUARTZ,TRIM4# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30090B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67785-30090J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30090B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67785-30090J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30090E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67785-30090J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 67785-30090B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30090E0 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 67785-30090J0 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 67785-30090B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 68190-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 68190-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 68240-30090 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 68240-30090 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| Common parts | ||||
| 90168-40068 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
| 8602 | ||||

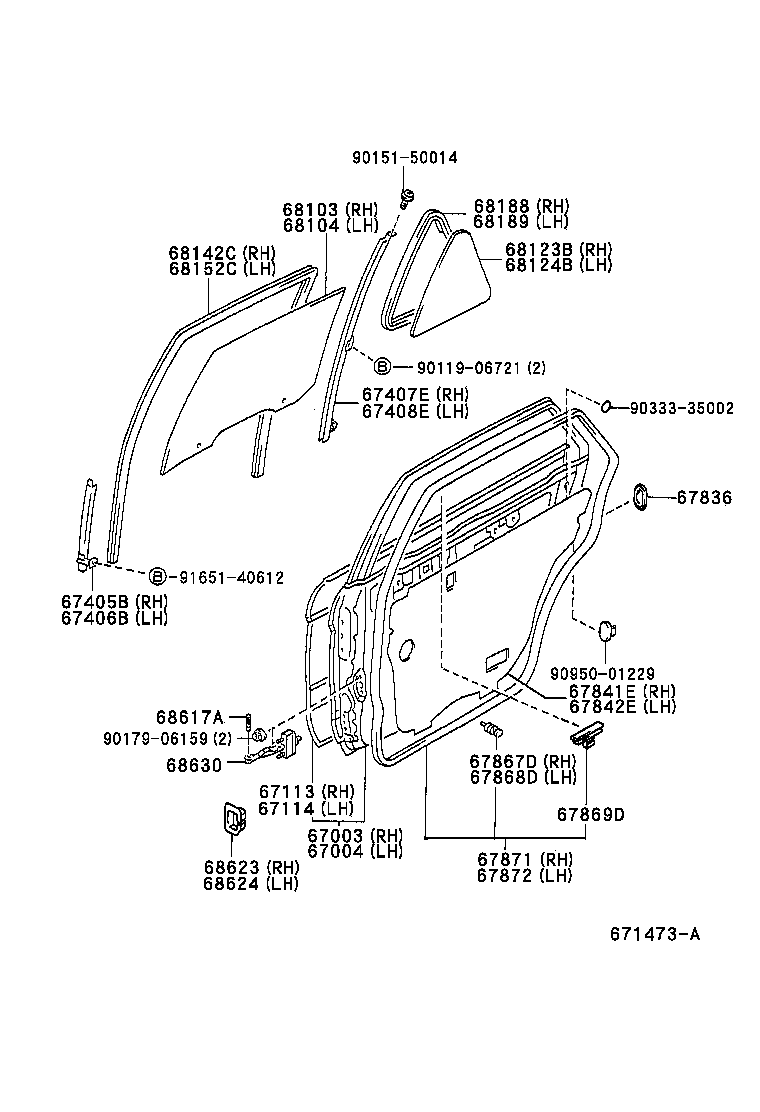

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30470 |
GS130,JZS131,133,135..ROY,ROYG |
1 | ||
| 67003-30471 |
GS130,JZS131,133,135..ROY,ROYG |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30470 |
GS130,JZS131,133,135..ROY,ROYG |
1 | ||
| 67004-30471 |
GS130,JZS131,133,135..ROY,ROYG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30310 |
GS130,JZS13#..ROY,ROYG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30320 |
GS130,JZS13#..ROY,ROYG |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 67405-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 67406-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30100 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 67407-30100 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30090 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 67408-30090 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30340 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30200 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
GS13#,JZS13#,LS13# |
20 | ||
| 67867-12150 |
GS13#,JZS13#,LS13#,YS130 |
20 | ||
| 67868-22020 |
GS13#,JZS13#,LS13#,YS130 |
20 | ||
| 67867-12150 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
GS13#,JZS13#,LS13#,YS130 |
20 | ||
| 67867-12150 |
GS13#,JZS13#,LS13#,YS130 |
20 | ||
| 67868-22020 |
GS130,131,JZS131,133,135,LS13#,YS130..SED |
20 | ||
| 67868-22020 |
GS13#,JZS13#,LS13# |
20 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-30040 |
GS130,131,JZS131,133,135,LS130,131..SED |
2 | ||
| 67869-30040 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30200 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 67871-30200 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30210 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 67872-30210 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30280 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68113-30480 |
JZS135 *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-30470 |
JZS135 *SERT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68113-30290 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30390 |
JZS135 *SERT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68114-30200 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) *TEM,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68114-30210 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-30400 |
JZS135 *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30270 |
JZS135 *SERT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68123-30320 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-30310 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68123-30280 |
JZS135 *SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30250 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68124-30220 |
JZS135 *SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-30210 |
JZS135 *SERT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68124-30260 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30122 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 68142-30122 |
GS13#,JZS13#,LS13# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30022 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 68152-30022 |
GS13#,JZS13#,LS13# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30100 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 68188-30100 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30080 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 68189-30080 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 68617-50010 |
GS13#,JZS13#,LS13# |
2 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68621-30010 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68622-30010 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68640-30010 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX 左側 |
1 | ||
| 68630-30100 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX 右側 |
1 | ||
| Common parts | ||||
| 90119-06721 | ||||
| 90151-50014 | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 90950-01229 | ||||
| 91651-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
