JZS133-AESQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

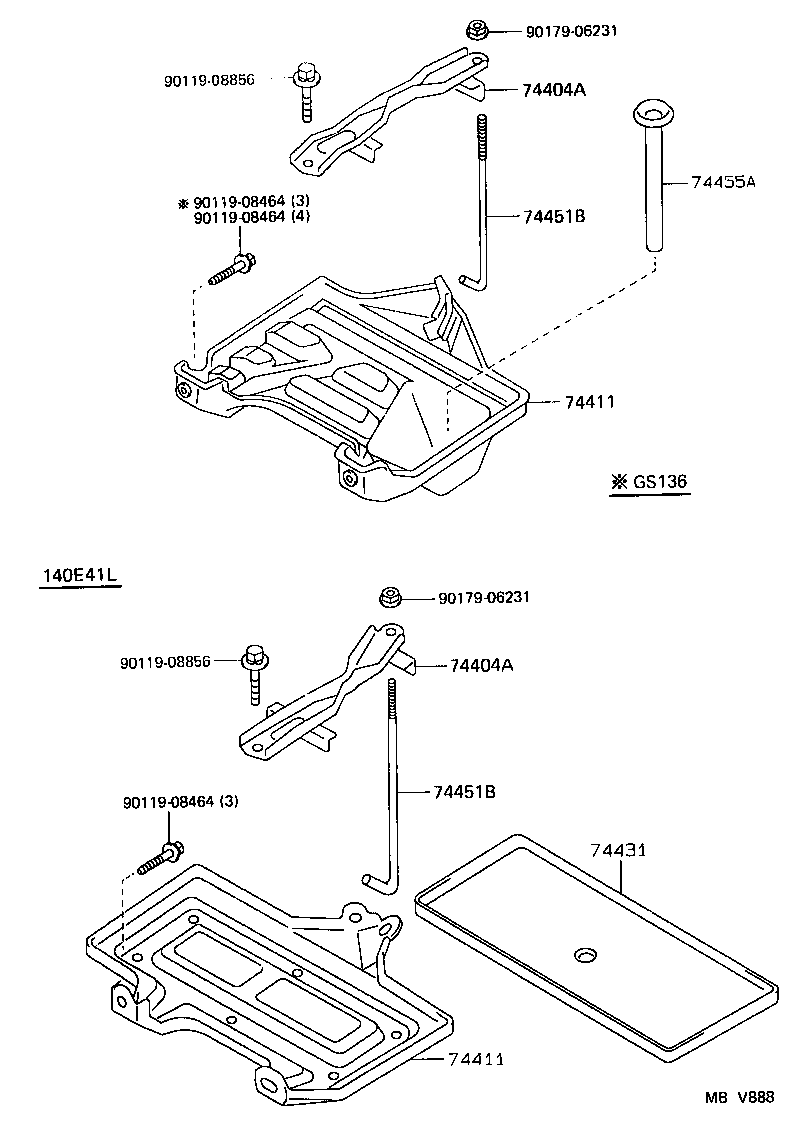

Click highlighted areas on diagram

diagram 74404A 74404A 74411 74411 74431 74451B 74451B 74455A 9011908464 9011908464 9011908464 9011908856 9011908856 9017906231 9017906231
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-30220

GS130,131,JZS13#,LS13#

 1
74404-30220

GS130,131,JZS13#,LS13#,YS130

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-30220

GS130,131,JZS13#,LS13#

 1
74404-30220

GS130,131,JZS13#,LS13#,YS130

 1
74411 - CARRIER, BATTERY
74431-30090

GS130,131,JZS13#,LS13#

 1
74431-30090

GS130,131,JZS13#,LS13#,YS130

 1
74411 - CARRIER, BATTERY
74431-30090

GS130,131,JZS13#,LS13#

 1
74431-30090

GS130,131,JZS13#,LS13#,YS130

 1
74451B - BOLT, BATTERY CLAMP
74451-30090

GS13#,JZS13#,LS13#,YS130

 1
74451-30090

GS13#,JZS13#,LS13#

 1
74451B - BOLT, BATTERY CLAMP
74451-30090

GS13#,JZS13#,LS13#,YS130

 1
74451-30090

GS13#,JZS13#,LS13#

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
74455-30020

YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
Common parts
90119-08464
90119-08856
90179-06231
