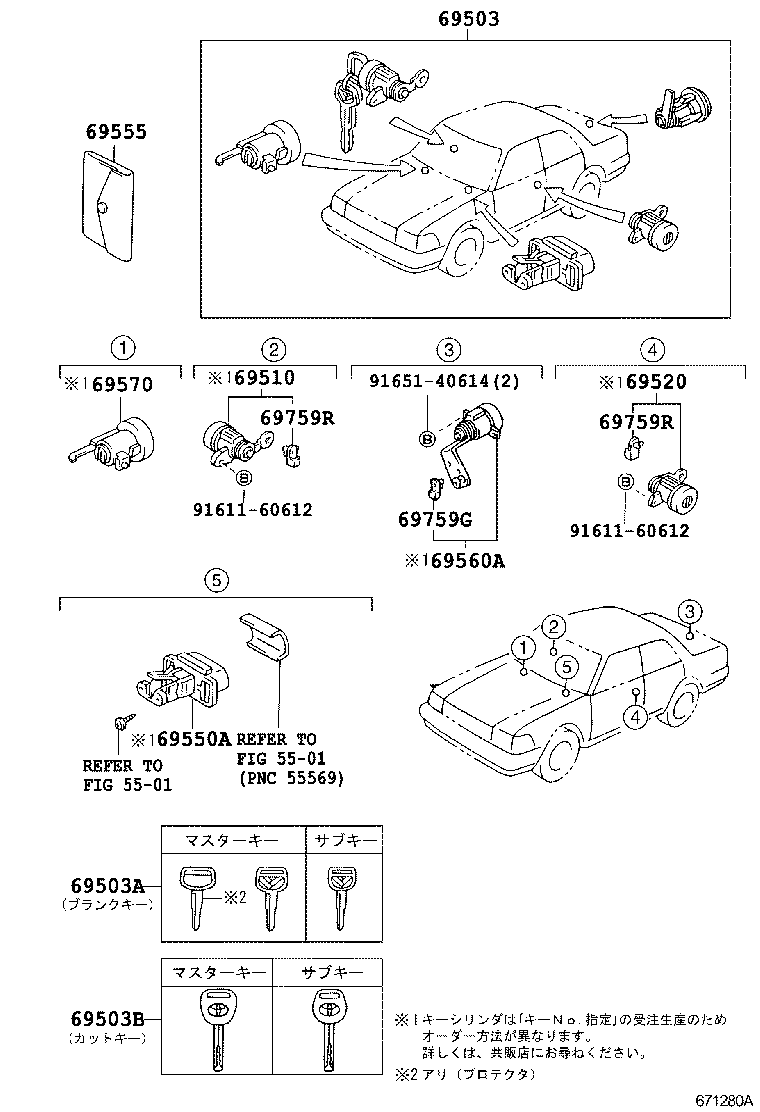

JZS133-AESQF (1991)
Toyota Crown
(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-30630 |
GS130,131,JZS131,133,LS131..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69516-24020 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) ｻﾌﾞｷｰ |
1 | ||
| 69515-24070 |
GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDEC,TWC) ﾏｽﾀｰｷｰ |
2 | ||
| 69515-30150 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69515-24070 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-30170 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-30150 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-30210 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-30170 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 69759-24090 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) ORANGE |
1 | ||
| 69759-22090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) PINK |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) ORANGE |
1 | ||
| 69759-22090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) PINK |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 5501 | ||||

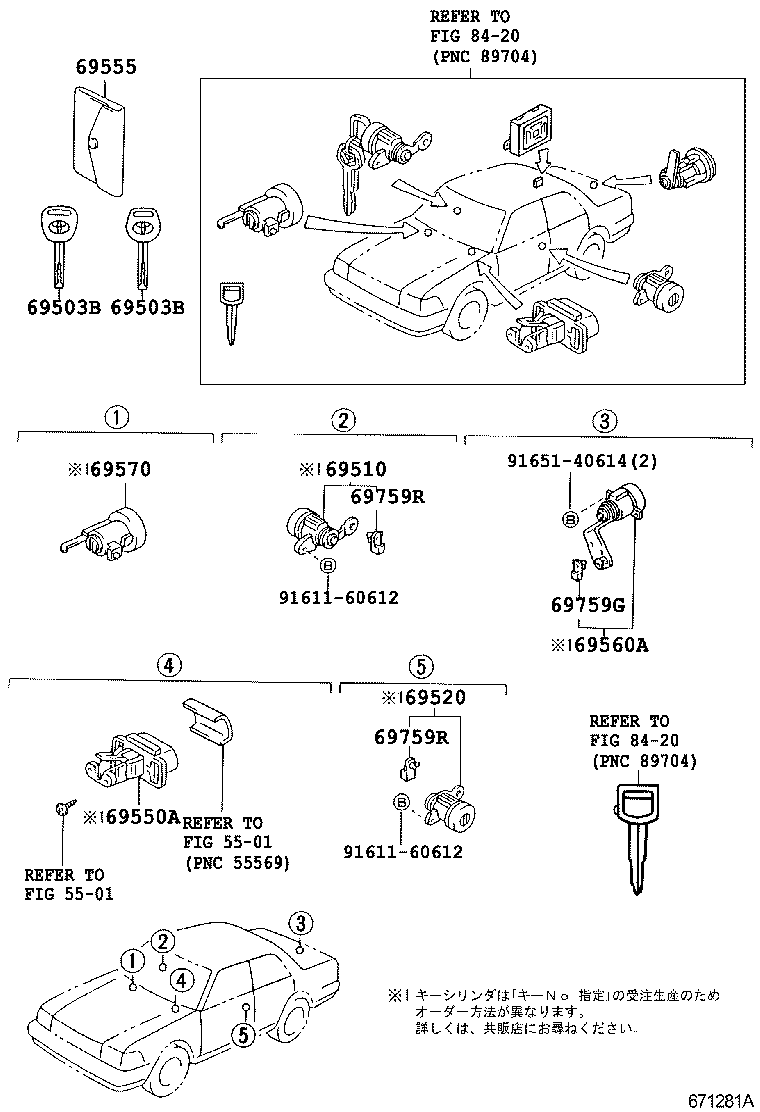

(9110- )JZS131,133,135..ROY,ROYG
ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503B - KEY, CUT | ||||
| 69516-24020 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) ｻﾌﾞｷｰ |
1 | ||
| 69515-24070 |
GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDEC,TWC) ﾏｽﾀｰｷｰ |
2 | ||
| 69515-30150 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69515-24070 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69516-24020 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) ｻﾌﾞｷｰ |
1 | ||
| 69515-24070 |
GS130,131,JZS130,131,133,LS130,131..(ROY,SALEX)..(HTWC,TDEC,TWC) ﾏｽﾀｰｷｰ |
2 | ||
| 69515-30150 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69515-24070 |
JZS131,133..ROY ﾏｽﾀｰｷｰ,ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-30170 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-30150 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-30210 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-30170 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 69759-24090 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) ORANGE |
1 | ||
| 69759-22090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) PINK |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) ORANGE |
1 | ||
| 69759-22090 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) PINK |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8420 | ||||
