JZS133-AEPQF (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )JZS13#

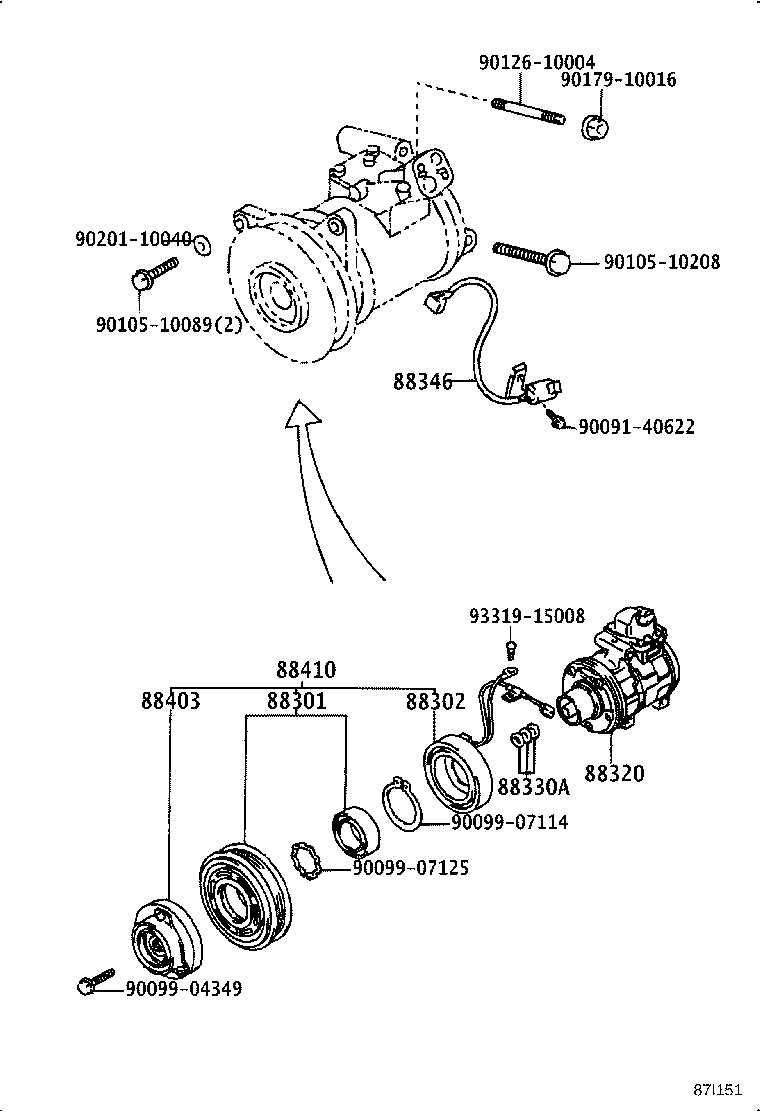

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30410 |
JZS13# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30540 |
JZS13# |
1 | ||
| 88411-3A010 |
JZS133,135 |
1 | ||
| 88411-30540 |
JZS133,135 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30641 |
JZS133,135 |
1 | ||
| 88320-30640 |
JZS133,135 |
1 | ||
| 88320-30651 |
JZS133,135 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GS13#,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-3A060 |
JZS133,135 |
1 | ||
| 88403-3A040 |
JZS133,135 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-30710 |
JZS133,135 |
1 | ||
| 88410-30670 |
JZS13# |
1 | ||
| 88410-3A100 |
JZS133,135 |
1 | ||
| Common parts | ||||
| 90091-40622 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-10089 | ||||
| 90105-10208 | ||||
| 90126-10004 | ||||
| 90179-10016 | ||||
| 90201-10040 | ||||
| 93319-15008 | ||||
