JZS133-AEPQF (1991)
Toyota Crown

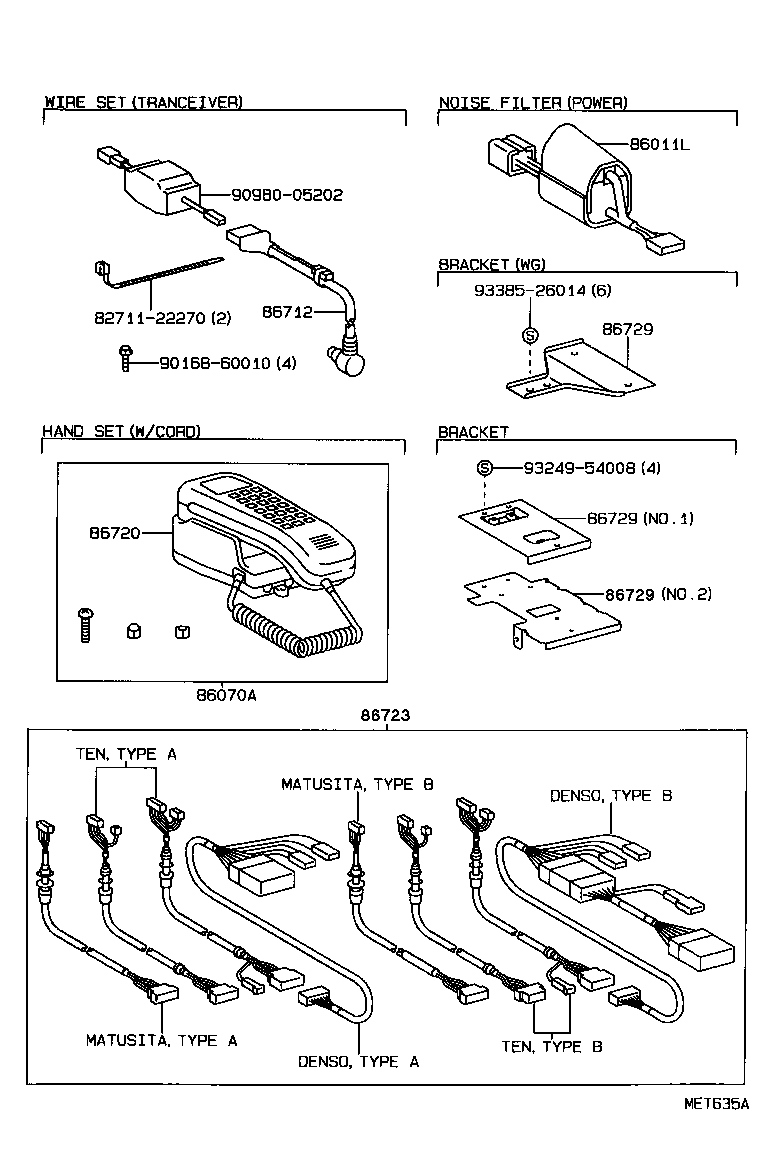

ILLUST NO. 1 OF 3(9110- )JZS13#..ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011L - FILTER, NOISE | ||||
| 90980-05280 |
JZS13#..ROY,ROYG |
1 | ||
| 90980-05203 |
JZS130..4FC..ROY;JZS131,133,135..ROY,ROYG |
1 | ||
| 90980-05280 |
JZS130..4FC..ROY;JZS131,133,135..ROY,ROYG |
1 | ||
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30150 |
JZS13#..ROY,ROYG HANDSET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HANDSET,TEN |
1 | ||
| 86070-30080 |
JZS131,133..4FC..ROY ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86070-30150 |
JZS13#..ROY,ROYG HAND SET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HAND SET,TEN |
1 | ||
| 86712 - WIRE, TELEPHONE | ||||
| 86712-30050 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-30090 |
JZS13#..ROY,ROYG HANDSET,TEN |
1 | ||
| 86720-30060 |
JZS13#..ROY,ROYG HANDSET,DENSO |
1 | ||
| 86720-30060 |
JZS13#..ROY,ROYG HAND SET,DENSO |
1 | ||
| 86720-30090 |
JZS13#..ROY,ROYG HAND SET,TEN |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30060 |
JZS13#..ROY,ROYG DENSO,TYPE B |
1 | ||
| 86723-30050 |
JZS13#..ROY,ROYG DENSO,TYPE A |
1 | ||
| 86723-40030 |
JZS13#..ROY,ROYG TEN,TYPE A |
1 | ||
| 86723-30090 |
JZS13#..ROY,ROYG TEN,TYPE B |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-30010 |
JZS13#..ROY,ROYG NO.1 |
1 | ||
| 86729-30020 |
JZS13#..ROY,ROYG NO.2 |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-30010 |
JZS13#..ROY,ROYG NO.1 |
1 | ||
| 86729-30020 |
JZS13#..ROY,ROYG NO.2 |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-30010 |
JZS13#..ROY,ROYG NO.1 |
1 | ||
| 86729-30020 |
JZS13#..ROY,ROYG NO.2 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90168-60010 | ||||
| 90980-05202 | ||||
| 93249-54008 | ||||
| 93385-26014 | ||||
ILLUST NO. 3 OF 3(9110- )JZS13#..ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30150 |
JZS13#..ROY,ROYG HANDSET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HANDSET,TEN |
1 | ||
| 86070-30080 |
JZS131,133..4FC..ROY ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86070-30150 |
JZS13#..ROY,ROYG HAND SET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HAND SET,TEN |
1 | ||
| 86710 - COMPUTER ASSY, TELEPHONE | ||||
| 86710-30100 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86710-30130 |
JZS131,133,135..4FC..(ROY,ROYG) |
1 | ||
| 86719 - BRACKET, TELEPHONE | ||||
| 86719-30030 |
JZS131,133,135..4FC..(ROY,ROYG) |
1 | ||
| 86726 - COVER, MOBILEPHONE | ||||
| 86726-30010 |
JZS13#..ROY,ROYG NO.1 |
1 | ||
| 86726-30050 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86726-30010 |
JZS13#..ROY,ROYG |
1 | ||
| 86726-30020 |
JZS13#..ROY,ROYG NO.2 |
1 | ||
| 86726-30030 |
JZS13#..ROY,ROYG NO.3 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30100 |
JZS131,133..4FC..ROY ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86730-30080 |
JZS13#..ROY,ROYG |
1 | ||
| 86750 - SWITCH ASSY, TELEPHONE | ||||
| 86750-30020 |
JZS131,133..4FC..ROY |
1 | ||
| Common parts | ||||
| 90159-50134 | ||||
| 90189-05020 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 3(9110- )JZS13#..ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30150 |
JZS13#..ROY,ROYG HANDSET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HANDSET,TEN |
1 | ||
| 86070-30080 |
JZS131,133..4FC..ROY ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86070-30150 |
JZS13#..ROY,ROYG HAND SET,DENSO |
1 | ||
| 86070-30170 |
JZS13#..ROY,ROYG HAND SET,TEN |
1 | ||
| 86712A - WIRE, TELEPHONE | ||||
| 86712-50040 |
JZS13#..ROY,ROYG |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-30090 |
JZS13#..ROY,ROYG HANDSET,TEN |
1 | ||
| 86720-30060 |
JZS13#..ROY,ROYG HANDSET,DENSO |
1 | ||
| 86720-30060 |
JZS13#..ROY,ROYG HAND SET,DENSO |
1 | ||
| 86720-30090 |
JZS13#..ROY,ROYG HAND SET,TEN |
1 | ||
| 86722 - CRADLE, MOBILEPHONE | ||||
| 86722-30010 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 86723A - WIRE, MOBILEPHONE | ||||
| 86723-50030 |
JZS13#..ROY,ROYG |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-50010 |
JZS13#..ROY,ROYG |
1 | ||
| 86726 - COVER, MOBILEPHONE | ||||
| 86726-30010 |
JZS13#..ROY,ROYG NO.1 |
1 | ||
| 86726-30050 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86726-30010 |
JZS13#..ROY,ROYG |
1 | ||
| 86726-30020 |
JZS13#..ROY,ROYG NO.2 |
1 | ||
| 86726-30030 |
JZS13#..ROY,ROYG NO.3 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30100 |
JZS131,133..4FC..ROY ｱﾘ(ｵﾝｾｲﾆﾝｼｷ ﾃﾞﾝﾜ & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86730-30080 |
JZS13#..ROY,ROYG |
1 | ||
