JZS133-AEPQF (1991)
Toyota Crown
ILLUST NO. 5 OF 8(9110- )
ｶｳﾙ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-30160 |
JZS13#,LS130,131 |
1 | ||
| 82671G - BLOCK, JUNCTION | ||||
| 82671-30100 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90986-01005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-30050 |
GS13#,JZS13#,LS13#,YS130..4FC |
1 | ||
| Common parts | ||||
| 90159-50240 | ||||
| 90179-06069 | ||||
| 91661-60616 | ||||
ILLUST NO. 8 OF 8(9110- )
ﾘﾔ ﾄﾞｱ & ﾌﾛｱ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80217 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 83320-80217 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
1 | ||
| 83320-80215 |
GS131,JZS131,133,135 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80217 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 83320-80217 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
1 | ||
| 83320-80215 |
GS131,JZS131,133,135 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-32060 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 84231-32060 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30130 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30130 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30130 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-30050 |
JZS131,133,135..ROY,ROYG |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-30050 |
JZS131,133,135..ROY,ROYG |
2 | ||
| Common parts | ||||
| 90119-06136 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14010 | ||||
| 93319-A4010 | ||||
| 93385-15012 | ||||
ILLUST NO. 2 OF 8(9110- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130 |
1 | ||
| 28300-16010 |
1GFE,1JZGE,2JZGE..GS13#,JZS13# |
1 | ||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130..ATM |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130 |
1 | ||
| 28300-16010 |
1GFE,1JZGE,2JZGE..GS13#,JZS13# |
1 | ||
| 28300-16010 |
1G#,1JZGE,2JZGE,3YPE..GS13#,JZS13#,YS130..ATM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
JZS13# 7.5A |
5 | ||
| 90982-07011 |
JZS13# 30A,緑 |
2 | ||
| 90982-09005 |
JZS13# 7.5A |
8 | ||
| 90982-09005 |
JZS13#,YS130 7.5A |
8 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
JZS13# 7.5A |
5 | ||
| 90982-07011 |
JZS13# 30A,緑 |
2 | ||
| 90982-09005 |
JZS13# 7.5A |
8 | ||
| 90982-09005 |
JZS13#,YS130 7.5A |
8 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 82616-12010 |
GS13#,JZS13#,LS13# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30480 |
JZS133 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC LOWER |
1 | ||
| 82662-30140 |
GS13#,JZS13#..HTWC,TWC UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30060 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC LOWER |
1 | ||
| 82662-30140 |
GS13#,JZS13#..HTWC,TWC UPPER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90987-04002 |
GS13#,JZS13#,LS13# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# |
1 | ||
| 90987-02010 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 90987-02009 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90987-02009 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
JZS13# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GS13#,JZS13#,LS13# |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
JZS13# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GS13#,JZS13#,LS13# |
1 | ||
| 86530-20070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS136..STD;GS130,131,JZS13#..ROY,ROYG,SALEX,SDX,STD |
1 | ||
| 90987-02004 |
GS13#,JZS13#,YS130..HTWC,LPEFI,TWC |
1 | ||
| 90987-02004 |
YS130;GS130..(SDX,STD)..HTWC;GS131,136,JZS13#..ROY,ROYG,SALEX,STD |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-02010 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) 5P |
1 | ||
| 90987-02009 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) 5P |
1 | ||
| 90987-02004 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) 4P |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30020 |
JZS133,135 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
JZS13#,YS130 |
1 | ||
| 89621-16020 |
JZS13# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
JZS13#,YS130 |
1 | ||
| 89621-16020 |
JZS13# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
JZS13#,YS130 |
1 | ||
| 89621-16020 |
JZS13# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30170 |
JZS13# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30170 |
JZS13# |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 90119-08063 | ||||
| 90119-08375 | ||||
| 90464-00073 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91661-40825 | ||||
| 91661-60814 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8419 | ||||
ILLUST NO. 6 OF 8(9110- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39695 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84112-30390 |
GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDEC,TWC) ｱﾘ(*80) |
1 | ||
| 84112-30390 |
GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TWC) ｱﾘ(*80--MAKER OPT) OR ｱﾘ(*80--DEALER OPT) |
1 | ||
| 84112-30410 |
JZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 84112-39505 |
JZS133..4FC ﾅｼ(*CRC & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30100 |
JZS133..4FC ﾅｼ(*CRC & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140-30160 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) ｱﾘ(*80) |
1 | ||
| 84140-30170 |
JZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX) |
1 | ||
| 84140-30090 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84140-30160 |
GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TWC) ｱﾘ(*80--MAKER OPT) OR ｱﾘ(*80--DEALER OPT) |
1 | ||
| 84140-30160 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3A230 |
JZS130,131,133..4FC..ROY ｱﾘ(*80) |
1 | ||
| 84310-3A240 |
JZS133..4FC |
1 | ||
| 84310-30670 |
JZS133..4FC ﾅｼ(*CRC & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-3A480 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84310-3A550 |
JZS133..4FC |
1 | ||
| 84310-3A240 |
JZS131,133..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84310-3A830 |
JZS133..4FC ｱﾘ(*80---DEALER OPT) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
JZS133..4FC;GS13#,JZS130,131,LS13#,YS130 |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-30140 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84315-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 84315-30090 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-30020 |
JZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX) ｱﾘ(*80) |
1 | ||
| 84329-30030 |
JZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX) |
1 | ||
| 84329-30020 |
JZS130..4FC..ROY;GS130,131,JZS131,133,LS131..4FC..(ROY,SALEX)..(HTWC,TDE,TWC) ｱﾘ(*80--MAKER OPT) OR ｱﾘ(*80--DEALER OPT) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30230 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# |
1 | ||
| 84450-30230 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 84450-30210 |
GS13#,JZS130,131,133,LS13#..4FC ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30310 |
JZS133..4FC |
1 | ||
| 84652-30220 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84652-30210 |
JZS133..4FC ﾅｼ(*CRC & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84652-30290 |
GS130,JZS130,131,133..4FC..ROY ｱﾘ(*80) |
1 | ||
| 84652-30290 |
JZS130,131,133..4FC..ROY ｱﾘ(*80--MAKER OPT) |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-30050 |
GS13#,JZS13#,LS13#,YS130..4FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-30010 |
GS13#,JZS13#,LS13#,YS130..4FC |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-30030 |
GS13#,JZS13#,LS13#,YS130..4FC |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-30050 |
GS13#,JZS13#,LS13#,YS130..4FC |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-30050 |
GS13#,JZS13#,LS13#..4FC |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 90463-12570 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93381-15016 | ||||
ILLUST NO. 3 OF 8(9110- )GS136 ; (9110- )GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-30180 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 82285C - WIRE, ILLUMINATION, NO.2 | ||||
| 82285-30020 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30340 |
JZS131,133..4FC..ROY ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84091-30460 |
JZS130,131,133..ROY |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10090 |
JZS131,133,135..4FC..(ROY,ROYG) |
3 | ||
| 84999-10090 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
3 | ||
| 84999-10090 |
GS130..WG..SALEX;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG) |
2 | ||
| 84091C - CAP, SATELLITE SWITCH | ||||
| 84998-10050 |
GS130..WG..SALEX;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG) |
2 | ||
| 84998-10050 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
3 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30040 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 84242B - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30221 |
GS13#,JZS13#,LS13#..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDE,TDEC,TWC) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10420 |
GS13#,JZS13#,LS13#..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDE,TDEC,TWC) 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-30060B0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 84656-30070B0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 84656-30070J0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ),DK.BLUE,TRIM8# |
1 | ||
| 84656-30060J0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),DK.BLUE,TRIM8# |
1 | ||
| 84656-30080J0 |
JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),DK.BLUE,TRIM8# |
1 | ||
| 84656-30080B0 |
JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 84656-30060E0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),DK.ROSE,TRIM4# |
1 | ||
| 84656-30070B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 84656-30070E0 |
JZS131,133,135,LS131 DK.ROSE,TRIM4# |
1 | ||
| 84656-30080E0 |
JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),DK.ROSE,TRIM4# |
1 | ||
| 84656-30070J0 |
JZS131,133,135,LS131 DK.BLUE,TRIM8# |
1 | ||
| 84656-30070E0 |
JZS131,133..ROY ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ),DK.ROSE,TRIM4# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-30020 |
GS130..WG..SALEX;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG) |
1 | ||
| 84763-30020 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30130 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-30290 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30090B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1#,FRONT DOOR RH |
1 | ||
| 84840-30090E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4#,FRONT DOOR RH |
1 | ||
| 84840-30060 |
GS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) GROVE BOX |
1 | ||
| 84840-30090J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8#,FRONT DOOR RH |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30090B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1#,FRONT DOOR RH |
1 | ||
| 84840-30090E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4#,FRONT DOOR RH |
1 | ||
| 84840-30060 |
GS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) GROVE BOX |
1 | ||
| 84840-30090J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8#,FRONT DOOR RH |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30090B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1#,FRONT DOOR RH |
1 | ||
| 84840-30090E0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4#,FRONT DOOR RH |
1 | ||
| 84840-30060 |
GS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) GROVE BOX |
1 | ||
| 84840-30090J0 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.BLUE,TRIM8#,FRONT DOOR RH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30091 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 84870-30101 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾄﾞｱﾐﾗ-) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30091 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 84870-30101 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾄﾞｱﾐﾗ-) |
1 | ||
| 84923B - BULB(FOR REAR POWER SEAT SWITCH) | ||||
| 84999-10130 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 84923C - SWITCH, REAR POWER SEAT RETURN | ||||
| 84923-30061 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS13#,JZS13#,LS13# |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85500-17040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85513-12020 |
GS13#,JZS13#,LS13# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30020 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX FRONT,NO.1 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX FRONT,NO.2 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX FRONT,NO.1 |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX FRONT,NO.2 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30020 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX FRONT,NO.1 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX FRONT,NO.2 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX FRONT,NO.1 |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX FRONT,NO.2 |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX ﾌﾛﾝﾄ,NO.1 |
1 | ||
| Common parts | ||||
| 84587-30010 | ||||
| 90468-05014 | ||||
| 93540-14012 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8411 | ||||
| 8420 | ||||

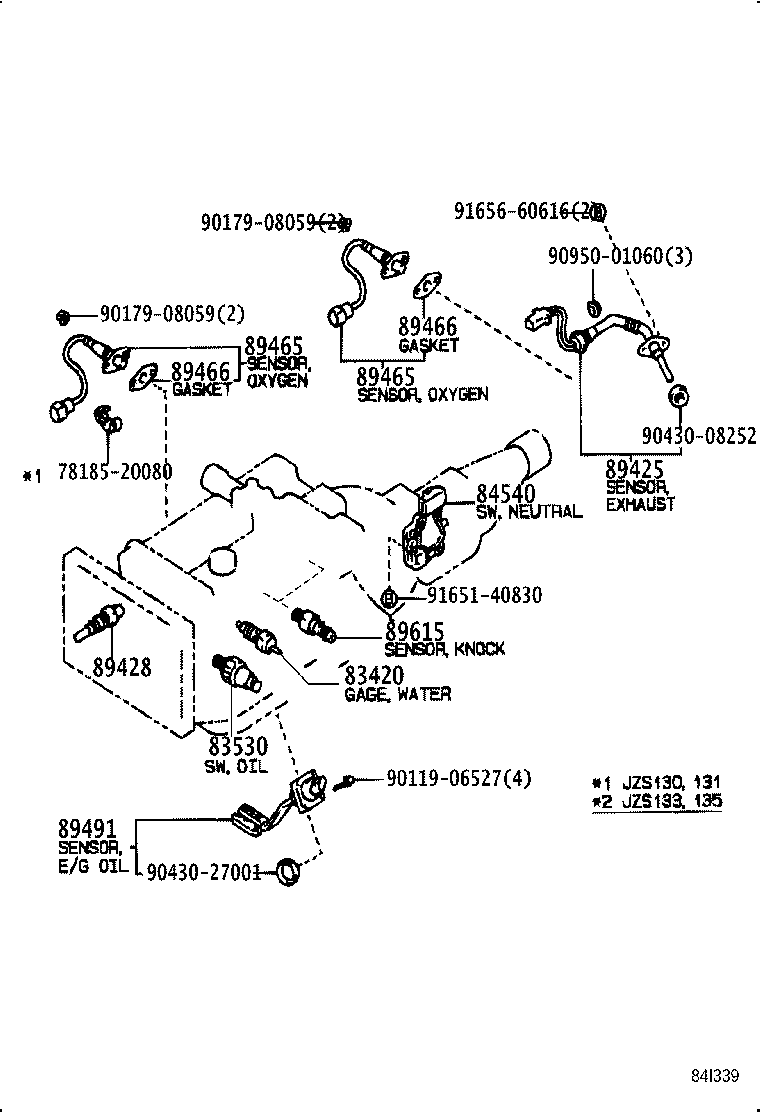

ILLUST NO. 1 OF 8(9110- )JZS13#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS131,JZS130,131;GS130,136,JZS133,135,YS130..DLX,DLXA,ROY,ROYG,SDX,STD |
1 | ||
| 83420-20020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 83420-20020 |
GS13#,JZS13#,LS13# |
1 | ||
| 83420-16040 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC DENSO |
1 | ||
| 83420-20030 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC YAZAKI |
1 | ||
| 83420-16040 |
GS13#,JZS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDE,TWC DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
GS13#,JZS13# DENSO |
1 | ||
| 83530-30080 |
JZS13# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30270 |
JZS13#,LS130,131 東海理化 |
1 | ||
| 84540-30280 |
JZS13#,LS130,131 MATSUSHITA |
1 | ||
| 84540-30270 |
JZS13#,LS130,131 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39405 |
GS13#,JZS13# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZS13# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39555 |
JZS133,135 REAR |
1 | ||
| 89465-39565 |
JZS133,135 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39555 |
JZS133,135 REAR |
1 | ||
| 89465-39565 |
JZS133,135 FRONT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZS133,135 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZS133,135 |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30020 |
JZS13# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
JZS13# MATSUSHITA |
2 | ||
| 89615-22040 |
JZS13# DENSO |
2 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 90119-06527 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-27001 | ||||
| 90950-01060 | ||||
| 91651-40830 | ||||
| 91656-60616 | ||||
ILLUST NO. 4 OF 8(9110- )
ｶｳﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC |
1 | ||
| 81980-12070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC |
1 | ||
| 81980-12070 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS13#,JZS13#,LS13# 20A,黄 |
2 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13# 15A |
7 | ||
| 90982-09005 |
JZS133..4FC 7.5A,ﾎﾝｺﾝ ｼﾖｳ |
7 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,YS130 15A |
7 | ||
| 90982-09005 |
JZS13# 7.5A |
5 | ||
| 90982-07011 |
JZS13# 30A,緑 |
2 | ||
| 90982-09005 |
JZS13# 7.5A |
8 | ||
| 90982-09005 |
JZS13#,YS130 7.5A |
8 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,YS130 20A,黄 |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30080 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 82641-30180 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GS13#,JZS13#,LS13# 30A |
2 | ||
| 82650-20011 |
GS13#,JZS13#,LS13#,YS130 30A |
2 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
JZS133,135..4FC ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84340-32110 |
JZS133,135 MATSUSHITA |
1 | ||
| 84340-32090 |
JZS133,135..4FC ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),MATSUSHITA |
1 | ||
| 84340-32110 |
JZS133,135 |
1 | ||
| 85900 - RELAY ASSY, CONTROL UNIT | ||||
| 85900-30200 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85900-30200 |
JZS133..4FC ﾎﾝｺﾝ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) OR ｼﾝｶﾞﾎﾟ-ﾙ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85900-30250 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85900-30260 |
JZS131,133,135..4FC..(ROY,ROYG) |
1 | ||
| 85900-30261 |
JZS131,133,135..4FC..(ROY,ROYG) |
1 | ||
| 85900-30251 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02008 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 90987-02008 |
YS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02008 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02008 |
GS13#,JZS13#,LS13# |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02008 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 90987-02008 |
YS130;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30160 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85940-30170 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ & ｱﾘ(ﾄﾞｱ ﾘﾓｺﾝ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 85940-30170 |
JZS133..4FC ﾎﾝｺﾝ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) OR ｼﾝｶﾞﾎﾟ-ﾙ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30160 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85940-30170 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ & ｱﾘ(ﾄﾞｱ ﾘﾓｺﾝ ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 85940-30170 |
JZS133..4FC ﾎﾝｺﾝ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) OR ｼﾝｶﾞﾎﾟ-ﾙ ｽﾍﾟﾂｸ & ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-30050 |
GS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-30320 |
JZS130..ROY;GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC) |
1 | ||
| 85980-30321 |
JZS130..ROY;GS130,131,JZS131,133,135,LS131..SED..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 80590-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-30250 |
GS13#,JZS13#,LS13#,YS130 NO.1 J/B UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,YS130 NO.1 J/B LOWER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13# NO.1 J/B LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13# NO.1 J/B UPPER |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-30250 |
GS13#,JZS13#,LS13#,YS130 NO.1 J/B UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,YS130 NO.1 J/B LOWER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13# NO.1 J/B LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13# NO.1 J/B UPPER |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-30281 |
GS13#,JZS13#,LS13# |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-30040 |
JZS133..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳﾄﾞｱﾐﾗ-) |
1 | ||
| 87989-30040 |
GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 88291A - BRACKET, SPEED CONTROL, A | ||||
| 88291-30070 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS136..STD;GS130,131,JZS13#..ROY,ROYG,SALEX,SDX,STD |
1 | ||
| 90987-02004 |
GS13#,JZS13#,YS130..HTWC,LPEFI,TWC |
1 | ||
| 90987-02004 |
YS130;GS130..(SDX,STD)..HTWC;GS131,136,JZS13#..ROY,ROYG,SALEX,STD |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-30080 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 89230-30140 |
GS13#,JZS130,131,133,LS13#..4FC,5F |
1 | ||
| 89230-30140 |
GS13#,JZS130,131,133,LS13#..4FC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30390 |
JZS133,135 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06061 | ||||
| 90119-06120 | ||||
| 91621-40620 | ||||
| 91632-60612 | ||||
| 91635-60616 | ||||
| 91651-60618 | ||||
| 93567-55014 | ||||
ILLUST NO. 7 OF 8(9110- )
ﾙ-ﾌ,ﾄﾞｱ & ﾌﾛﾝﾄｼ-ﾄ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-30070 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-30070 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GS13#,JZS13#,LS13# |
2 | ||
| 84231-32040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GS13#,JZS13#,LS13# |
2 | ||
| 84231-32040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13# |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33030 |
GS130,131,JZS13#,LS130,131..ATM |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30180B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 84920-30180J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8# |
1 | ||
| 84920-30180E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4# |
1 | ||
| 84920E - SWITCH ASSY, POWER SEAT FRONT HEADREST | ||||
| 84920-30150E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4# |
1 | ||
| 84920-30150B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1# |
1 | ||
| 84920-30150J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24010J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24010J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24030J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24030B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24030B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24030E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24030J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24010J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24010J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24010J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24030J0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24030B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24030B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24010B0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24010E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24030E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24030E0 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR F-1 ﾊﾟﾂｹ-ｼﾞ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921-24030J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24010J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24020B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24020E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24050B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24020J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24050J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24050E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24020B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-24020E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,RECLINING |
1 | ||
| 84921-24050B0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-24020J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,RECLINING |
1 | ||
| 84921-24050J0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,DK.BLUE,TRIM8#,SLIDE |
1 | ||
| 84921-24050E0 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,QUARTZ,TRIM4#,SLIDE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30240 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
1 | ||
| 84922-30240 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 84922-30150 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30160 |
JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30040 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-30430 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-30430 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-30430 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85500H - CAP, CIGARETTE LIGHTER BULB, REAR | ||||
| 84998-10550 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85500J - BULB, CIGARETTE LIGHTER, REAR | ||||
| 84999-10250 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85500J - BULB, CIGARETTE LIGHTER, REAR | ||||
| 84999-10250 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-12020 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-12020 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85533A - LENS, CIGARETTE LIGHTER INDICATOR, REAR | ||||
| 85533-30020 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85533A - LENS, CIGARETTE LIGHTER INDICATOR, REAR | ||||
| 85533-30020 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 89641 - SENSOR, MAGNETIC FIELD | ||||
| 89641-30080 |
JZS131,133,135..4FC..(ROY,ROYG) |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-40159 | ||||
| 90168-40043 | ||||
| 90168-40079 | ||||
| 90168-60014 | ||||
| 90189-04118 | ||||
| 90189-06018 | ||||
| 93315-14014 | ||||
| 93530-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
