Toyota Crown JZS133 WIRING & CLAMP

JZS133-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

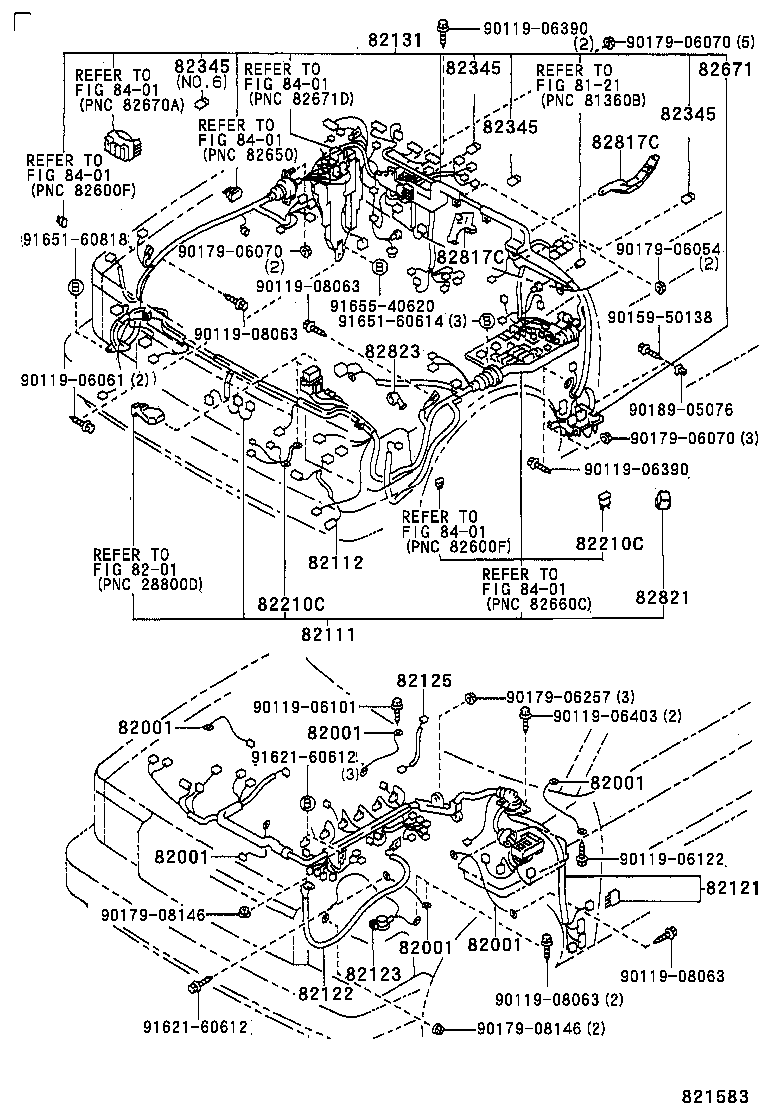

ILLUST NO. 1 OF 8(9110- )JZS13#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07338	JZS13# E/G(HEAD)	10/1991 - 08/1993	1
90980-07343	JZS13# T/M-FRAME	10/1991 - 08/1993	1
90980-07308	JZS13# SURGE TANK	10/1991 - 08/1993	1
90980-07358	JZS13# ALT	10/1991 - 12/2999	1
90980-07343	JZS133,135 T/M-DASH	08/1993 - 08/1995	1
90980-07356	JZS133,135 T/M-FROOL	10/1991 - 08/1993	1
90980-07308	JZS13# E/G-BODY	08/1993 - 12/2999	1
90980-07356	JZS13# T/M-FLOOR	08/1993 - 12/2999	1
90980-07338	JZS13# E/G-DASH	08/1993 - 12/2999	1
90980-07357	JZS13# IGNITER	10/1991 - 12/2999	1
90980-07343	JZS13# T/M-FRAME	08/1995 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-3A610	JZS133 ｱﾘ(*66)	10/1991 - 08/1993	1
82111-3A620	JZS133 ｱﾘ(66 & TRC)	10/1991 - 08/1993	1
82111-3A600	JZS133	10/1991 - 08/1993	1
82111-3A601	JZS133	08/1993 - 12/1995	1
82111-3A611	JZS133 ｱﾘ(*66)	08/1993 - 12/1995	1
82111-3A621	JZS133 ｱﾘ(66 & TRC)	08/1993 - 12/1995	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-30100	JZS13#	10/1991 - 12/2999	1
82121 - WIRE, ENGINE
82121-30580	JZS133 ｱﾘ(*TRC)	10/1991 - 11/1992	1
82121-30570	JZS133	10/1991 - 11/1992	1
82121-30571	JZS133	11/1992 - 08/1993	1
82121-30581	JZS133 ｱﾘ(*TRC)	11/1992 - 08/1993	1
82121-30782	JZS133 ｱﾘ(*TRC)	08/1993 - 11/1993	1
82121-30773	JZS133	11/1993 - 04/1995	1
82121-30772	JZS133	08/1993 - 11/1993	1
82121-30774	JZS133	04/1995 - 12/1995	1
82121-30783	JZS133 ｱﾘ(*TRC)	11/1993 - 04/1995	1
82121-30784	JZS133 ｱﾘ(*TRC)	04/1995 - 12/1995	1
82122 - WIRE, ENGINE, NO.2
82122-30380	JZS133,135	10/1991 - 08/1993	1
82122-30381	JZS133,135	08/1993 - 12/1995	1
82123 - WIRE, ENGINE, NO.3
82123-30170	GS130,131,JZS13#	10/1991 - 12/2999	1
82131 - WIRE, COWL
82131-31300	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 04/1992	1
82131-31301	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	04/1992 - 10/1992	1
82131-3K310	JZS133..4FC ｱﾘ(TRC) OR ｱﾘ(57)	10/1991 - 08/1993	1
82131-3K320	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ & 57) OR ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ & TRC) OR ｱﾘ(TRC & ﾏﾙﾁﾋﾞｼﾞﾖﾝ & 57)	10/1991 - 08/1993	1
82131-3K300	JZS133..4FC	10/1991 - 08/1993	1
82131-3K330	JZS133..4FC ｱﾘ(80) OR ｱﾘ(80 & TRC) OR ｱﾘ(80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(57 & 80);ｱﾘ(TRC & 80 &ﾏﾙﾁﾋﾞｼﾞﾖﾝ)	10/1991 - 08/1993	1
82131-3K301	JZS133	08/1993 - 12/1995	1
82131-3K311	JZS133 ｱﾘ(*TRC)	08/1993 - 12/1995	1
82131-3K321	JZS133..4FC ｱﾘ(*TRC & ﾏﾙﾁﾋﾞｼﾞﾖﾝ)	08/1993 - 12/1995	1
82131-3U320	JZS133..4FC ｱﾘ(*80)	08/1993 - 12/1995	1
82131-3K331	JZS133..4FC ｱﾘ(TRC & 80) OR ｱﾘ(TRC & 80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ)	08/1993 - 12/1995	1
82131-3U310	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ)	08/1993 - 12/1995	1
82210C - FUSIBLE LINK
90982-08188	GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ	10/1991 - 12/1991	1
90982-08169	GS13#,JZS13#,LS13# 長さ=110,1.0Y	10/1991 - 12/1991	1
90982-08223	GS13#,JZS13# 30A,ｵｽ端子,ﾋﾟﾝｸ	10/1991 - 12/1991	1
90982-08257	GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑	10/1991 - 12/1991	1
90982-08189	JZS130,131,133,LS131 40A,ﾒｽ端子,緑,ｱﾘ(*66)	10/1991 - 12/1995	1
90982-08246	GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青	10/1991 - 08/1993	1
90982-08202	JZS130,131,133,LS131 60A,ｵｽ端子,黄,ｱﾘ(*66)	10/1991 - 12/1995	1
90982-08246	GS130,131,JZS13#..HTWC,TWC 100A,ｵｽ端子,青	08/1993 - 12/1995	1
90982-08188	GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ	12/1991 - 12/2999	1
90982-08169	GS13#,JZS13#,LS13#,YS130 長さ=110,1.0Y	12/1991 - 12/1995	1
90982-08257	GS13#,JZS130,131,133,LS13#,YS130 40A,ｵｽ端子,緑	12/1991 - 12/1995	1
90982-08227	GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤	10/1991 - 12/1991	1
90982-08227	GS13#,JZS13#,LS13#,YS130 50A,ﾒｽ端子,赤	12/1991 - 12/1995	1
90982-08223	GS13#,JZS13#,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ	12/1991 - 12/1995	1
82210C - FUSIBLE LINK
90982-08188	GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ	10/1991 - 12/1991	1
90982-08169	GS13#,JZS13#,LS13# 長さ=110,1.0Y	10/1991 - 12/1991	1
90982-08223	GS13#,JZS13# 30A,ｵｽ端子,ﾋﾟﾝｸ	10/1991 - 12/1991	1
90982-08257	GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑	10/1991 - 12/1991	1
90982-08189	JZS130,131,133,LS131 40A,ﾒｽ端子,緑,ｱﾘ(*66)	10/1991 - 12/1995	1
90982-08246	GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青	10/1991 - 08/1993	1
90982-08202	JZS130,131,133,LS131 60A,ｵｽ端子,黄,ｱﾘ(*66)	10/1991 - 12/1995	1
90982-08246	GS130,131,JZS13#..HTWC,TWC 100A,ｵｽ端子,青	08/1993 - 12/1995	1
90982-08188	GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ	12/1991 - 12/2999	1
90982-08169	GS13#,JZS13#,LS13#,YS130 長さ=110,1.0Y	12/1991 - 12/1995	1
90982-08257	GS13#,JZS130,131,133,LS13#,YS130 40A,ｵｽ端子,緑	12/1991 - 12/1995	1
90982-08227	GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤	10/1991 - 12/1991	1
90982-08227	GS13#,JZS13#,LS13#,YS130 50A,ﾒｽ端子,赤	12/1991 - 12/1995	1
90982-08223	GS13#,JZS13#,YS130 30A,ｵｽ端子,ﾋﾟﾝｸ	12/1991 - 12/1995	1
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82671 - BLOCK, JUNCTION
82671-30180	GS13#,JZS13#,LS13#	10/1991 - 12/1991	1
82671-30180	GS13#,JZS13#,LS13#,YS130	12/1991 - 12/1995	1
82671-30190	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 04/1992	1
82671-30190	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	04/1992 - 10/1992	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-3A560	JZS13# COOLER UNIT LOWER	10/1991 - 12/1995	1
82817-3A700	JZS13# CENTER BRACE	10/1991 - 12/1995	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-3A560	JZS13# COOLER UNIT LOWER	10/1991 - 12/1995	1
82817-3A700	JZS13# CENTER BRACE	10/1991 - 12/1995	1
82823 - CAP, TERMINAL, NO.1
82823-24030	JZS13#	10/1991 - 12/2999	1
Common parts
90119-06061
90119-06101
90119-06122
90119-06390
90119-06403
90119-08063
90159-50138
90179-06054
90179-06070
90179-06257
90179-08146
90189-05076
91621-60612
91651-60614
91651-60818
91655-40620
Linked diagrams
8121
8201
8401

ILLUST NO. 2 OF 8(9110- )

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ & ｺﾝｿ-ﾙﾜｲﾔ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-3A120	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 04/1992	1
82141-30800	JZS131,133..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	10/1991 - 08/1993	1
82141-30780	JZS131,133..4FC..ROY	10/1991 - 08/1993	1
82141-30790	JZS131,133..4FC..ROY ｱﾘ(*80)	10/1991 - 08/1993	1
82141-3A120	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	04/1992 - 10/1992	1
82141-30791	JZS131,133..4FC..ROY ｱﾘ(*80)	08/1993 - 12/1995	1
82141-30801	JZS131,133..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	08/1993 - 12/1995	1
82141-30781	JZS131,133..4FC..ROY	08/1993 - 12/1995	1
82166 - WIRE, CONSOLE BOX
82166-30170	GS130,JZS13#..4FC..(ROY,ROYG)	10/1991 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-3A440	GS130,JZS13#..4FC..(ROY,ROYG)	10/1991 - 12/2999	1
Common parts
91621-40616
91651-60614
93567-55014
Linked diagrams
8401

ILLUST NO. 3 OF 8(9110- )

Click highlighted areas on diagram

ﾄﾞｱﾜｲﾔ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-30710	GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) ｱﾘ(*57)	10/1991 - 08/1993	1
82151-30700	GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)	10/1991 - 08/1993	1
82151-30711	GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) ｱﾘ(*57)	08/1993 - 12/1995	1
82151-30701	GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC)	08/1993 - 12/1995	1
82152 - WIRE, FRONT DOOR, LH
82152-30520	GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)	10/1991 - 12/2999	1
82152-30530	GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(*57)	10/1991 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-30380	JZS131,133..ROY	10/1991 - 12/1995	1
82154 - WIRE, REAR DOOR, NO.2
82154-30280	JZS131,133..ROY	10/1991 - 12/1995	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-3K180	GS13#,JZS13#,LS130,YS130 左側	10/1995 - 12/2999	1
82817-3A220	GS13#,JZS13#,LS13#,YS130	12/1991 - 10/1995	1
82817-3A220	GS13#,JZS13#,LS13#	10/1991 - 12/1991	1
82817-3K170	GS13#,JZS13#,LS130,YS130 右側	10/1995 - 12/2999	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-3A230	GS13#,JZS13#,LS13#,YS130	08/1993 - 10/1995	1
82817-3A230	YS130;GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX	12/1991 - 08/1993	1
82817-3A230	GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX	10/1991 - 12/1991	1
Common parts
90950-01582
90950-01583
Linked diagrams
8121

ILLUST NO. 4 OF 8(9110-9512)SED

Click highlighted areas on diagram

ﾙ-ﾌ,ﾌﾛｱ & ﾄﾗﾝｸﾊﾟﾈﾙﾜｲﾔ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-3A500	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82161-3A450	JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/1991 - 09/1992	1
82161-3A440	JZS131,133..ROY	10/1991 - 09/1992	1
82161-3A460	JZS131,133..4FC..ROY ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/1991 - 09/1992	1
82161-3A461	JZS131,133..4FC..ROY ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/1992 - 08/1993	1
82161-3A451	JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/1992 - 08/1993	1
82161-3A441	JZS131,133..ROY	09/1992 - 08/1993	1
82161-3A500	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	05/1992 - 09/1992	1
82161-3A501	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	09/1992 - 10/1992	1
82161-3A442	JZS131,133..ROY	08/1993 - 12/1995	1
82161-3A452	JZS131,133..ROY ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1993 - 12/1995	1
82161-3A462	JZS131,133..4FC..ROY ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1993 - 12/1995	1
82162 - WIRE, FLOOR, NO.2
82162-30860	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	05/1992 - 10/1992	1
82162-30860	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82162-3A030	JZS131,133..4FC..ROY ｱﾘ(*TRC)	10/1991 - 08/1993	1
82162-30821	JZS131,133..4FC..ROY	08/1993 - 12/1995	1
82162-30820	JZS131,133..4FC..ROY	10/1991 - 08/1993	1
82162-3A031	JZS131,133..4FC..ROY ｱﾘ(*TRC)	08/1993 - 12/1995	1
82163 - WIRE, FLOOR, NO.3
82163-30050	JZS133,135	10/1991 - 12/1995	1
82171 - WIRE, ROOF, NO.1
82171-30500	JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	10/1991 - 12/1995	1
82171-30510	JZS131,133,135..ROY,ROYG	10/1991 - 12/1995	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-30060	GS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)	10/1991 - 12/1995	1
82186 - WIRE, REAR WINDOW, NO.1
82186-30100	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82186-30100	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82187 - WIRE, REAR WINDOW, NO.2
82187-30050	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82187-30050	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-30830	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	10/1991 - 05/1992	1
82817-30830	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82817-30830	JZS131,133,135..4FC..(ROY,ROYG)	10/1992 - 08/1993	1
82817-3A260	GS130,131,JZS131,133,135,LS130,131,YS130..SED	08/1993 - 12/1995	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-30830	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	10/1991 - 05/1992	1
82817-30830	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82817-30830	JZS131,133,135..4FC..(ROY,ROYG)	10/1992 - 08/1993	1
82817-3A260	GS130,131,JZS131,133,135,LS130,131,YS130..SED	08/1993 - 12/1995	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-30891	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,FR FLOOR	10/1991 - 05/1992	1
82817-3A260	JZS131..4FC..ROY;JZS131,135..ROYG,SALEX;GS130,131,JZS133,LS130,131..SED..(4FC,4H,5F)	10/1991 - 12/1991	1
82817-3A260	JZS131..SALEX;JZS131,133..4FC..ROY;GS130,131,JZS135,LS130,131,YS130..SED	12/1991 - 08/1993	1
82817-3A260	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,RR WHEEL HOUSE	10/1991 - 05/1992	1
82817-30891	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ,FR FLOOR	05/1992 - 10/1992	1
82817-3A260	GS130,131,JZS131,133,135,LS130,131,YS130..SED	08/1993 - 12/1995	1
82817-3A260	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ,RR WHEEL HOUSE	05/1992 - 10/1992	1
82822 - BRACKET,CONNECTOR BLOCK
82822-30010	GS130,JZS130,LS130..WG;JZS131,133,135..ROY,ROYG FLOOR WIRE	10/1991 - 08/1993	1
82822-30010	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82822-30010	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ	05/1992 - 10/1992	1
82822-30010	GS136,LS136;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX	08/1993 - 12/2999	1
Common parts
90119-06122
90159-50138
90168-50037
90176-05013
90189-05070
91661-60616
93510-55012
Linked diagrams
8401

ILLUST NO. 5 OF 8(9110- )

Click highlighted areas on diagram

ｼ-ﾄﾜｲﾔ

Part #	Description	Period	Qty
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82167 - WIRE, SEAT, NO.1
82167-30720	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	1
82167-30490	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT CUSHION	10/1991 - 12/1995	1
82167-30510	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT BACK	10/1991 - 12/1995	1
82167-30500	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,LH SEAT CUSHION	10/1991 - 12/1995	1
82167-30720	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	1
82167-30600	JZS131,133..4FC;GS130,131,JZS130,LS130,131..4FC..SALEX RH SEAT BELT	10/1991 - 12/2999	1
82167-30480	GS130,131,JZS130,131,133,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC) LH SEAT BELT	10/1991 - 12/2999	1
82167-30520	JZS133..4FC F-1 ﾊﾟﾂｹ-ｼﾞ,RH SEAT BACK	10/1991 - 12/1995	1
82168 - WIRE, SEAT, NO.2
82168-30460	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	2
82168-30430	JZS131,133..ROY 右側	10/1991 - 12/1995	1
82168-30440	JZS131,133..ROY 左側	10/1991 - 12/1995	1
82168-30460	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	2
82168-30450	JZS131,133..ROY ARM REST	10/1991 - 08/1993	1
82168-30510	JZS131,133..ROY ARM REST	08/1993 - 12/1995	1
82168 - WIRE, SEAT, NO.2
82168-30460	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	2
82168-30430	JZS131,133..ROY 右側	10/1991 - 12/1995	1
82168-30440	JZS131,133..ROY 左側	10/1991 - 12/1995	1
82168-30460	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	2
82168-30450	JZS131,133..ROY ARM REST	10/1991 - 08/1993	1
82168-30510	JZS131,133..ROY ARM REST	08/1993 - 12/1995	1
82168 - WIRE, SEAT, NO.2
82168-30460	JZS133..4FC ﾎﾝｺﾝｼﾖｳ	10/1991 - 05/1992	2
82168-30430	JZS131,133..ROY 右側	10/1991 - 12/1995	1
82168-30440	JZS131,133..ROY 左側	10/1991 - 12/1995	1
82168-30460	JZS133..4FC ﾎﾝｺﾝｽﾍﾟﾂｸ OR ｼﾝｶﾞﾎﾟ-ﾙｽﾍﾟﾂｸ	05/1992 - 10/1992	2
82168-30450	JZS131,133..ROY ARM REST	10/1991 - 08/1993	1
82168-30510	JZS131,133..ROY ARM REST	08/1993 - 12/1995	1

ILLUST NO. 7 OF 8(9110- )

Click highlighted areas on diagram

ﾀﾞｲｵ-ﾄﾞ

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
82345 - DIODE
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ,NO.3	10/1991 - 04/1992	2
82345-32020	JZS133..4FC ﾎﾝｺﾝｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙｼﾖｳ,NO.3	04/1992 - 10/1992	2
82345-30010	GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6	10/1991 - 12/2999	1
82345-12030	GS130,131,JZS13#,LS130,131 NO.5	10/1991 - 12/2999	1
82345-32020	JZS133..4FC ｱﾘ(*80 & ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	3
82345-32020	JZS133..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.3	10/1991 - 12/1995	1
82345-32020	JZS13#..ROY,ROYG NO.3	10/1991 - 12/1995	3
Common parts
82345-12030
82345-12050
82345-22051
82345-30010
82345-32020

ILLUST NO. 8 OF 8(9110- )

Click highlighted areas on diagram

ｴｱﾊﾞﾂｸﾞﾘﾍﾟｱﾜｲﾔ

Part #	Description	Period	Qty
82988 - WIRE, AIR BAG REPAIR
82988-24010	GS13#,JZS13#,LS13#	10/1991 - 12/1991	1
82988-24010	GS13#,JZS13#,LS13#,YS130	12/1991 - 12/2999	1
Common parts
82988-24010

ILLUST NO. 6 OF 8(9110- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82710-22020
82710-22070
82710-30160
82710-30220
82710-30230
82710-30250
82711-12200
82711-14750
82711-24010
82711-24120
82711-30260
82711-30520
90119-08201
90119-08714
90119-08760
91611-60814
91612-40612
91651-B0820

ILLUST NO. 6 OF 8(9110- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-30540
82711-30830
82711-30870
82711-32650
82711-35060
82711-3A690
82711-95015
82711-95J26
82715-22040
82715-22080
82715-22280
82715-24090
82715-24140
82715-24150
82715-24160
90119-06200
91651-60814
91651-A0614
93510-55012

ILLUST NO. 6 OF 8(9110- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82715-30010
82715-30110
82715-30120
82715-30130
82715-30150
82715-30160
82715-30180
82715-30260
82715-30270
82715-30350
82715-30360
82715-30500
82715-30510
82715-30560
90119-06200
90179-06158
91611-60816
91651-40814
91651-60814
91651-G0814
93567-55014

ILLUST NO. 6 OF 8(9110- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-30380
82715-22390
82715-30570
82715-30590
82715-30600
82715-30630
82715-30640
82715-30690
82715-50020
82715-50160
90119-06375
90168-60010
90461-06303
90461-06804
90461-08183
90461-08312
91621-60612
91651-A0614

ILLUST NO. 6 OF 8(9110- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-3A180
82711-3A430
82711-3H380
82715-30511
82715-30710
82715-89108
82817-3F670
82822-30020
90119-06120
90168-40036
90463-13003
91611-60612
93567-55014

JZS133-AEPQF (1991)

ILLUST NO. 1 OF 8(9110- )JZS13#

ILLUST NO. 2 OF 8(9110- )

ILLUST NO. 3 OF 8(9110- )

ILLUST NO. 4 OF 8(9110-9512)SED

ILLUST NO. 5 OF 8(9110- )

ILLUST NO. 7 OF 8(9110- )

ILLUST NO. 8 OF 8(9110- )

ILLUST NO. 6 OF 8(9110- )

ILLUST NO. 6 OF 8(9110- )

ILLUST NO. 6 OF 8(9110- )

ILLUST NO. 6 OF 8(9110- )

ILLUST NO. 6 OF 8(9110- )

Part Price Details
