JZS133-AEPQF (1991)
Toyota Crown

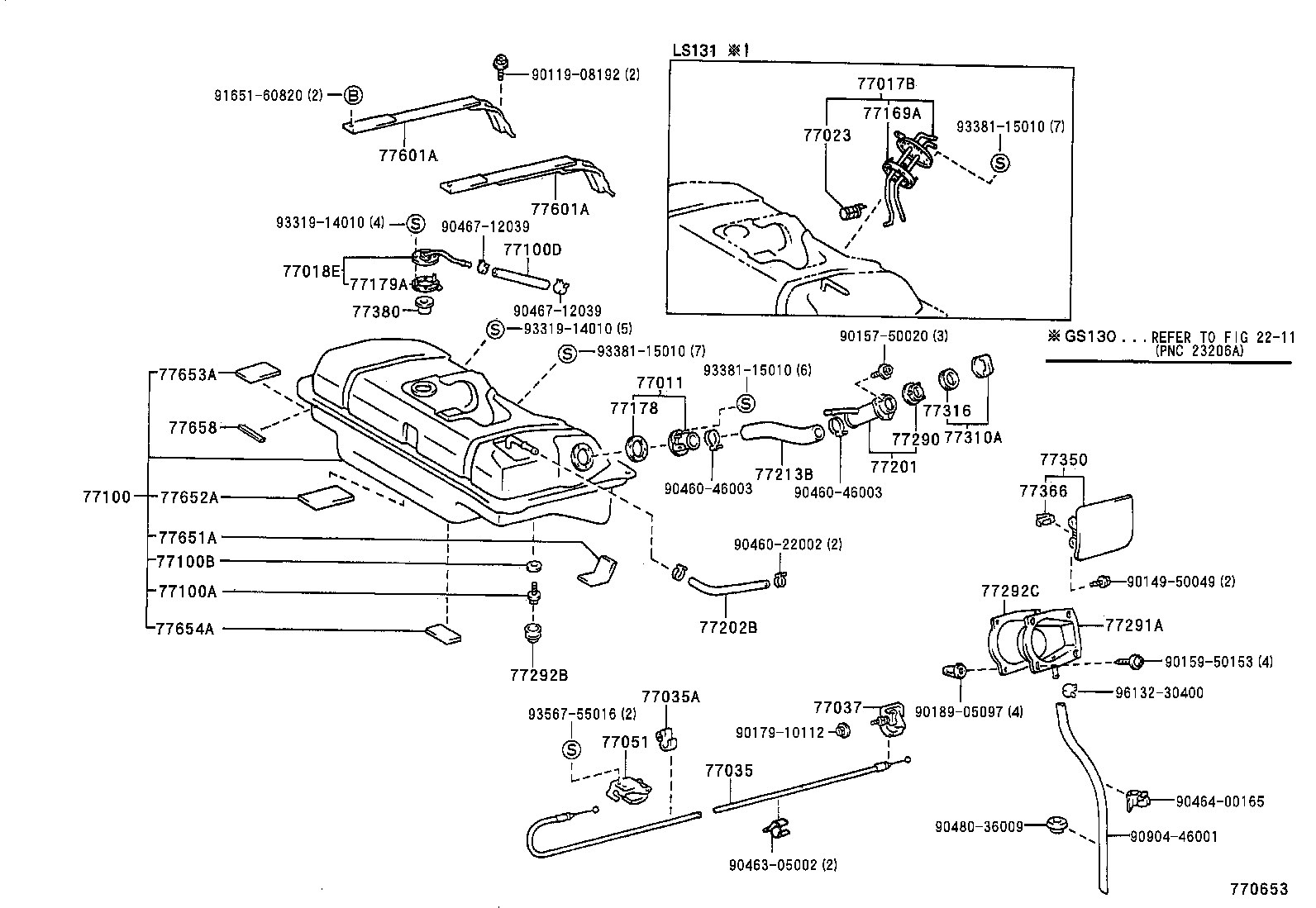

ILLUST NO. 1 OF 2(9110- )GS131,JZS131,133,135,LS131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30040 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30190 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-20020 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC ORANGE |
2 | ||
| 90959-01460 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TWC ﾌﾞﾗｯｸ |
2 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B0 |
JZS13#..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 77051-30060J0 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC DK.BLUE,TRIM8# |
1 | ||
| 77051-30060E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.ROSE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30927 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDEC,TWC) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS13#,JZS131,133,135,LS13#..(SED,V)..(DSL,HTWC,TDEC,TWC) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) *H,L=110 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30230 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-30290 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ OR ｼﾝｶﾞﾎﾟ-ﾙ ｼﾖｳ |
1 | ||
| 77201-30290 |
JZS133..4FC ﾎﾝｺﾝ ｼﾖｳ |
1 | ||
| 77201-30310 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-21883 |
GS131,JZS131,133,135,LS131 長さ=320 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30130 |
GS131,JZS131,133,135,LS131 長さ=149 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30050 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 77291-30050 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 77291-30050 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TWC) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-30040 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 77291-30040 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDEC,TWC) |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-30030 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 77292-30030 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS13#,JZS13#..HTWC,TWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30230 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 77350-30230 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-35010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 77366-35010 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30140 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30140 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30030 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-30020 |
GS131,JZS131,133,135,LS131 |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-30070 |
GS131,JZS131,133,135,LS131 |
4 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
GS131,JZS131,133,135,LS131 |
2 | ||
| Common parts | ||||
| 90119-08192 | ||||
| 90149-50049 | ||||
| 90157-50020 | ||||
| 90159-50153 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90463-05002 | ||||
| 90464-00165 | ||||
| 90467-12039 | ||||
| 90480-36009 | ||||
| 90904-46001 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 2211 | ||||

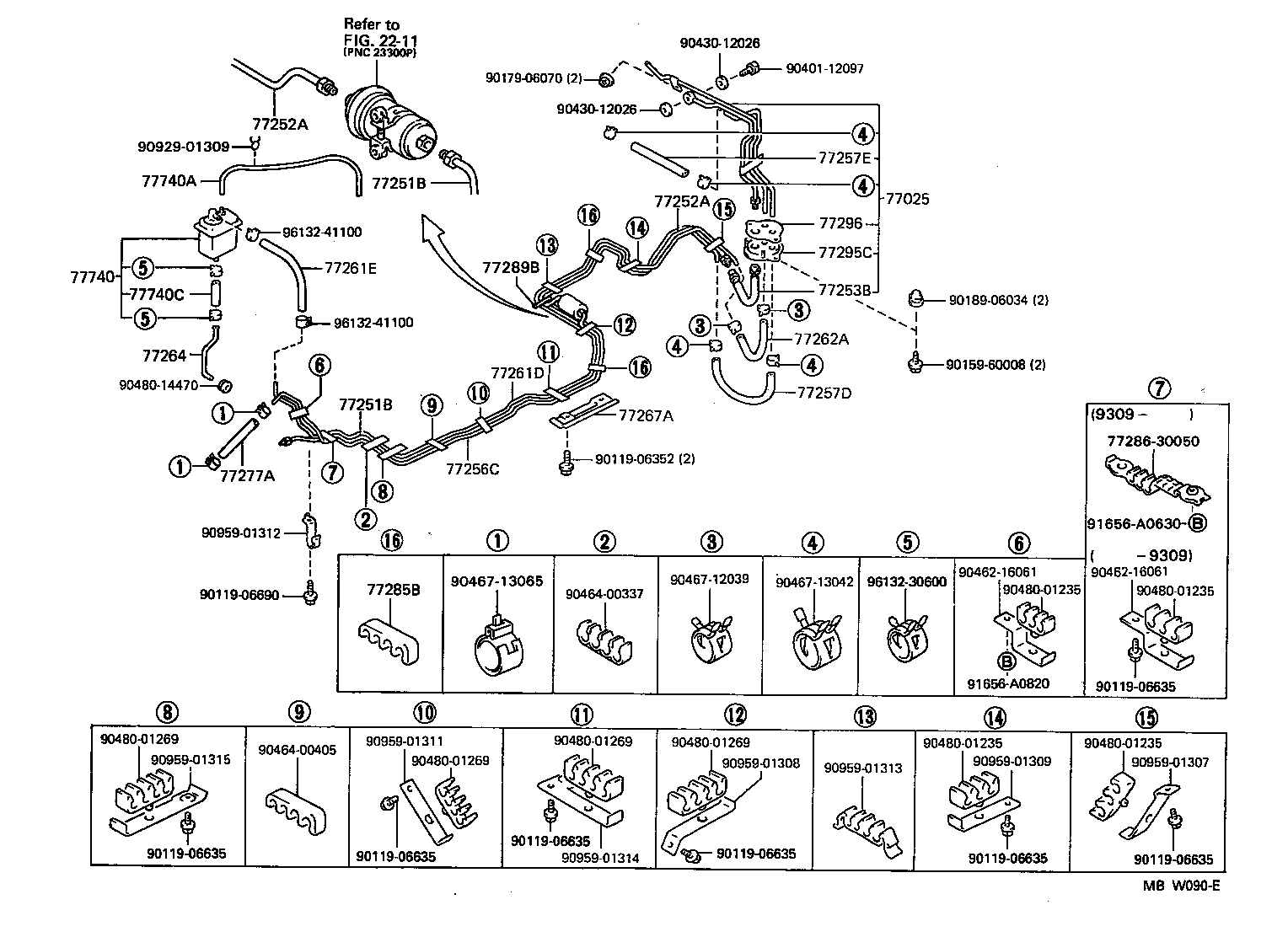

ILLUST NO. 2 OF 2(9110- )JZS131,133,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30160 |
GS131,JZS131,133,135 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-30230 |
JZS131,133,135 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-30230 |
JZS131,133,135 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30290 |
JZS131,133,135 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30290 |
JZS131,133,135 |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-30100 |
GS130,131,JZS131,133,135..SED..(HTWC,TWC) |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-30210 |
GS131,JZS131,133,135 |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08030 |
GS130,131,JZS131,133,135..SED..(HTWC,TWC) |
1 | ||
| 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08020 |
GS130,131,JZS131,133,135..SED..(HTWC,TWC) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-30080 |
GS131,JZS131,133,135 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GS130,131,JZS131,133,135..SED..(HTWC,TWC) *H,L=190 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 95333-06030 |
GS130..SED..HTWC;GS131,JZS131,133,135,LS130..ROY,ROYG,SALEX |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-30020 |
GS13#,JZS13#..HTWC,TWC |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 77267-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-46060 |
JZS13# |
1 | ||
| 23271-46140 |
JZS13# *H,L=260 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-30160 |
JZS131,133,135 |
3 | ||
| 77285-30160 |
JZS131,133,135 |
2 | ||
| 77285-30160 |
JZS131,133,135 |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30030 |
JZS131,133,135 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30170 |
GS13#,JZS13#..HTWC,TWC |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04119 |
JZS13# 長さ=305 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12119 |
GS13#,JZS13#..HTWC,TWC 長さ=100 |
1 | ||
| Common parts | ||||
| 77286-30050 | ||||
| 90119-06352 | ||||
| 90119-06635 | ||||
| 90119-06690 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90189-06034 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90462-16061 | ||||
| 90464-00337 | ||||
| 90464-00405 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90467-13065 | ||||
| 90480-01235 | ||||
| 90480-01269 | ||||
| 90480-14470 | ||||
| 90929-01309 | ||||
| 90959-01307 | ||||
| 90959-01308 | ||||
| 90959-01309 | ||||
| 90959-01311 | ||||
| 90959-01312 | ||||
| 90959-01313 | ||||
| 90959-01314 | ||||
| 90959-01315 | ||||
| 91656-A0630 | ||||
| 91656-A0820 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
