JZS133-AEPQF (1991)
Toyota Crown

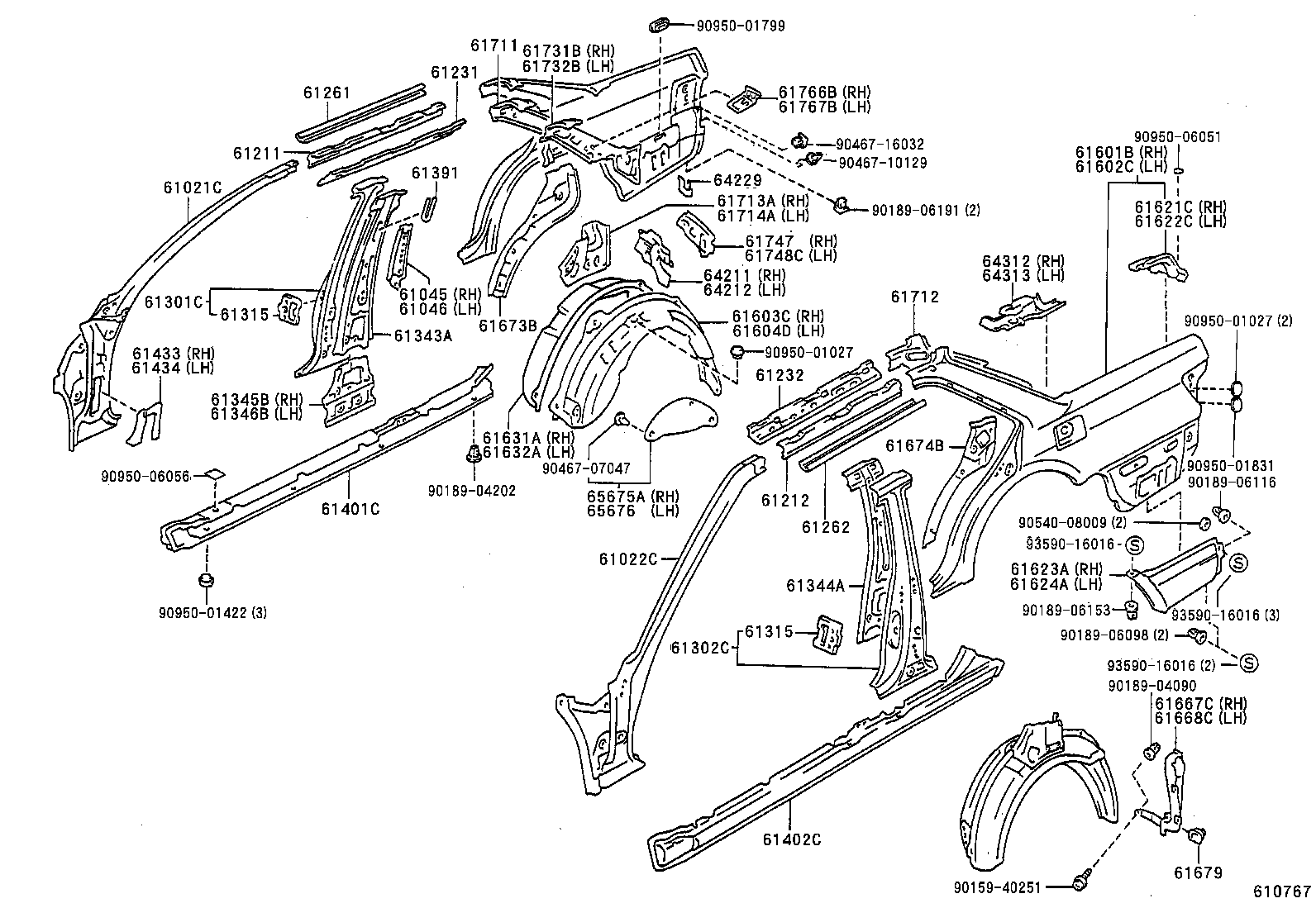

ILLUST NO. 1 OF 2(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-30220 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61021-30220 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-30220 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61022-30220 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH | ||||
| 61045-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61045-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH | ||||
| 61046-30060 |
GS13#,JZS13#,LS13# |
1 | ||
| 61046-30060 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30160 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61211-30160 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30160 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61212-30160 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30250 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61231-30250 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30250 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61232-30250 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30180 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61261-30180 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30180 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61262-30180 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-30150 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61301-30150 |
GS13#,JZS13#,LS13# |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-30180 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61302-30180 |
GS13#,JZS13#,LS13# |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61315-22020 |
GS13#,JZS13#,LS13# |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61315-22020 |
GS13#,JZS13#,LS13# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30100 |
GS13#,JZS13#,LS13# |
1 | ||
| 61343-30101 |
GS13#,JZS13#,LS130,YS130 |
1 | ||
| 61343-30100 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30101 |
GS13#,JZS13#,LS130,YS130 |
1 | ||
| 61344-30100 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61344-30100 |
GS13#,JZS13#,LS13# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61345-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 61346-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 61391-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-30230 |
GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-30230 |
GS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 61433 - PANEL, ROCKER, INNER RH | ||||
| 61433-30011 |
GS13#,JZS13#,LS13# |
1 | ||
| 61433-30011 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61434 - PANEL, ROCKER, INNER LH | ||||
| 61434-30011 |
GS13#,JZS13#,LS13# |
1 | ||
| 61434-30011 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-30820 |
GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-3A360 |
GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-30915 |
JZS131,133,135..ROY,ROYG |
2 | ||
| 61603-30915 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-30914 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 61604-30916 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-30140 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61621-30140 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-30130 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61622-30130 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30100 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61631-30100 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30100 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61632-30100 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-30050 |
GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61668-30070 |
GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61673-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61673-30010 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61674-30010 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61674-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61679 - RETAINER, REAR WHEEL OPENING EXTENSION | ||||
| 61679-30020 |
GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
4 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30060 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61711-30060 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30060 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61712-30060 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-30010 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61713-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-30010 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61714-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30140 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61731-30140 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30140 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61732-30140 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-30030 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-30030 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-30090 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61766-30090 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-30080 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61767-30080 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30080 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 64211-30080 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30070 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 64212-30070 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-30120 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 64312-30120 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-30120 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 64313-30120 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 65675A - SEAL, WHEEL HOUSE, FR RH | ||||
| 65675-30020 |
GS131,JZS131,133,LS131 |
1 | ||
| 65676 - SEAL, WHEEL HOUSE, FRONT LH | ||||
| 65676-30020 |
GS131,JZS131,133,LS131 |
1 | ||
| Common parts | ||||
| 90159-40251 | ||||
| 90189-04090 | ||||
| 90189-04202 | ||||
| 90189-06098 | ||||
| 90189-06116 | ||||
| 90189-06153 | ||||
| 90189-06191 | ||||
| 90467-07047 | ||||
| 90467-10129 | ||||
| 90467-16032 | ||||
| 90540-08009 | ||||
| 90950-01027 | ||||
| 90950-01422 | ||||
| 90950-01799 | ||||
| 90950-01831 | ||||
| 90950-06051 | ||||
| 90950-06056 | ||||
| 93590-16016 | ||||
ILLUST NO. 2 OF 2(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-30050 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61791-30050 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-30050 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61792-30050 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-30110 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61815-30110 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-30110 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61816-30110 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61817B - COVER, ROOF SIDE, INNER LOWER RH | ||||
| 61817-30030 |
GS130,131,JZS131,133,135,LS130,131..SED |
2 | ||
| 61817-30030 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30010 |
GS130,131,JZS131,133,135,LS130,131..SED |
16 | ||
| 61824-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
16 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-30020 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 61825-30020 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-30030 |
GS130,131,JZS131,133,135,LS130,131..SED |
2 | ||
| 61826-30030 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30020 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| 62554-30010 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30020 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| 62554-30010 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30020 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| 62554-30010 |
GS130,131,JZS131,133,135..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
2 | ||
| 62554-30010 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 65 X 65 |
2 | ||
| 62554-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) 40 X 40 |
4 | ||
| Common parts | ||||
| 93560-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
