JZS133-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS131 ; (9110- )ROY,ROYG,SALEX..TDE,TDEC,TWC,TWLPG ; (9512- )GS130

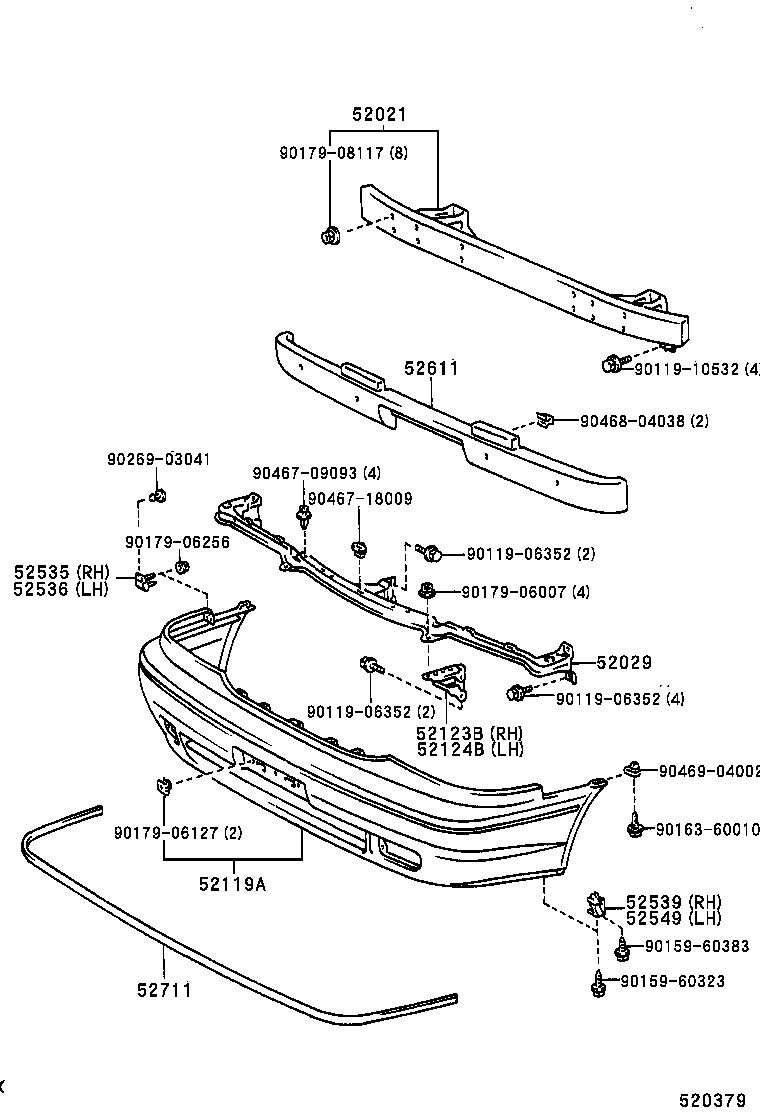

Click highlighted areas on diagram

diagram 52021 52029 52119A 52123B 52124B 52535 52536 52539 52549 52611 52711 9011906352 9011906352 9011906352 9011910532 9015960323 9015960383 9016360010 9017906007 9017906127 9017906256 9017908117 9026903041 9046709093 9046718009 9046804038 9046904002
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-30130

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-30060

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52119A - COVER, FRONT BUMPER
52119-30190A1

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

SUPER WHITE 4,050

 1
52119-30190B1

GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

DK.BL.GRAY ME,183

 1
52119-30190B0

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)

SUPER SILVER 3 M,176

 1
52119-30190A2

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

SUPER WHITE 2,040

 1
52119-30190B1

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

DK.BL.GRAY ME,183

 1
52119-30190C0

GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)

BLACK,202

 1
52119-30190J0

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)

DK.BLUE FTOP,8J5

 1
52119-30190G0

JZS131,133,135..ROY,ROYG

DK.GREEN ME,6K2

 1
52119-30190B3

GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

SILVER ME,199

 1
52119-30190H0

GS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)

DK.TURQUOISE.MC,742

 1
52119-30191B3

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

SILVER ME,199

 1
52119-30191A2

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

SUPER WHITE 2,040

 1
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30070

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30060

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30140

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-30140

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-30040

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52549-30040

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30120

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
52711 - MOULDING, FRONT BUMPER
52711-30140

GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX

 1
Common parts
90119-06352
90119-10532
90159-60323
90159-60383
90163-60010
90179-06007
90179-06127
90179-06256
90179-08117
90269-03041
90467-09093
90467-18009
90468-04038
90469-04002
