JZS133-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

diagram 44610 44696 44730 44731C 44735C 44735C 44758 44785 44785 9017908121
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-30800

JZS133,135

 1
44696 - GROMMET, CHECK VALVE
90480-24015

JZS133,135

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

JZS133,135

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30150

GS13#,JZS13#..HTWC,TWC

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

GS13#,JZS13#,LS13#,YS130

ﾘﾔ

 1
44785-30030

GS13#,JZS13#,LS13#

ﾘﾔ

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

GS13#,JZS13#,LS13#,YS130

ﾘﾔ

 1
44785-30030

GS13#,JZS13#,LS13#

ﾘﾔ

 1
Common parts
90179-08121

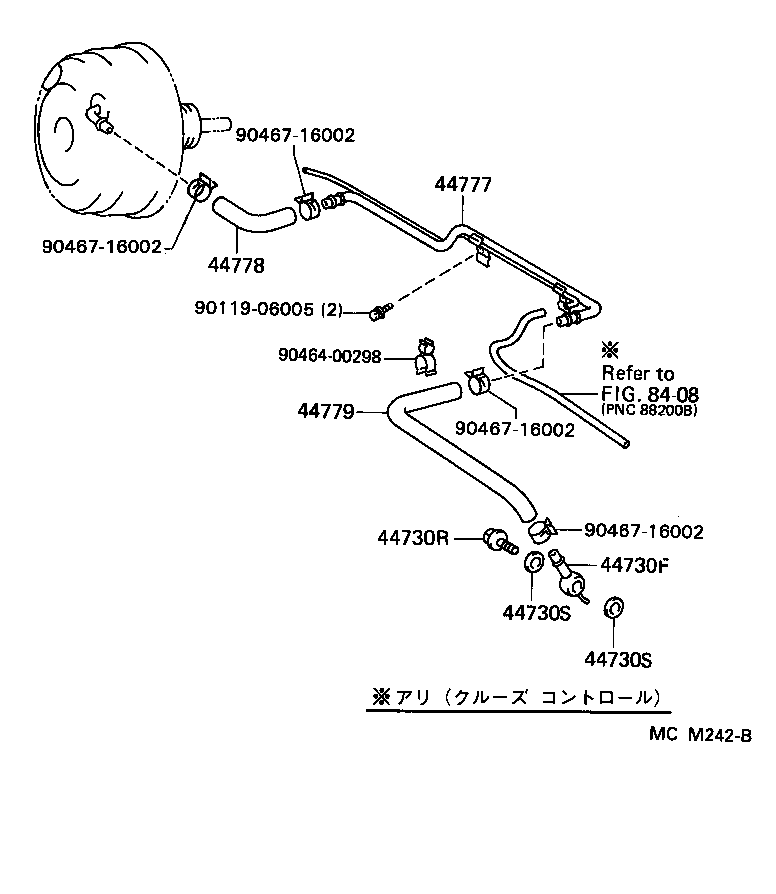

ILLUST NO. 2 OF 2(9110-9512)JZS133,135

Click highlighted areas on diagram

diagram 44730F 44730R 44730S 44730S 44777 44778 44779 8408 9011906005 9046400298 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09160

JZS133,135

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

JZS133,135

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS133,135

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS133,135

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30170

JZS13#..ROY,ROYG

ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30200

JZS13#..ROY,ROYG

ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30200

JZS130..4FC..ROY;JZS131,133,135..ROY,ROYG

ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30180

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30210

JZS133,135..4FC;GS13#,JZS130,131..HTWC,TWC

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44777-30210

GS130..4H..DLX;JZS133,135..4FC;GS13#,JZS130,131..(4FC,4HC,5F)..(HTWC,TWC)

ﾅｼ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-30140

GS130..4H..DLX;GS13#,JZS13#..(4FC,4HC,5F)..(HTWC,TWC)

 1
44778-30140

GS13#,JZS13#..HTWC,TWC

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30290

JZS133,135

 1
Common parts
90119-06005
90464-00298
90467-16002
Linked diagrams
8408
