JZS133-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS133,135

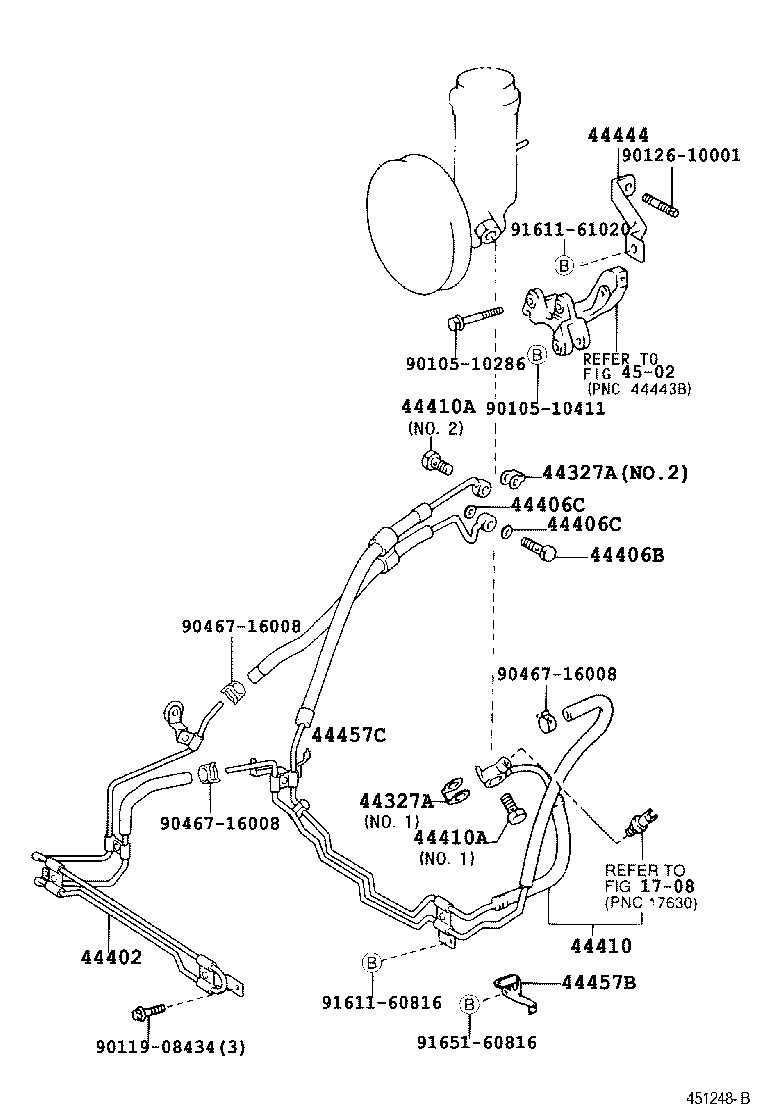

Click highlighted areas on diagram

diagram 1708 44327A 44327A 44402 44406B 44406C 44406C 44410 44410A 44410A 44444 44457B 44457C 4502 9010510286 9010510411 9011908434 9012610001 9046716008 9046716008 9046716008 9161160816 9161161020 9165160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

JZS133,135

NO.2

 1
44327-30040

JZS133,135

NO.1

 1
44327-30030

JZS133,135

NO.2

 1
44327-26020

JZS133,135

NO.1

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

JZS133,135

NO.2

 1
44327-30040

JZS133,135

NO.1

 1
44327-30030

JZS133,135

NO.2

 1
44327-26020

JZS133,135

NO.1

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30160

JZS133,135

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-17002

JZS133,135

 1
96341-11703

JZS133,135

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17006

JZS133,135

 2
90430-17005

JZS133,135

 2
44406C - GASKET(FOR RETURN TUBE)
90430-17006

JZS133,135

 2
90430-17005

JZS133,135

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-30270

JZS133,135

 1
44410-30470

JZS133,135

 1
44410-30271

JZS133,135

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16013

JZS133,135

NO.2

 1
90401-16014

JZS133,135

NO.1

 1
96341-41603

JZS133,135

NO.2

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16013

JZS133,135

NO.2

 1
90401-16014

JZS133,135

NO.1

 1
96341-41603

JZS133,135

NO.2

 1
44444 - STAY, PUMP, REAR
44444-30100

JZS133,135

 1
44444-30100

JZS13#

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-30140

JZS133

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-30130

JZS133,135

 1
Common parts
90105-10286
90105-10411
90119-08434
90126-10001
90467-16008
91611-60816
91611-61020
91651-60816
Linked diagrams
1708
4502
