JZS133-AEPQF (1991)
Toyota Crown

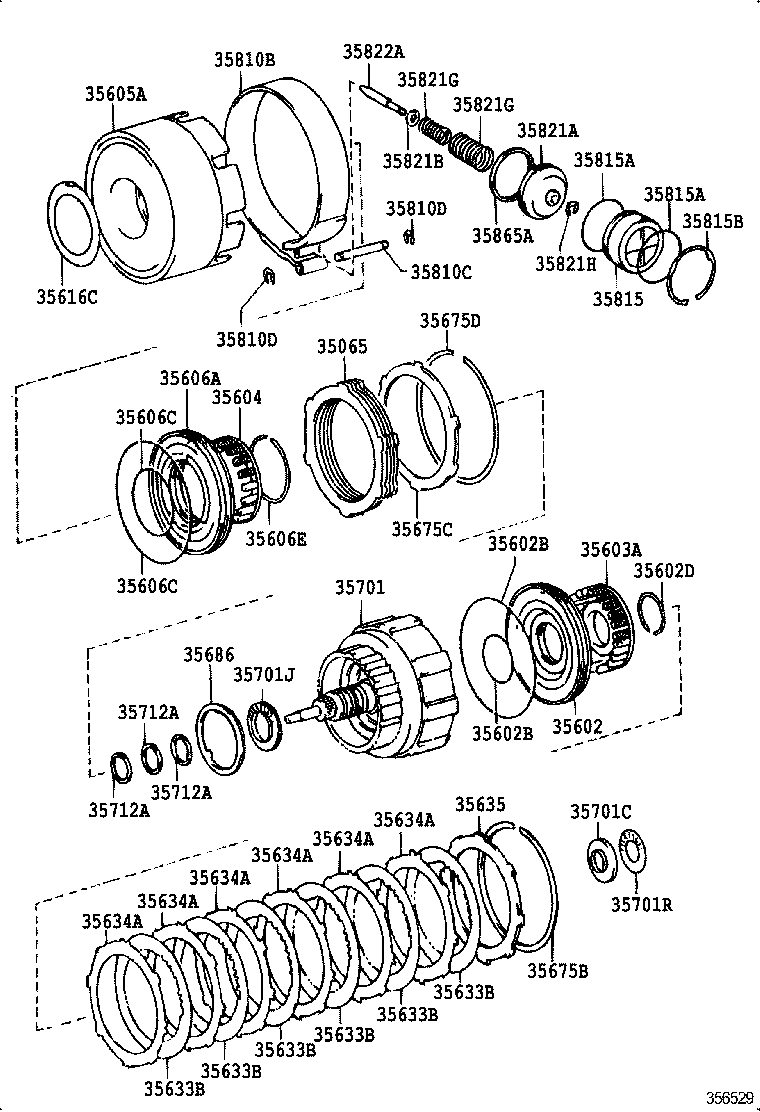

(9308- )JZS133,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35065 - DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR | ||||
| 35065-30030 |
JZS133,135 |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30080 |
JZS133,135 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS13#,LS130,131 内側 |
1 | ||
| 90301-99058 |
JZS13#,LS130,131 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS13#,LS130,131 内側 |
1 | ||
| 90301-99058 |
JZS13#,LS130,131 外側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS13#,LS130,131 |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS133,135 |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS13#,LS130,131 |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-22030 |
JZS13#,LS130,131 |
1 | ||
| 35605-50010 |
JZS133,135 |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-22030 |
JZS13#,LS130,131 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JZS133,135 内側 |
1 | ||
| 90301-99058 |
JZS133,135 外側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JZS133,135 内側 |
1 | ||
| 90301-99058 |
JZS133,135 外側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS13#,LS130,131 |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS13#,LS130,131 |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50020 |
JZS13#,LS130,131 厚さ=3.80,ﾏｰｸ 44 |
1 | ||
| 35635-50040 |
JZS13#,LS130,131 厚さ=3.40,ﾏｰｸ 45 |
1 | ||
| 35635-50010 |
JZS13#,LS130,131 厚さ=4.00,ﾏｰｸ 42 |
1 | ||
| 35635-50060 |
JZS13#,LS130,131 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-50030 |
JZS13#,LS130,131 厚さ=3.60,ﾏｰｸ 62 |
1 | ||
| 35635-50050 |
JZS13#,LS130,131 厚さ=3.20,ﾏｰｸ 60 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS13#,LS130,131 |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30111 |
JZS13#,LS130,131 厚さ=3.0 |
1 | ||
| 35675-30140 |
JZS133,135 厚さ=3.9 |
1 | ||
| 35647-30040 |
JZS133,135 厚さ=4.0,ﾏｰｸ無し |
1 | ||
| 35675-30101 |
JZS13#,LS130,131 厚さ=3.1 |
1 | ||
| 35675-30071 |
JZS13#,LS130,131 厚さ=3.4 |
1 | ||
| 35675-30091 |
JZS13#,LS130,131 厚さ=3.2 |
1 | ||
| 35675-30061 |
JZS13#,LS130,131 厚さ=3.5 |
1 | ||
| 35675-30081 |
JZS13#,LS130,131 厚さ=3.3 |
1 | ||
| 35675-30120 |
JZS13#,LS130,131 厚さ=3.7 |
1 | ||
| 35675-30051 |
JZS13#,LS130,131 厚さ=3.6 |
1 | ||
| 35675-30130 |
JZS133,135 厚さ=3.8 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99032 |
JZS13#,LS130,131 |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JZS13#,LS130,131 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30090 |
JZS133,135 |
1 | ||
| 35701-30070 |
JZS133,135 |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
JZS13#,LS130,131 |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS13#,LS130,131 |
1 | ||
| 35701R - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-25005 |
JZS13#,LS130,131 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-14010 |
JZS131,133,135 |
1 | ||
| 35810-50010 |
JZS133,135 |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS13#,LS130,131 |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
JZS13#,LS130,131 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS13#,LS130,131 |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS13#,LS130,131 |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JZS13#,LS130,131 |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
JZS13#,LS130,131 |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS13#,LS130,131 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS13#,LS130,131 外側 |
1 | ||
| 90501-27009 |
JZS13#,LS130,131 内側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS13#,LS130,131 外側 |
1 | ||
| 90501-27009 |
JZS13#,LS130,131 内側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-50020 |
JZS133,135 長さ=70.65 |
1 | ||
| 35822-50020 |
JZS133,135 長さ=70.65 |
1 | ||
| 35822-50010 |
JZS133,135 長さ=72.15 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS13#,LS130,131 |
1 | ||

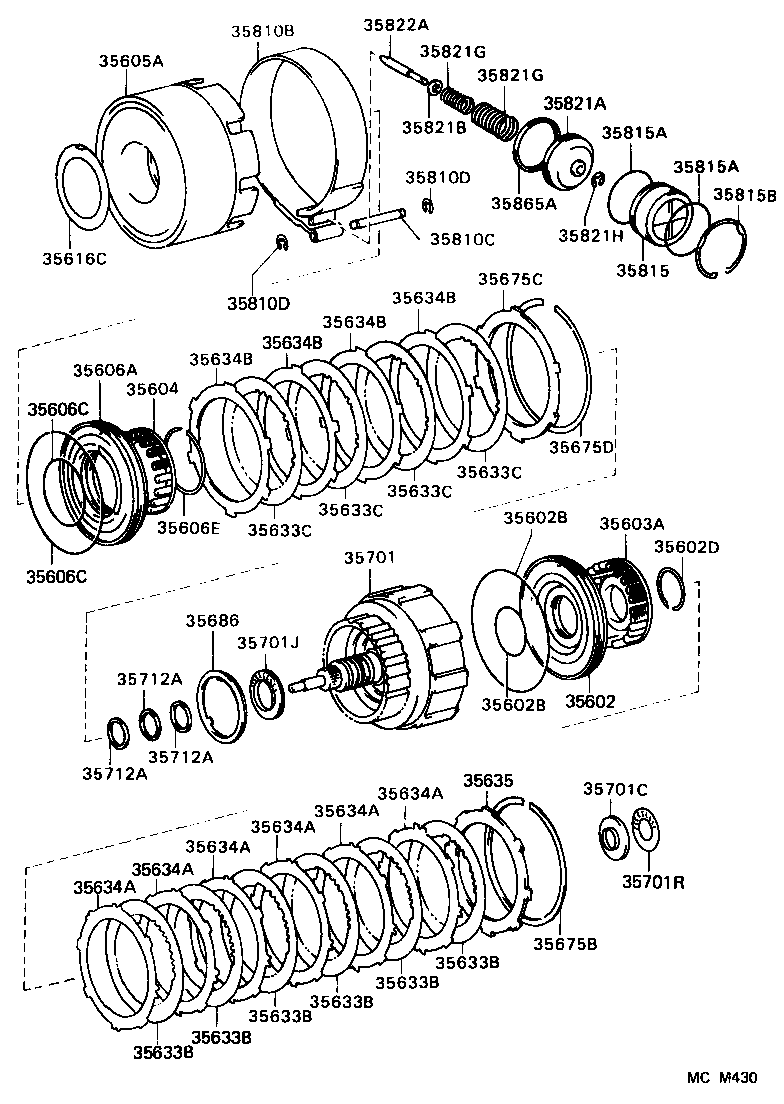

(9110-9308)JZS133,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30080 |
JZS133,135 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS13#,LS130,131 内側 |
1 | ||
| 90301-99058 |
JZS13#,LS130,131 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS13#,LS130,131 内側 |
1 | ||
| 90301-99058 |
JZS13#,LS130,131 外側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS13#,LS130,131 |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS133,135 |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS13#,LS130,131 |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-22030 |
JZS13#,LS130,131 |
1 | ||
| 35605-50010 |
JZS133,135 |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-22030 |
JZS13#,LS130,131 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JZS133,135 内側 |
1 | ||
| 90301-99058 |
JZS133,135 外側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JZS133,135 内側 |
1 | ||
| 90301-99058 |
JZS133,135 外側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS13#,LS130,131 |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS13#,LS130,131 |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30150 |
JZS133,135 |
6 | ||
| 35677-30150 |
JZS133,135 |
5 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-50030 |
JZS133,135 |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-50030 |
JZS133,135 |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-50030 |
JZS133,135 |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-50030 |
JZS133,135 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZS133,135 厚さ=1.8 |
6 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-14010 |
JZS13#,LS130,131 厚さ=3.0 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-14010 |
JZS13#,LS130,131 厚さ=3.0 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-14010 |
JZS13#,LS130,131 厚さ=3.0 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-14010 |
JZS13#,LS130,131 厚さ=3.0 |
4 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50020 |
JZS13#,LS130,131 厚さ=3.80,ﾏｰｸ 44 |
1 | ||
| 35635-50040 |
JZS13#,LS130,131 厚さ=3.40,ﾏｰｸ 45 |
1 | ||
| 35635-50010 |
JZS13#,LS130,131 厚さ=4.00,ﾏｰｸ 42 |
1 | ||
| 35635-50060 |
JZS13#,LS130,131 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-50030 |
JZS13#,LS130,131 厚さ=3.60,ﾏｰｸ 62 |
1 | ||
| 35635-50050 |
JZS13#,LS130,131 厚さ=3.20,ﾏｰｸ 60 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS13#,LS130,131 |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30111 |
JZS13#,LS130,131 厚さ=3.0 |
1 | ||
| 35675-30140 |
JZS133,135 厚さ=3.9 |
1 | ||
| 35647-30040 |
JZS133,135 厚さ=4.0,ﾏｰｸ無し |
1 | ||
| 35675-30101 |
JZS13#,LS130,131 厚さ=3.1 |
1 | ||
| 35675-30071 |
JZS13#,LS130,131 厚さ=3.4 |
1 | ||
| 35675-30091 |
JZS13#,LS130,131 厚さ=3.2 |
1 | ||
| 35675-30061 |
JZS13#,LS130,131 厚さ=3.5 |
1 | ||
| 35675-30081 |
JZS13#,LS130,131 厚さ=3.3 |
1 | ||
| 35675-30120 |
JZS13#,LS130,131 厚さ=3.7 |
1 | ||
| 35675-30051 |
JZS13#,LS130,131 厚さ=3.6 |
1 | ||
| 35675-30130 |
JZS133,135 厚さ=3.8 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99032 |
JZS13#,LS130,131 |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JZS13#,LS130,131 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30090 |
JZS133,135 |
1 | ||
| 35701-30070 |
JZS133,135 |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
JZS13#,LS130,131 |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS13#,LS130,131 |
1 | ||
| 35701R - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-25005 |
JZS13#,LS130,131 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS13#,LS130,131 |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-14010 |
JZS131,133,135 |
1 | ||
| 35810-50010 |
JZS133,135 |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS13#,LS130,131 |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
JZS13#,LS130,131 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS13#,LS130,131 |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS13#,LS130,131 |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JZS13#,LS130,131 |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
JZS13#,LS130,131 |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS13#,LS130,131 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS13#,LS130,131 外側 |
1 | ||
| 90501-27009 |
JZS13#,LS130,131 内側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS13#,LS130,131 外側 |
1 | ||
| 90501-27009 |
JZS13#,LS130,131 内側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JZS13#,LS130,131 |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-50020 |
JZS133,135 長さ=70.65 |
1 | ||
| 35822-50020 |
JZS133,135 長さ=70.65 |
1 | ||
| 35822-50010 |
JZS133,135 長さ=72.15 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS13#,LS130,131 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
