JZS131-ATSQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZS13#..ROY,SALEX

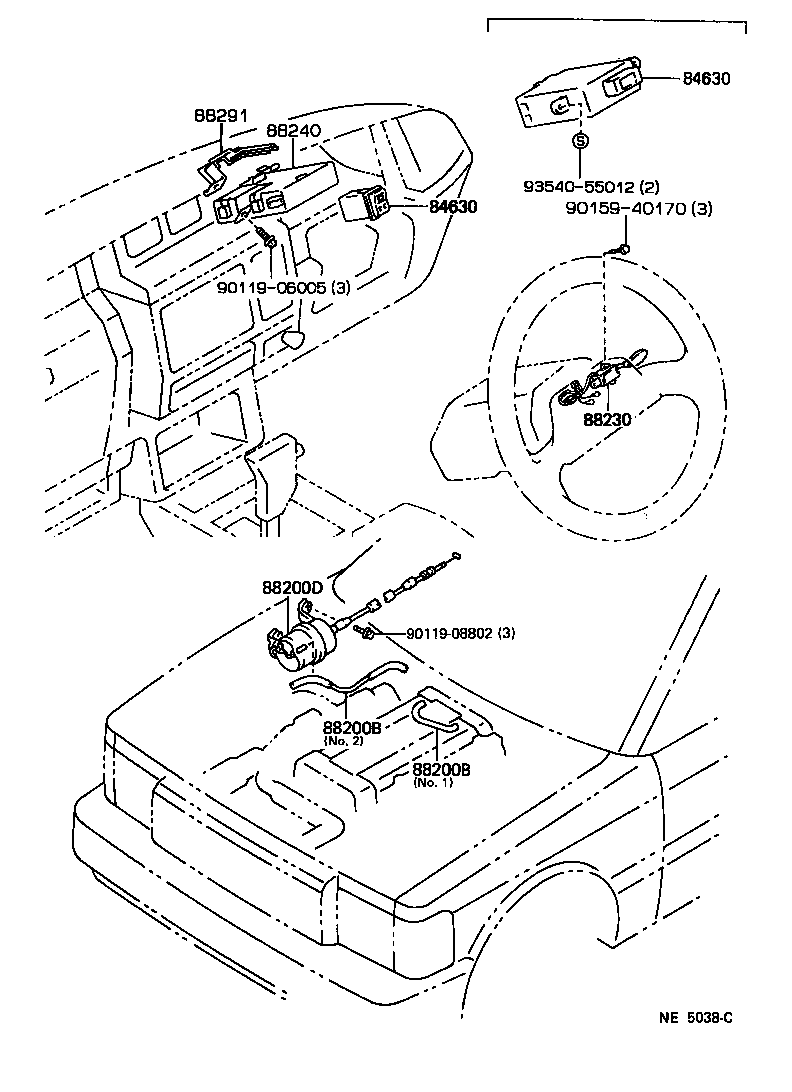

Click highlighted areas on diagram

diagram 84630 84630 88200B 88200B 88200D 88230 88240 88291 9011906005 9011908802 9015940170 9354055012
Part # Description Qty Price
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92003

GS130,131,MS135,137..(ROY,ROYG,SAL,SALEX)..(HTWC,TWC)

長さ=600,NO.2

 1
90999-92003

JZS13#..ROY,SALEX

長さ=600,NO.1

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92003

GS130,131,MS135,137..(ROY,ROYG,SAL,SALEX)..(HTWC,TWC)

長さ=600,NO.2

 1
90999-92003

JZS13#..ROY,SALEX

長さ=600,NO.1

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-30130

GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX

 1
88200-30200

JZS13#..ROY,SALEX

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-30160

GS130,131,LS130,MS135,137..(ROY,ROYG,SAL,SALEX)..(EFI,TDE,TWC)

 1
88240-30210

JZS13#..ROY,SALEX

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30070

GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX

 1
Common parts
90119-06005
90119-08802
90159-40170
93540-55012
