JZS131-ATSQF (1990)
Toyota Crown
Production
Aug 1990
-
Oct 1991
Engine
1JZGE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

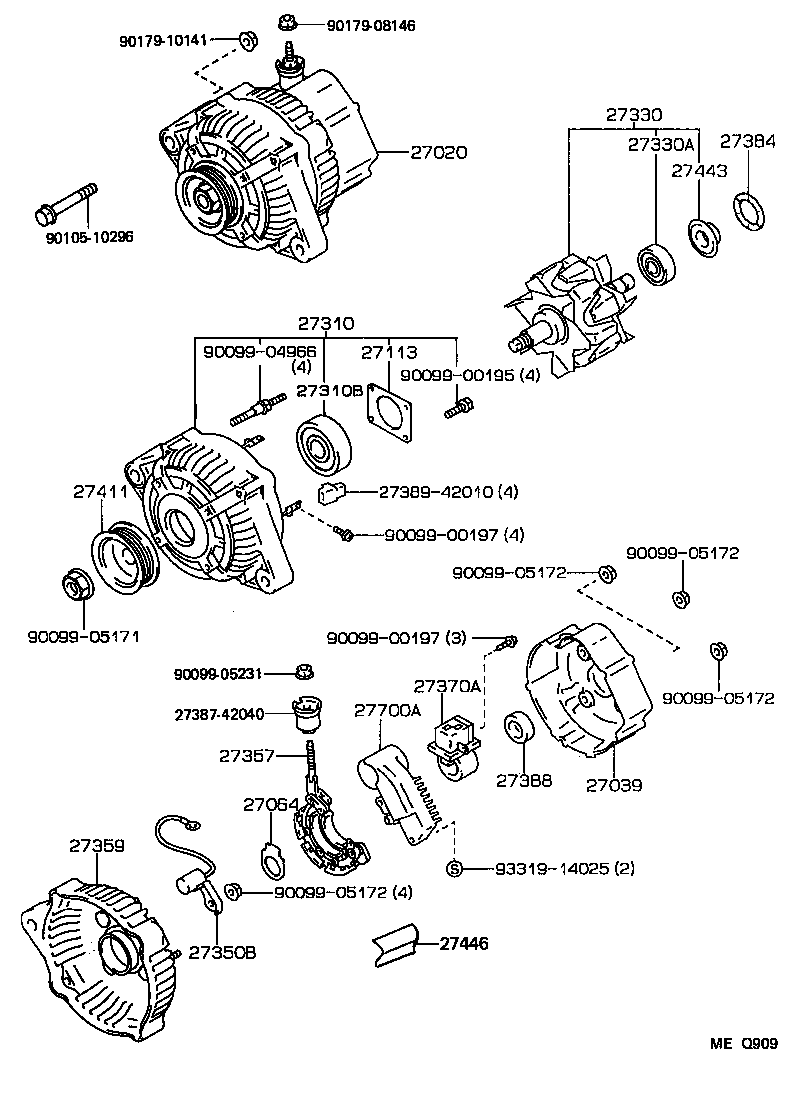

(9008- )1JZGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46010 |
1JZGE..JZS13# 12V 80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46080 |
1JZGE..JZS13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46080 |
1JZGE,1UZFE..JZS13#,UZS131 |
1 | ||
| 27330-46080 |
1JZGE..JZS13# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52027 |
1JZGE..JZS13# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46080 |
1JZGE..JZS13# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-46080 |
1JZGE..JZS13# |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1JZGE..JZS13# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
1JZGE..JZS13# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46090 |
1JZGE..JZS13# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74010 |
1JZGE..JZS13# |
1 | ||
| 27700-46030 |
1JZGE..JZS13# |
1 | ||
| Common parts | ||||
| 27387-42040 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90105-10296 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 93319-14025 | ||||
(9110-9308)1JZGE,2JZGE
Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27387-42040 | ||||
| 27389-42010 | ||||
| 27446-46150 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 91512-61050 | ||||
| 93319-14025 | ||||
