JZS131-ATPSF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

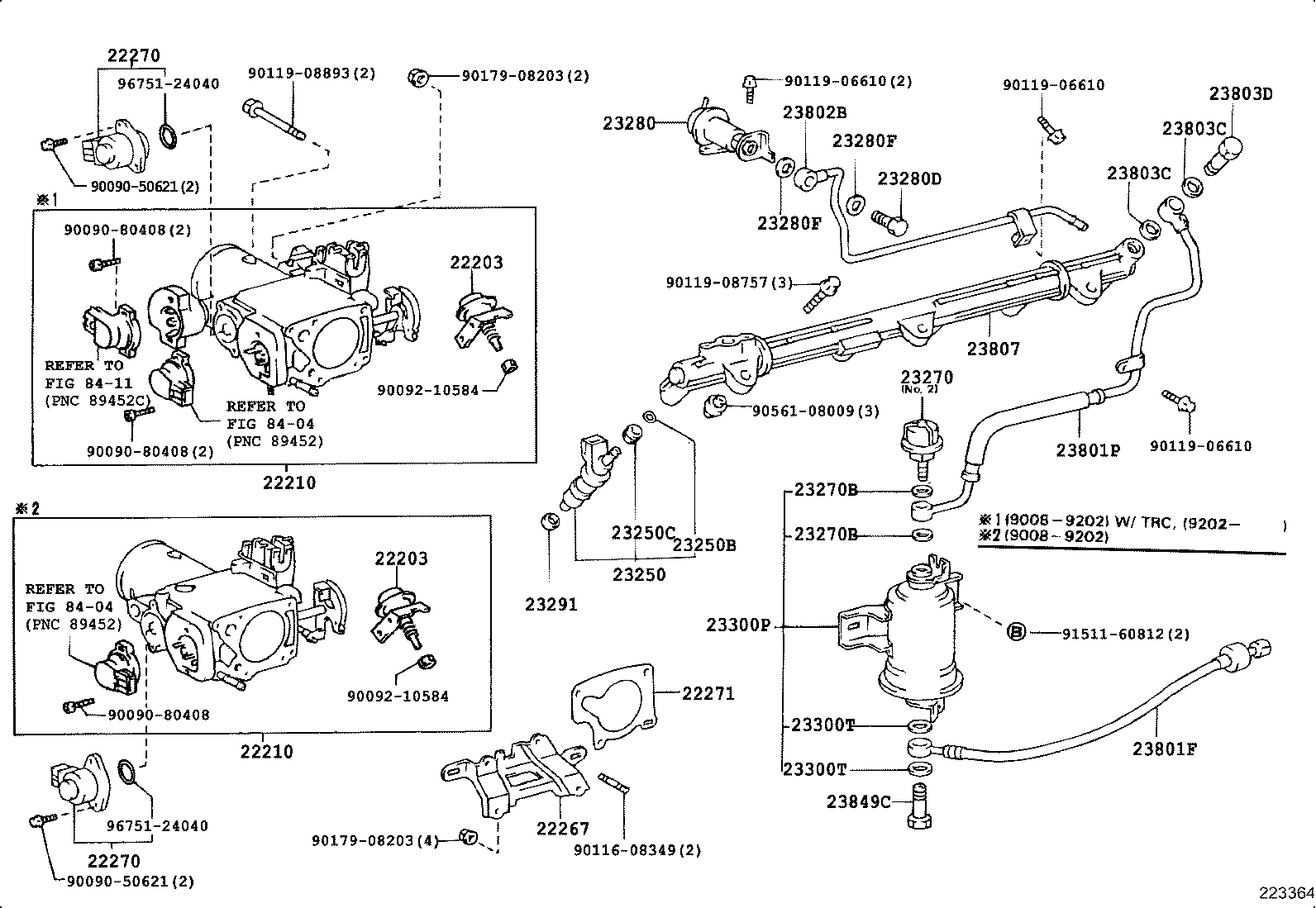

ILLUST NO. 1 OF 2(9008- )1JZGE

Click highlighted areas on diagram

diagram 22203 22203 22210 22210 22267 22270 22270 22271 23250 23250B 23250C 23270 23270B 23270B 23280 23280D 23280F 23280F 23291 23300P 23300T 23300T 23801F 23801P 23802B 23803C 23803C 23803D 23807 23849C 8404 8404 8411 9009050621 9009050621 9009080408 9009080408 9009080408 9009210584 9009210584 9011608349 9011906610 9011906610 9011906610 9011908757 9011908893 9017908203 9017908203 9056108009 9151160812 9675124040 9675124040
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-46020

1JZGE..JZS13#

 1
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-46020

1JZGE..JZS13#

 1
22210 - BODY ASSY, THROTTLE
22210-46070

1JZGE..JZS13#

 1
22210 - BODY ASSY, THROTTLE
22210-46070

1JZGE..JZS13#

 1
22267 - BRACKET, THROTTLE BODY
22267-46010

1JZGE..JZS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46010

1JZGE..JZS13#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-46010

1JZGE..JZS13#

 1
22271 - GASKET, THROTTLE BODY
22271-46010

1JZGE..JZS13#

 1
23250 - INJECTOR ASSY, FUEL
23209-46010

1JZGE..JZS13#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1JZGE..JZS13#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46021

1JZGE..JZS13#

NO.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

1JZGE..JZS13#

DELIVERY PIPE SIDE

 1
90430-14008

1JZGE..JZS13#

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

1JZGE..JZS13#

DELIVERY PIPE SIDE

 1
90430-14008

1JZGE..JZS13#

DAMPER SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-46010

1JZGE..JZS13#

 1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-10038

1JZGE..JZS13#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1JZGE..JZS13#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-49175

1JZGE..JZS13#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1JZGE..JZS13#

 2
90430-12005

1JZGE..JZS13#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1JZGE..JZS13#

 2
90430-12005

1JZGE..JZS13#

 2
23801F - HOSE, FUEL, NO.1
90923-01381

1JZGE..JZS13#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-46010

1JZGE..JZS13#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-46020

1JZGE..JZS13#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90430-12026

1JZGE..JZS13#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90430-12026

1JZGE..JZS13#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90401-12023

1JZGE..JZS13#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-46010

1JZGE..JZS13#

 1
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12097

1JZGE..JZS13#

 1
Common parts
90090-50621
90090-80408
90092-10584
90116-08349
90119-06610
90119-08757
90119-08893
90179-08203
90561-08009
91511-60812
96751-24040
Linked diagrams
8404
8411

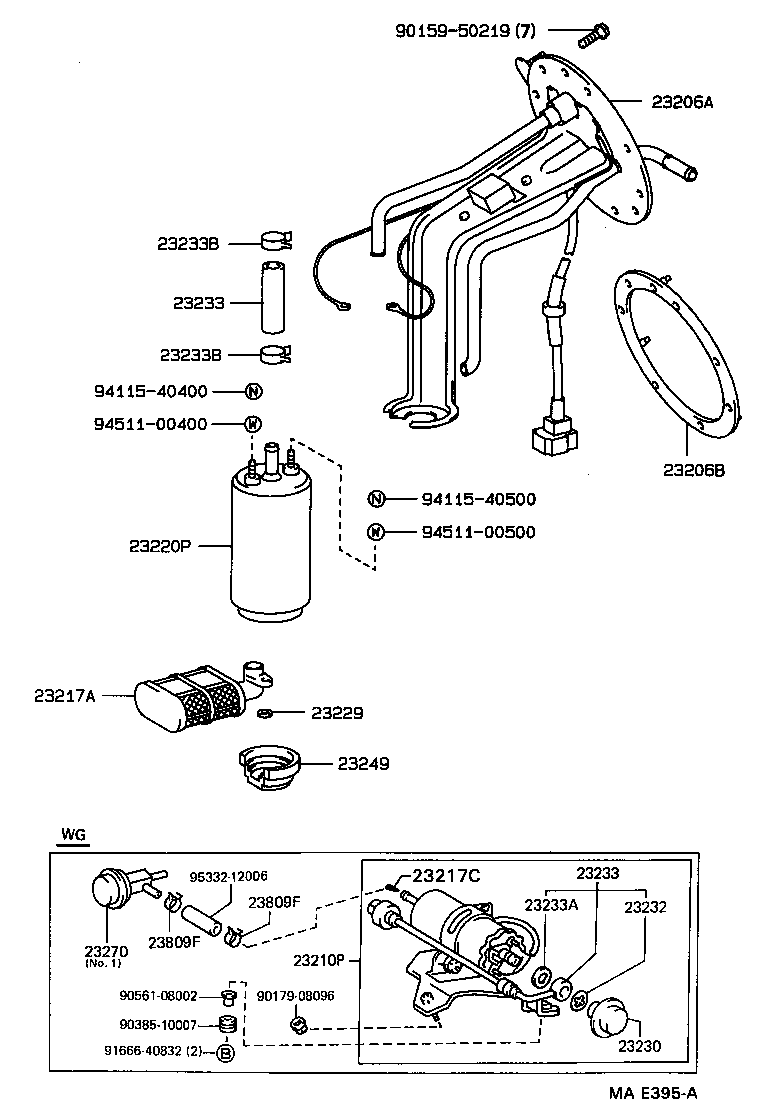

ILLUST NO. 2 OF 2(9008- )1JZGE

Click highlighted areas on diagram

diagram 23206A 23206B 23210P 23217A 23217C 23220P 23229 23230 23232 23233 23233 23233A 23233B 23233B 23249 23270 23809F 23809F 9015950219 9017908096 9038510007 9056108002 9166640832 9411540400 9411540500 9451100400 9451100500 9533212006
Part # Description Qty Price
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

1JZGE..JZS131

 1
23220P - PUMP ASSY, FUEL
23220-43070

1JZGE..JZS131

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1JZGE..JZS131

 1
23233 - HOSE, FUEL PUMP
23239-16010

1JZGE..JZS131

 1
23233 - HOSE, FUEL PUMP
23239-16010

1JZGE..JZS131

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

1JZGE..JZS131

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46021

1JZGE..JZS13#

NO.2

 1
Common parts
90159-50219
90179-08096
90385-10007
90561-08002
91666-40832
94115-40400
94115-40500
94511-00400
94511-00500
95332-12006

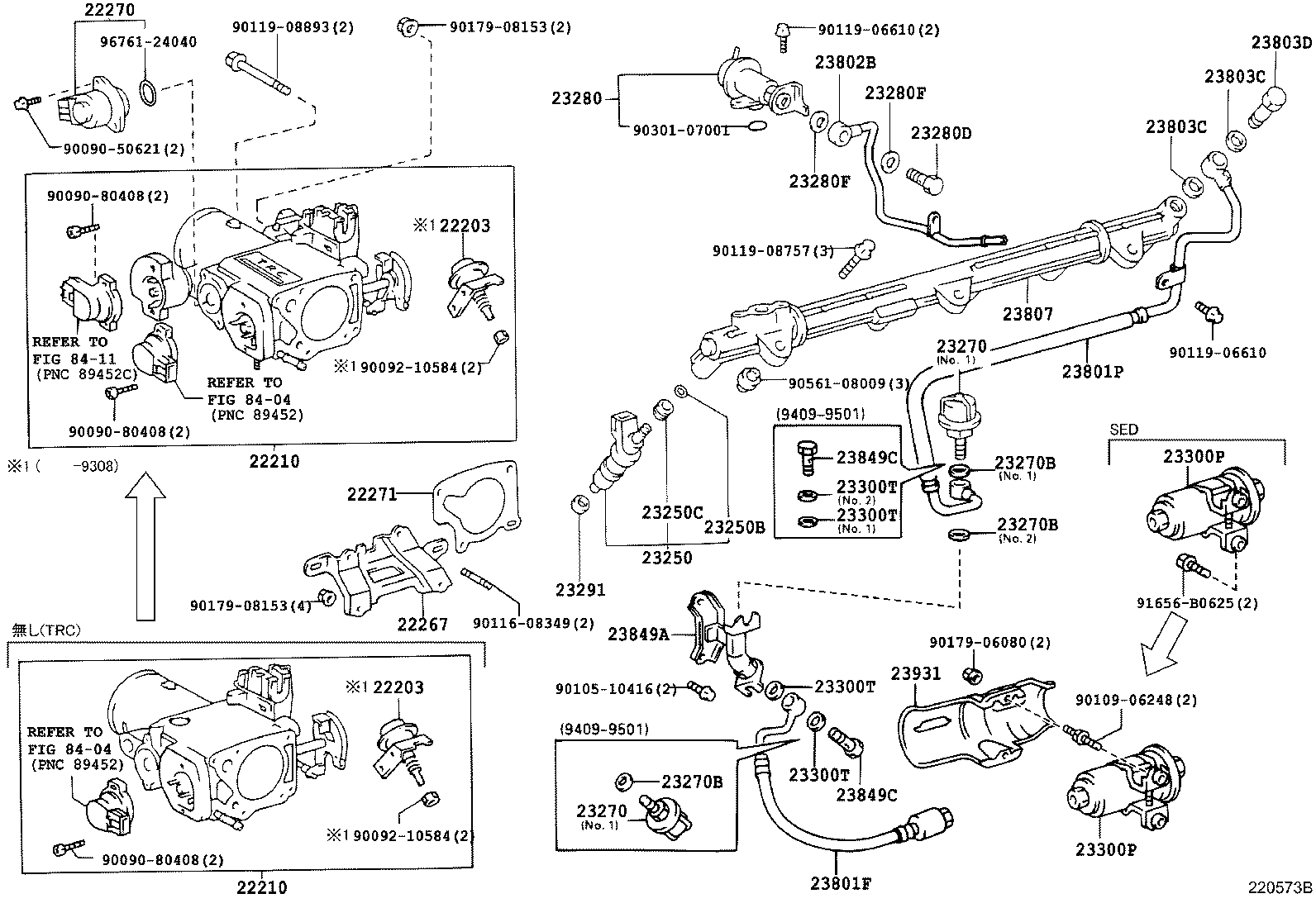

ILLUST NO. 1 OF 2(9110-9609)1JZGE

Click highlighted areas on diagram

diagram 22203 22203 22210 22210 22267 22270 22271 23250 23250B 23250C 23270 23270 23270B 23270B 23270B 23280 23280D 23280F 23280F 23291 23300P 23300P 23300T 23300T 23300T 23300T 23801F 23801P 23802B 23803C 23803C 23803D 23807 23849A 23849C 23849C 23931 8404 8404 8411 9009050621 9009080408 9009080408 9009080408 9009210584 9009210584 9010510416 9010906248 9011608349 9011906610 9011906610 9011908757 9011908893 9017906080 9017908153 9017908153 9030107001 9056108009 91656B0625 9676124040
Part # Description Qty Price
Common parts
90090-50621
90090-80408
90092-10584
90105-10416
90109-06248
90116-08349
90119-06610
90119-08757
90119-08893
90179-06080
90179-08153
90301-07001
90561-08009
91656-B0625
96761-24040
Linked diagrams
8404
8411
