JZS131-ATPSF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGE

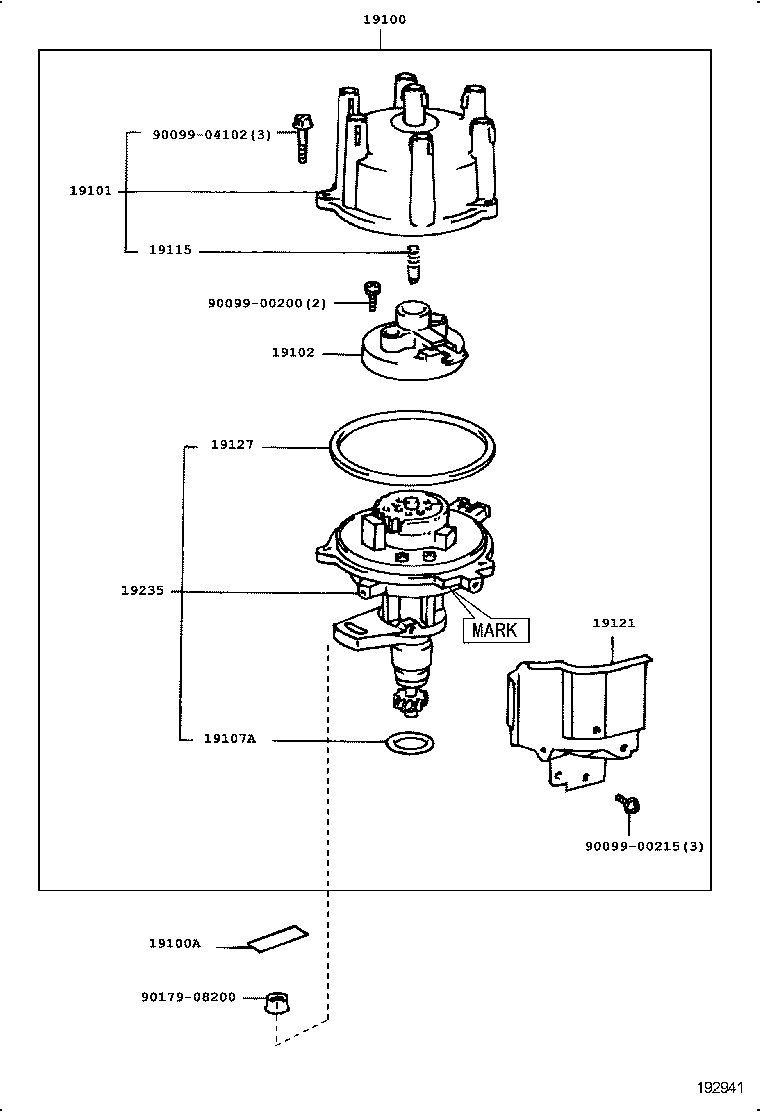

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19127 19235 9009900200 9009900215 9009904102 9017908200
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-46010

1JZGE..JZS13#

MARK 19100-46010 : ｲﾗｽﾄｻﾝｼｮｳ

 1
19100-46011

1JZGE..JZS13#

MARK 19100-46011 : ｲﾗｽﾄｻﾝｼｮｳ

 1
19100A - TAPE, SEALING
90919-24004

1JZGE..JZS13#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-46010

1JZGE..JZS13#

MARK 19100-46010 : ｲﾗｽﾄｻﾝｼｮｳ

 1
19101-46020

1JZGE..JZS13#

MARK 19100-46011 : ｲﾗｽﾄｻﾝｼｮｳ

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-46011

1JZGE..JZS13#

MARK 19100-46011 : ｲﾗｽﾄｻﾝｼｮｳ

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14109

1JZGE..JZS13#

 1
19121 - COVER, DUST PROOF
19121-46010

1JZGE..JZS13#

 1
19235 - HOUSING, DISTRIBUTOR
19235-46010

1JZGE..JZS13#

 1
Common parts
90099-00200
90099-00215
90099-04102
90179-08200

(9110-9609)1JZGE,2JZGE

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19127 19235 9009900200 9009900215 9009904412 9017908200
Part # Description Qty Price
Common parts
90099-00200
90099-00215
90099-04412
90179-08200
