JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZS13#

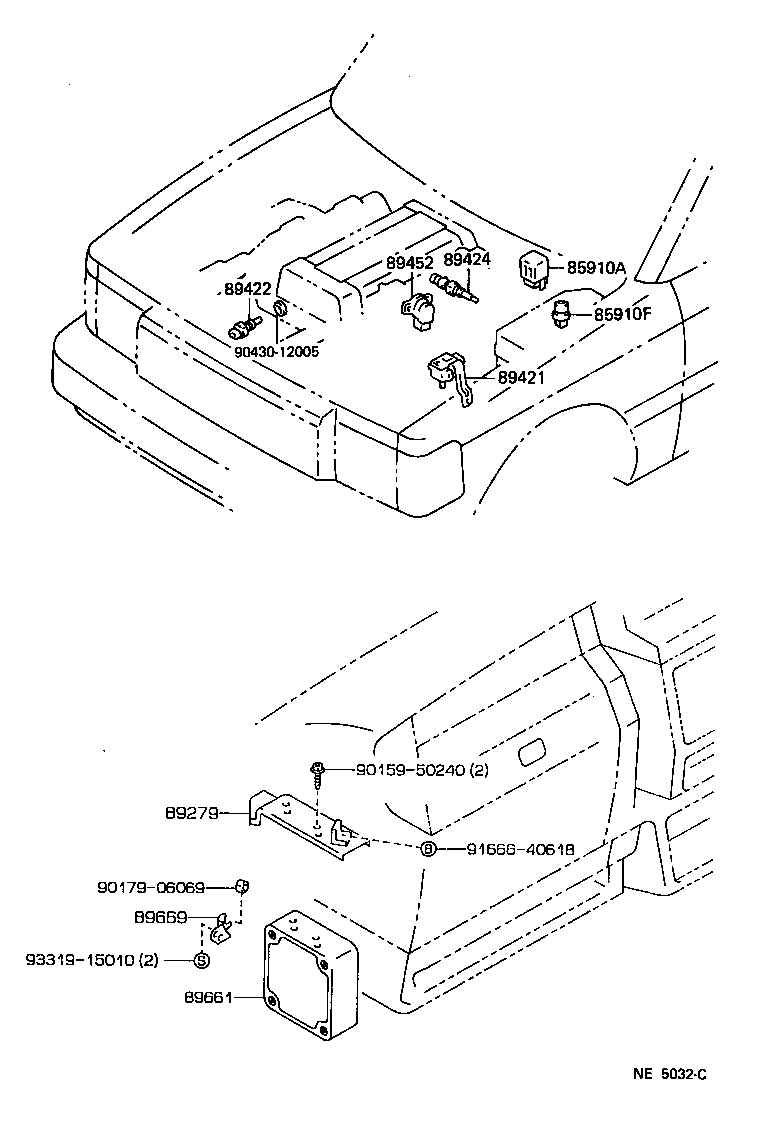

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89421 89422 89424 89452 89661 89669 9015950240 9017906069 9043012005 9166640618 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

GS136..HTWC;GS130,131,JZS13#,MS135,137,UZS131..EFI,HTWC,TWC

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-30050

GS130,131..SPC;JZS13#,MS13#,UZS131

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-30010

GS130,131..EFI,HTWC,TWC

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

GS136..HTWC;GS130,131,YS130..EFI,HTWC,LPEFI,TWC

 1
89424-12010

JZS13#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

JZS13#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30480

JZS131

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30020

GS13#,JZS13#,MS135,137,UZS131,YS130..EFI,HTWC,LPEFI,SPC,TWC

 1
Common parts
90159-50240
90179-06069
90430-12005
91666-40618
93319-15010
