JZS131-ATPQF (1990)
Toyota Crown

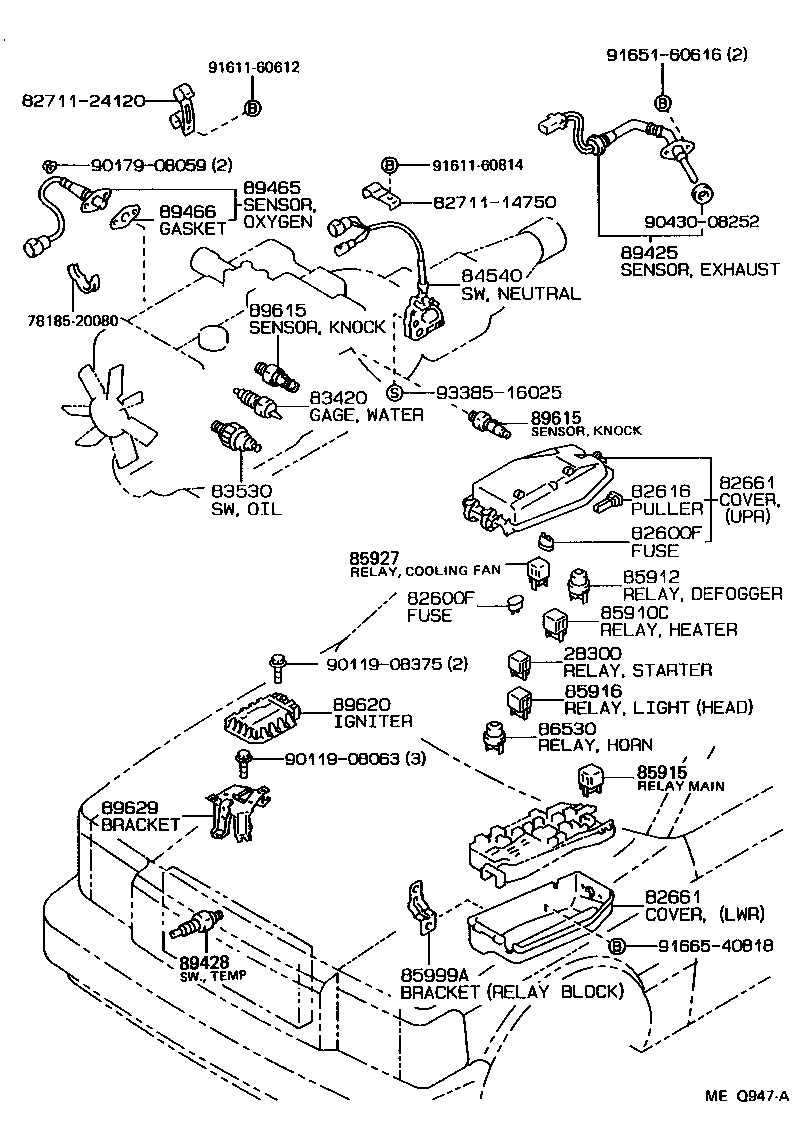

ILLUST NO. 1 OF 8(9008- )JZS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
JZS13#,MS13#;GS131..ROY..SPC 30A,緑 |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
JZS13#,MS13#;GS131..ROY..SPC 30A,緑 |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30020 |
UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-30020 |
UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS13#,JZS13#,LS13#,MS13#,YS130 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-14130 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
1 | ||
| 84540-30240 |
GS130,131..SPC;JZS13#,MS135,137 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
JZS13#,MS137,UZS131 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02004 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL CORNERING |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30310 |
GS130,131,MS135,137..SPC,TWC E/G RELAY BLOCK |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39135 |
GS130,131,MS135,137 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-30100 |
JZS13#,UZS131 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29445 |
JZS13# |
1 | ||
| 89465-29175 |
GS130,131..HTWC,TWC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GS130,131,MS135,137..HTWC,TWC |
1 | ||
| 89615-22040 |
JZS13# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GS130,131,MS135,137..HTWC,TWC |
1 | ||
| 89615-22040 |
JZS13# |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-30010 |
GS130,131,MS135,137..EFI,TWC |
1 | ||
| 89621-26010 |
JZS13# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30031 |
GS130,131,JZS13#,MS135,137..SPC,TWC |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 90119-08063 | ||||
| 90119-08375 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-60616 | ||||
| 91665-40818 | ||||
| 93385-16025 | ||||
