JZS131-ATPQF (1990)
Toyota Crown
Production
Aug 1990
-
Oct 1991
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )JZS13#

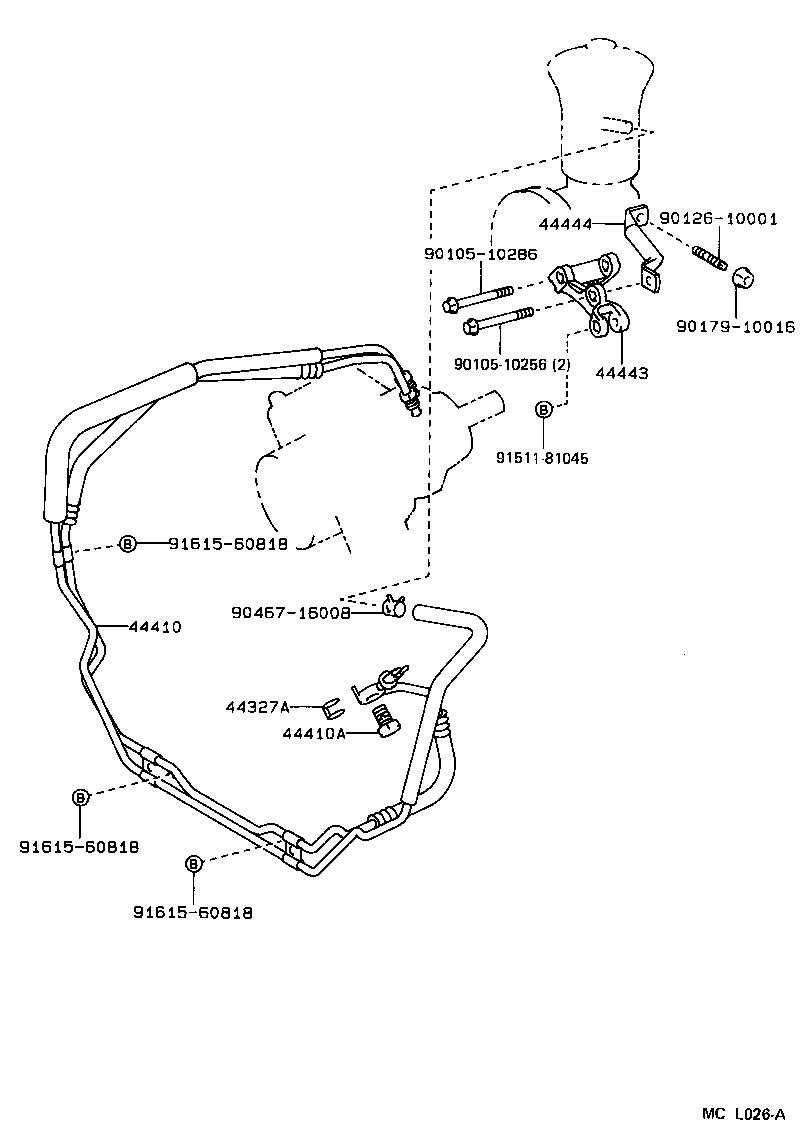

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
JZS13# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-30490 |
JZS13# |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16014 |
JZS13# |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22090 |
JZS13# |
1 | ||
| Common parts | ||||
| 90105-10256 | ||||
| 90105-10286 | ||||
| 90126-10001 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 91511-81045 | ||||
| 91615-60818 | ||||
