JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZS13#

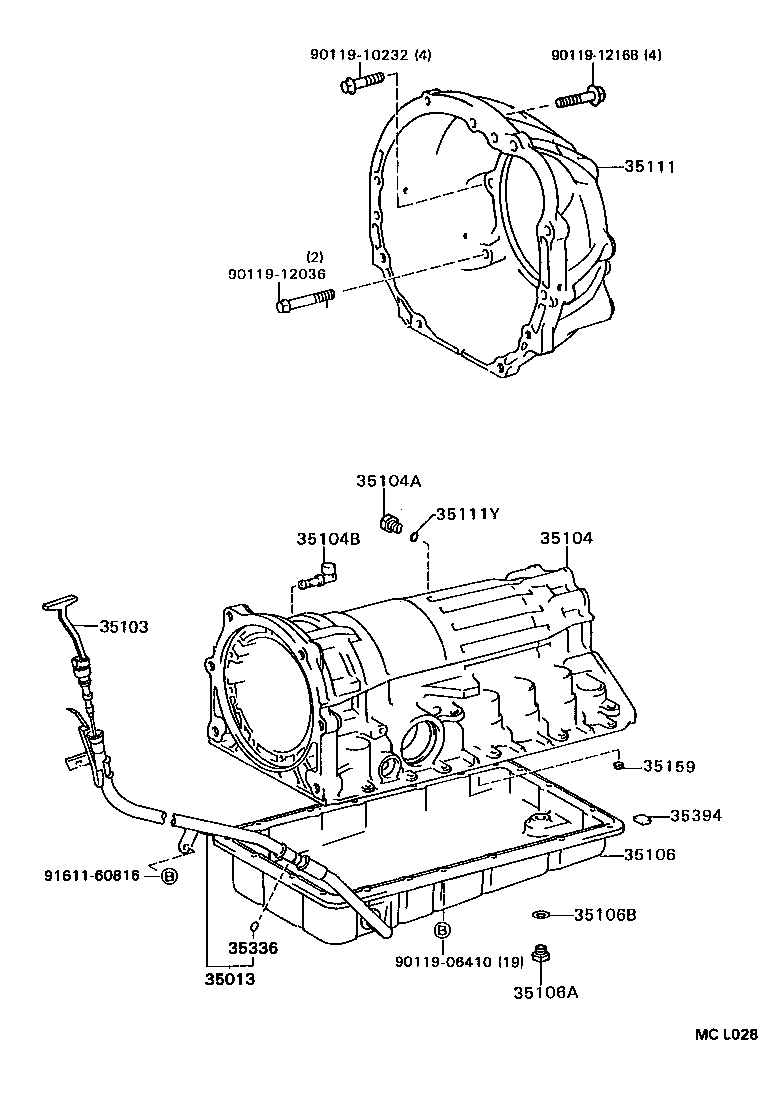

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35159 35336 35394 9011906410 9011910232 9011912036 9011912168 9161160816
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22291

JZS13#

 1
35013-30220

GS130,131..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30250

GS130,131..ATM..(EFI,HTWC,TWC,TWLPG)

 1
35103-22160

JZS13#

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30133

GS130,131..SPC;JZS13#,MS135,137

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

GS130,131,LS13#,MS13#..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30050

GS130,131,MS130..ATM..(EFI,HTWC,LPG,TWC)

 1
35106-22060

JZS13#

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22080

JZS13#

 1
35111-22081

JZS13#

 1
35111-24010

GS130,131..ATM..(EFI,HTWC,TWC,TWLPG)

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM

 2
35159 - GASKET, BRAKE DRUM
35159-30010

GS130,131..SPC;JZS13#,MS135,137,UZS131

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GS130,131,LS13#,MS13#,YS130..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

GS130,131..ATM..(EFI,HTWC,TWC)

 2
35394-30011

GS130,131..SPC;JZS13#,MS135,137,UZS131

 4
Common parts
90119-06410
90119-10232
90119-12036
90119-12168
91611-60816
