JZS131-ATPQF (1990)
Toyota Crown
(9008- )1JZGE,7MGE
12V 1.4KW

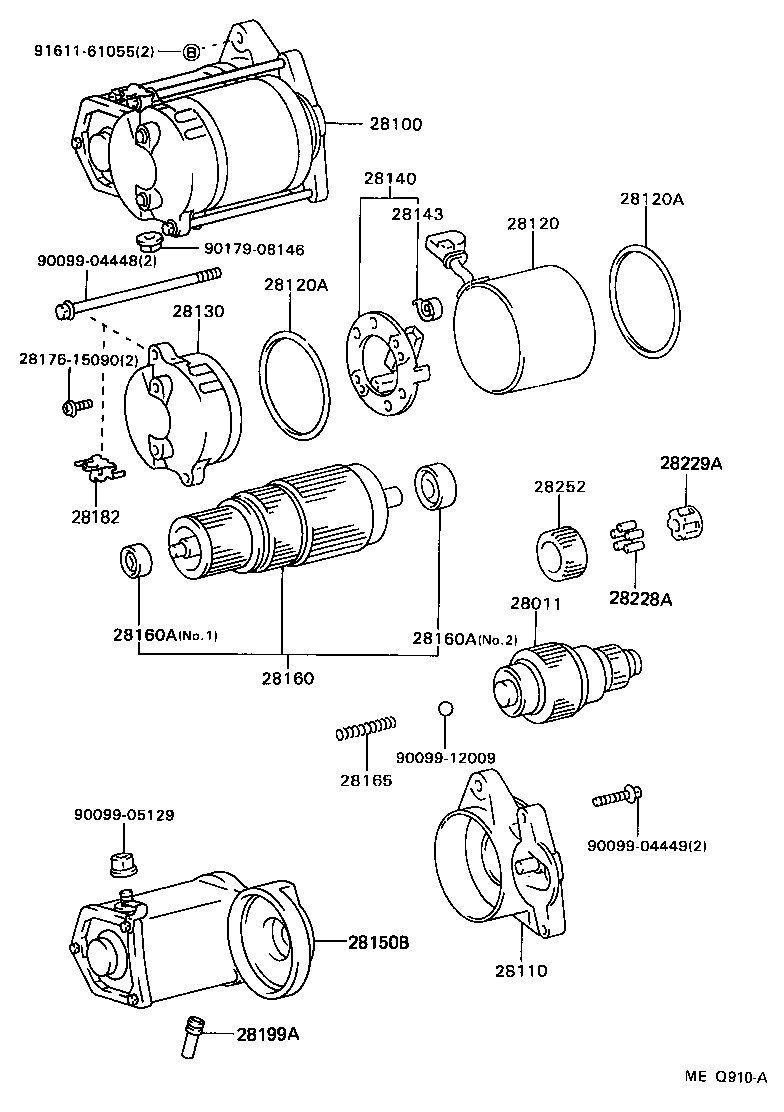

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-46080 |
1JZGE..JZS13# 12V 0.8KW |
1 | ||
| 28100-46100 |
1JZGE,7MGE..JZS13#,MS13# 12V 1.4KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-46080 |
1JZGE..JZS13# |
1 | ||
| 28110-46090 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-74070 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46090 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130-15190 |
1JZGE..JZS13# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-46080 |
1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13# |
1 | ||
| 28150-46090 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-46100 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-46080 |
1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13# |
1 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
1JZGE,7MGE..JZS13#,MS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
1JZGE..JZS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
