JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGE

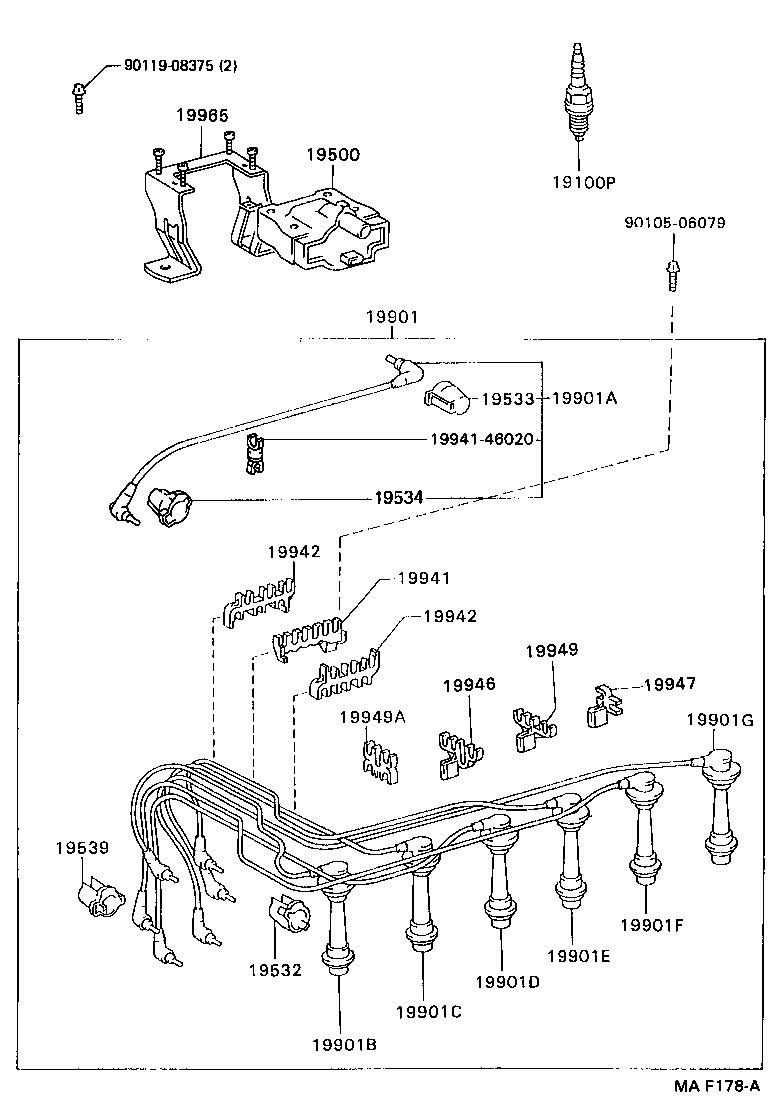

Click highlighted areas on diagram

diagram 19100P 19500 19531 19532 19533 19534 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19942 19946 19947 19949 19949A 19965 9010506079
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01178

1JZGE..JZS13#

PK20R11

 6
90919-01179

1JZGE..JZS13#

BKR6EP11

 6
90919-01169

1JZGE..JZS13#

BKR5EP−11

 6
90919-01168

1JZGE..JZS13#

PK16R11

 6
19500 - COIL ASSY, IGNITION
90919-02197

1JZGE..JZS13#

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-46010

1JZGE..JZS13#

NO.3,6

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1JZGE..JZS13#

NO.2,4

 2
19532-46010

1JZGE..JZS13#

NO.6

 1
19533 - HOLDER, RESISTIVE CORD, NO.3
19531-74010

1JZGE..JZS13#

 1
19534 - HOLDER, RESISTIVE CORD, NO.4
19539-70010

1JZGE..JZS13#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-46010

1JZGE..JZS13#

NO.1,5

 2
19539-46010

1JZGE..JZS13#

NO.5

 1
19539-16010

1JZGE..JZS13#

NO.3

 1
19539-62010

1JZGE..JZS13#

NO.2,4

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21532

1JZGE..JZS13#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
90919-21509

1JZGE..JZS13#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
19901A - CORD, COIL RESISTIVE
90919-13385

1JZGE..JZS13#

YAZAKI

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15325

1JZGE..JZS13#

 1
90919-12807

1JZGE..JZS13#

SUMITOMO

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15326

1JZGE..JZS13#

 1
90919-12883

1JZGE..JZS13#

YAZAKI

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12809

1JZGE..JZS13#

SUMITOMO

 1
90919-15327

1JZGE..JZS13#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12885

1JZGE..JZS13#

YAZAKI

 1
90919-15328

1JZGE..JZS13#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12946

1JZGE..JZS13#

YAZAKI

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15329

1JZGE..JZS13#

 1
90919-12881

1JZGE..JZS13#

SUMITOMO

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01277

1JZGE..JZS13#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

1JZGE..JZS13#

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

1JZGE..JZS13#

 2
19946 - CLAMP, RESISTIVE CORD, NO.3
90929-01279

1JZGE..JZS13#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90929-01280

1JZGE..JZS13#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90929-01285

1JZGE..JZS13#

 1
19949A - CLAMP, CORD, NO.6
19949-50010

1JZGE..JZS13#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03105

1JZGE..JZS13#

 1
Common parts
90105-06079

(9110-9609)1JZGE,2JZGE

Click highlighted areas on diagram

diagram 19100P 19500 19532 19533 19534 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 1994146020 19942 19942 19946 19947 19949 19949A 19965 9010506079 9011908375
Part # Description Qty Price
Common parts
19941-46020
90105-06079
90119-08375
