JZS131-ATPQF (1990)
Toyota Crown
Production
Aug 1990
-
Oct 1991
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )1JZGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-46040 |
1JZGE..JZS13# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-46040 |
1JZGE..JZS13# |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1JZGE..JZS13# |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1JZGE..JZS13# |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1JZGE..JZS13# |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1JZGE..JZS13# |
4 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10080 |
1JZGE..JZS13# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-46010 |
1JZGE..JZS13# |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-46010 |
1JZGE..JZS13# |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-46010 |
1JZGE..JZS13# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-46010 |
1JZGE..JZS13# |
1 | ||
| Common parts | ||||
| 90119-06610 | ||||
| 90445-08284 | ||||
| 90445-08285 | ||||
| 90447-08072 | ||||
| 90464-00065 | ||||
| 90464-00081 | ||||
| 90464-00298 | ||||
| 90464-00314 | ||||
| 90910-12107 | ||||
| 90999-92002 | ||||
| 91651-40816 | ||||

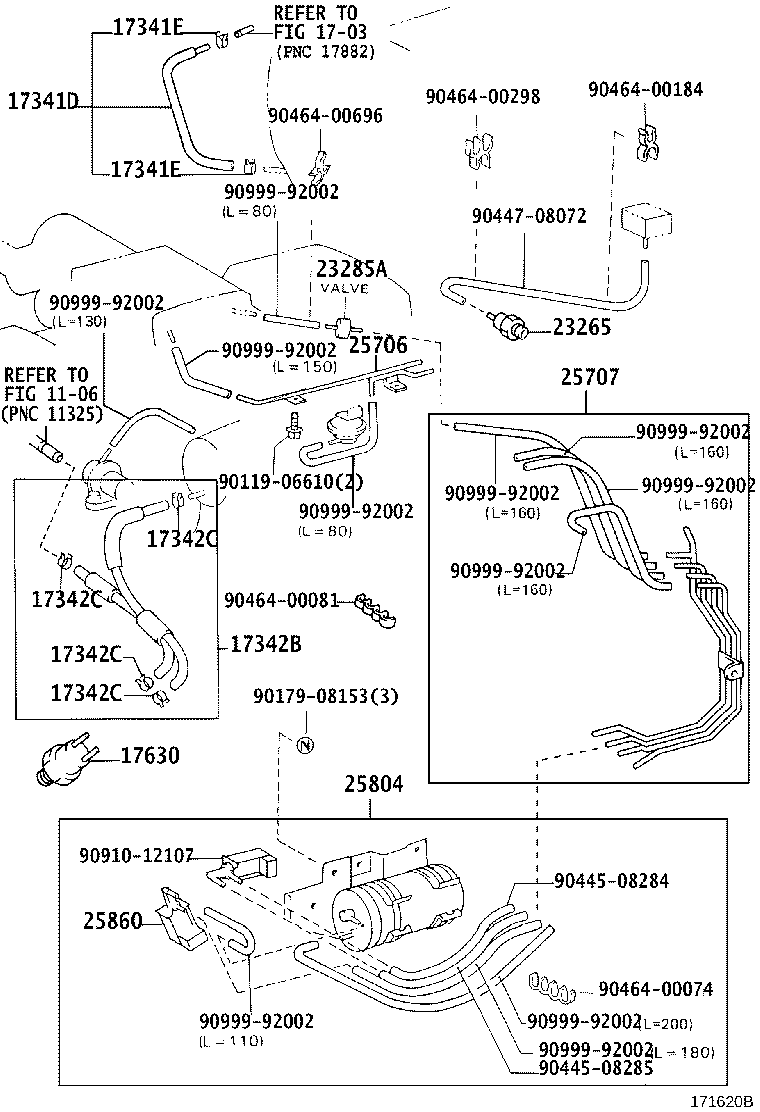

(9110-9609)1JZGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06610 | ||||
| 90179-08153 | ||||
| 90445-08284 | ||||
| 90445-08285 | ||||
| 90447-08072 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00184 | ||||
| 90464-00298 | ||||
| 90464-00696 | ||||
| 90910-12107 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
