JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGE

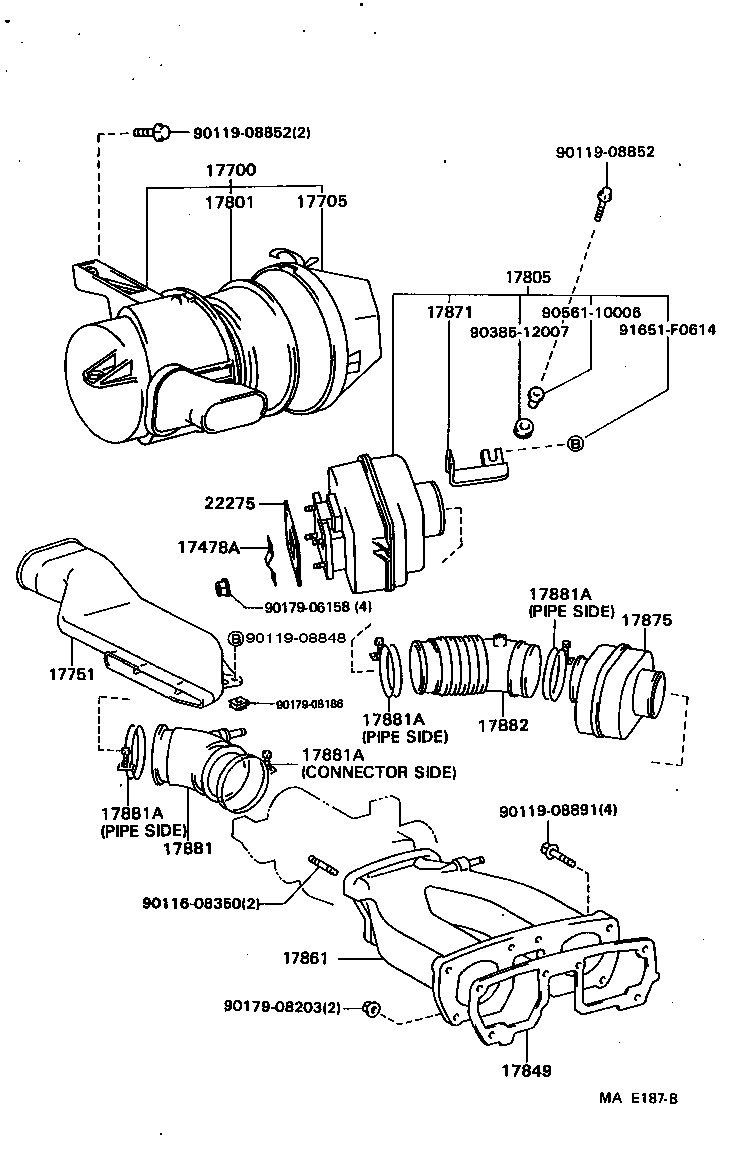

Click highlighted areas on diagram

diagram 17478A 17700 17705 17751 17801 17805 17849 17861 17871 17875 17881 17881A 17881A 17881A 17881A 17882 22275 9011608350 9011908848 9011908852 9011908852 9011908891 9017906158 9017908186 9017908203 9038512007 9056110006 91651F0614
Part # Description Qty Price
17478A - PLATE, LOCK
17478-43010

1JZGE..JZS13#

 2
17700 - CLEANER ASSY, AIR
17700-70080

1JZGE..JZS13#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-42130

1JZGE..JZS13#

 1
17751 - INLET, AIR CLEANER, NO.1
53299-30170

1JZGE..JZS13#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

1JZGE..JZS13#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-46010

1JZGE..JZS13#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46010

1JZGE..JZS13#

 1
17861 - CONNECTOR, INTAKE AIR
17860-46010

1JZGE..JZS13#

 1
17871 - STAY, AIR CONNECTOR
17871-46010

1JZGE..JZS13#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-46010

1JZGE..JZS13#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-46060

1JZGE..JZS13#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

1JZGE..JZS13#

CONNECTOR SIDE

 1
96111-10830

1JZGE..JZS13#

PIPE SIDE

 3
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

1JZGE..JZS13#

CONNECTOR SIDE

 1
96111-10830

1JZGE..JZS13#

PIPE SIDE

 3
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

1JZGE..JZS13#

CONNECTOR SIDE

 1
96111-10830

1JZGE..JZS13#

PIPE SIDE

 3
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

1JZGE..JZS13#

CONNECTOR SIDE

 1
96111-10830

1JZGE..JZS13#

PIPE SIDE

 3
17882 - HOSE, AIR CLEANER, NO.2
17882-46040

1JZGE..JZS13#

 1
22275 - GASKET, AIR FLOW METER
22275-43010

1JZGE..JZS13#

 1
Common parts
90116-08350
90119-08848
90119-08852
90119-08891
90179-06158
90179-08186
90179-08203
90385-12007
90561-10006
91651-F0614
