JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

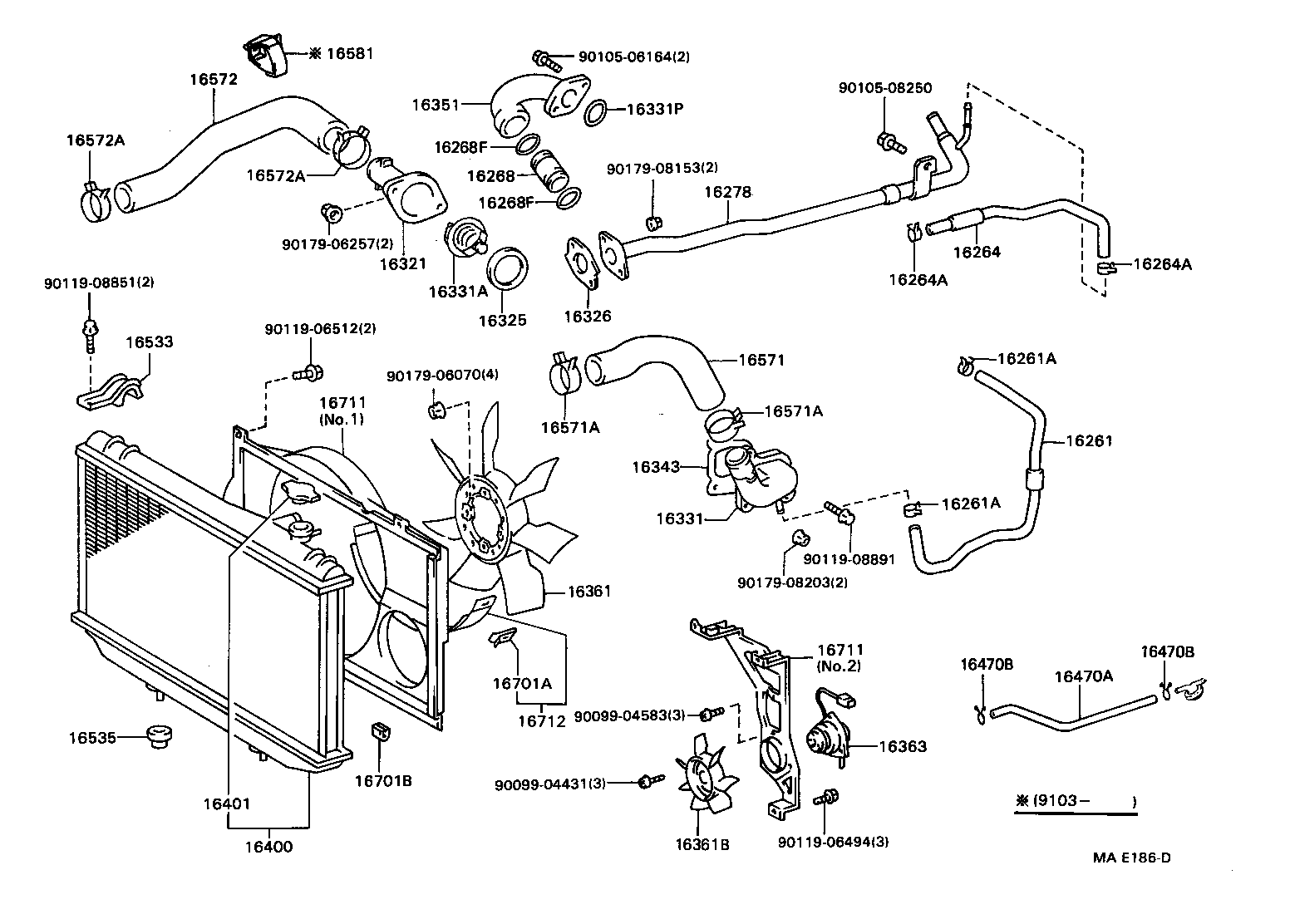

ILLUST NO. 1 OF 2(9008- )1JZGE

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16268 16268F 16268F 16278 16321 16325 16326 16331 16331A 16331P 16343 16351 16361 16361B 16363 16400 16401 16470A 16470B 16470B 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16581 16701A 16701B 16711 16711 16712 9009904431 9009904583 9010506164 9010508250 9011906494 9011906512 9011908851 9011908891 9017906070 9017906257 9017908153 9017908203
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-46020

1JZGE..JZS13#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13050

1JZGE..JZS13#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13050

1JZGE..JZS13#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-46010

1JZGE..JZS13#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13050

1JZGE..JZS13#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13050

1JZGE..JZS13#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-46010

1JZGE..JZS13#

 1
16268-46011

1JZGE..JZS13#

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24022

1JZGE..JZS13#

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24022

1JZGE..JZS13#

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-46010

1JZGE..JZS13#

 1
16321 - INLET, WATER
16321-46010

1JZGE..JZS13#

 1
16321-46040

1JZGE..JZS13#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-46010

1JZGE..JZS13#

 1
16331 - OUTLET, WATER
16331-46020

1JZGE..JZS13#

 1
16331A - THERMOSTAT
90916-03092

1JZGE..JZS13#

*WAX 82−95

 1
90916-03093

1JZGE..JZS13#

*WAX 82−95

 1
16331P - RING,O(FOR WATER OUTLET)
96761-24028

1JZGE..JZS13#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-46020

1JZGE..JZS13#

 1
16351 - OUTLET, WATER BY-PASS
16351-46010

1JZGE..JZS13#

 1
16361 - FAN
16361-46040

1JZGE..JZS13#

NO.1

 1
16361B - FAN, NO.2
16361-74040

1JZGE..JZS13#

 1
16363 - MOTOR, COOLING FAN
16363-74050

1JZGE..JZS13#

 1
16400 - RADIATOR ASSY
16400-46080

1JZGE..JZS13#

 1
16535 - SUPPORT, RADIATOR, LOWER
90480-35008

1JZGE..JZS13#

 2
16571 - HOSE, RADIATOR, INLET
16571-46040

1JZGE..JZS13#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

 2
90467-37006

1JZGE..JZS13#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

 2
90467-37006

1JZGE..JZS13#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-46041

1JZGE..JZS13#

 1
16572-46040

1JZGE..JZS13#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

RADIATOR SIDE

 1
90467-37002

1JZGE..JZS13#

 2
90467-41007

1JZGE..JZS13#

INLET SIDE

 1
90467-37006

1JZGE..JZS13#

ﾗｼﾞｴｰﾀ側

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1JZGE..JZS13#

 2
90467-37002

1JZGE..JZS13#

RADIATOR SIDE

 1
90467-37002

1JZGE..JZS13#

 2
90467-41007

1JZGE..JZS13#

INLET SIDE

 1
90467-37006

1JZGE..JZS13#

ﾗｼﾞｴｰﾀ側

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-46020

1JZGE..JZS13#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-05109

1JZGE..JZS13#

 2
90468-06013

1JZGE..JZS13#

 2
16701B - CUSHION, FAN SHROUD
90541-11002

1JZGE..JZS13#

 2
16711 - SHROUD, FAN
16711-46020

1JZGE..JZS13#

NO.1

 1
16711-46030

1JZGE..JZS13#

NO.2

 1
16711 - SHROUD, FAN
16711-46020

1JZGE..JZS13#

NO.1

 1
16711-46030

1JZGE..JZS13#

NO.2

 1
16712 - SHROUD, FAN, NO.2
16702-46010

1JZGE..JZS13#

 1
Common parts
90099-04431
90099-04583
90105-06164
90105-08250
90119-06494
90119-06512
90119-08851
90119-08891
90179-06070
90179-06257
90179-08153
90179-08203
