JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGE

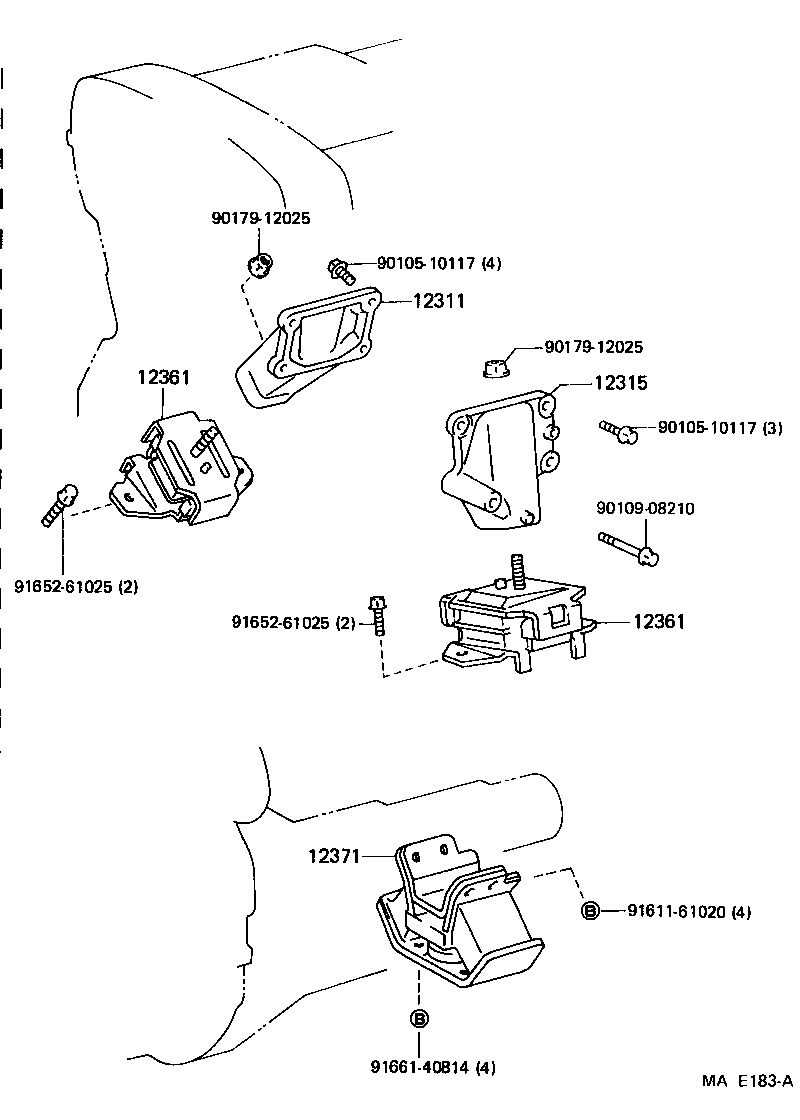

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9010510117 9010510117 9010908210 9017912025 9017912025 9161161020 9165261025 9165261025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46030

1JZGE..JZS13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46030

1JZGE..JZS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-46030

1JZGE..JZS13#

右側

 1
12362-46020

1JZGE..JZS13#

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-46030

1JZGE..JZS13#

右側

 1
12362-46020

1JZGE..JZS13#

左側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46010

1JZGE..JZS13#

 1
Common parts
90105-10117
90109-08210
90179-12025
91611-61020
91652-61025
91661-40814
