JZS131-ATPQF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGE

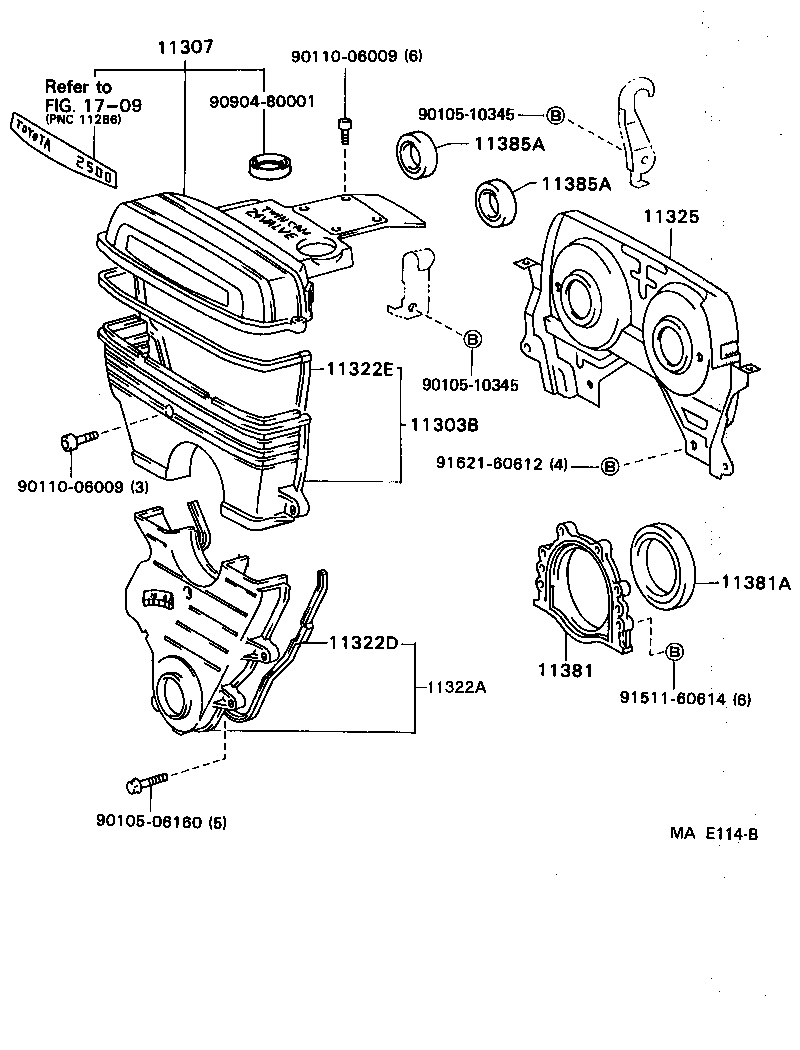

Click highlighted areas on diagram

diagram 11303B 11307 11322A 11322D 11322E 11325 11381 11381A 11385A 11385A 1709 9010506160 9010510345 9010510345 9011006009 9011006009 9090480001 9151160614 9162160612
Part # Description Qty Price
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-46010

1JZGE..JZS13#

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-46011

1JZGE..JZS13#

 1
11304-46010

1JZGE..JZS13#

 1
11322A - COVER, TIMING BELT, NO.1
11302-46020

1JZGE..JZS13#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-46020

1JZGE..JZS13#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-46010

1JZGE..JZS13#

 1
11325 - COVER, TIMING BELT, NO.4
11325-46010

1JZGE..JZS13#

 1
11325-46011

1JZGE..JZS13#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-46010

1JZGE..JZS13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90006

1JZGE..JZS13#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40014

1JZGE..JZS13#

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40014

1JZGE..JZS13#

 2
Common parts
90105-06160
90105-10345
90110-06009
90904-80001
91511-60614
91621-60612
Linked diagrams
1709

(9110-9609)1JZGE,2JZGE

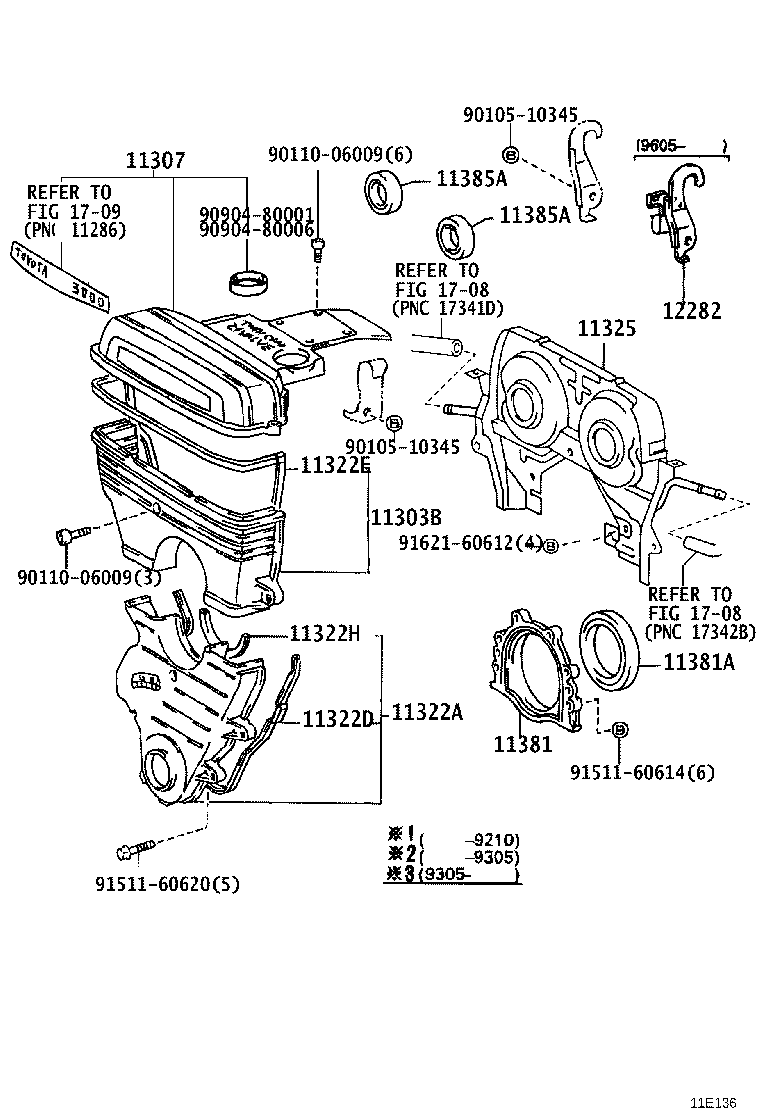

Click highlighted areas on diagram

diagram 11303B 11307 11322A 11322D 11322E 11322H 11325 11381 11381A 11385A 11385A 12282 1708 1708 1709 9010510345 9010510345 9011006009 9011006009 9090480001 9090480006 9151160614 9151160620 9162160612
Part # Description Qty Price
Common parts
90105-10345
90110-06009
90904-80001
90904-80006
91511-60614
91511-60620
91621-60612
Linked diagrams
1708
1709
