JZS131-ATPJF (1990)

Toyota Crown

Production Aug 1990 - Oct 1991
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZS131

Click highlighted areas on diagram

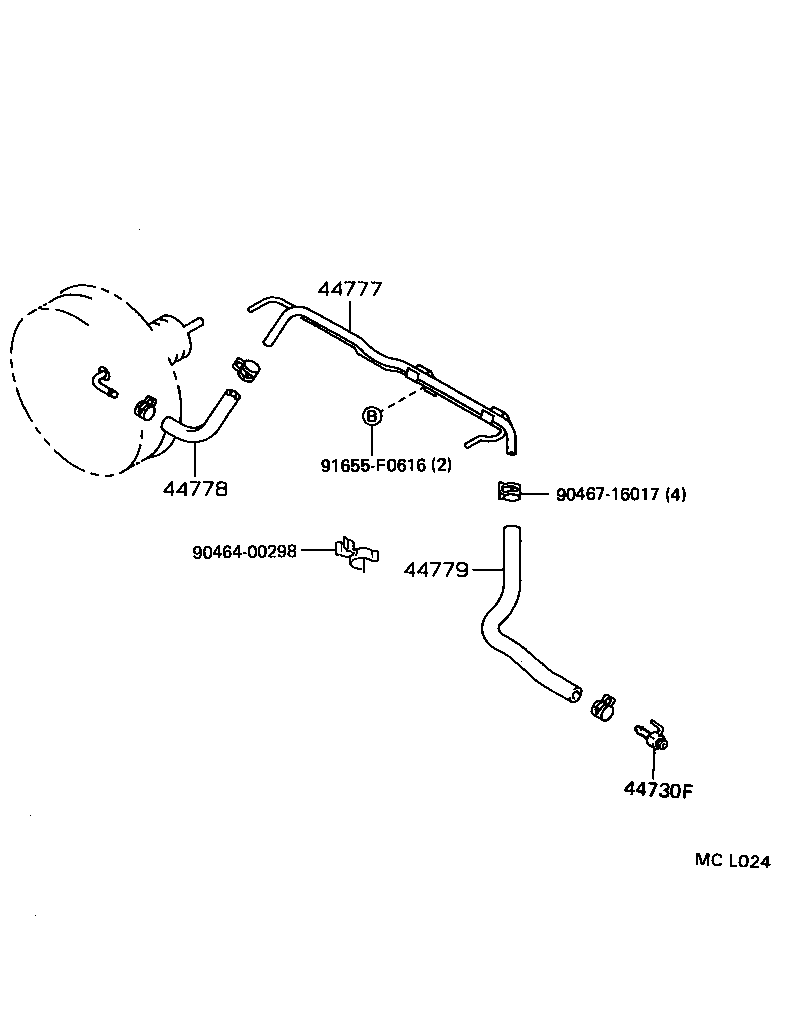

diagram 44730F 44777 44778 44779 9046400298 9046716017 91655F0616
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51320

GS130,131..(ROY,SAL,SALEX)..(EFI,HTWC,TWC)

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
90404-51319

GS131..SSL..SPC;GS13#,JZS13#,MS130..EFI,HTWC,LPG,TWC,TWLPG

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30140

GS130,131..HTWC,TWC

 1
44777-30120

GS130,131..(ROY,SAL,SALEX)..(HTWC,TWC)

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-30130

GS130,131,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC

 1
44779 - HOSE, UNION TO CONNECTOR
44779-30270

JZS13#

 1
Common parts
90464-00298
90467-16017
91655-F0616
