JZS131-AESQF (1991)
Toyota Crown
ILLUST NO. 3 OF 3(9110- )
O ﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||

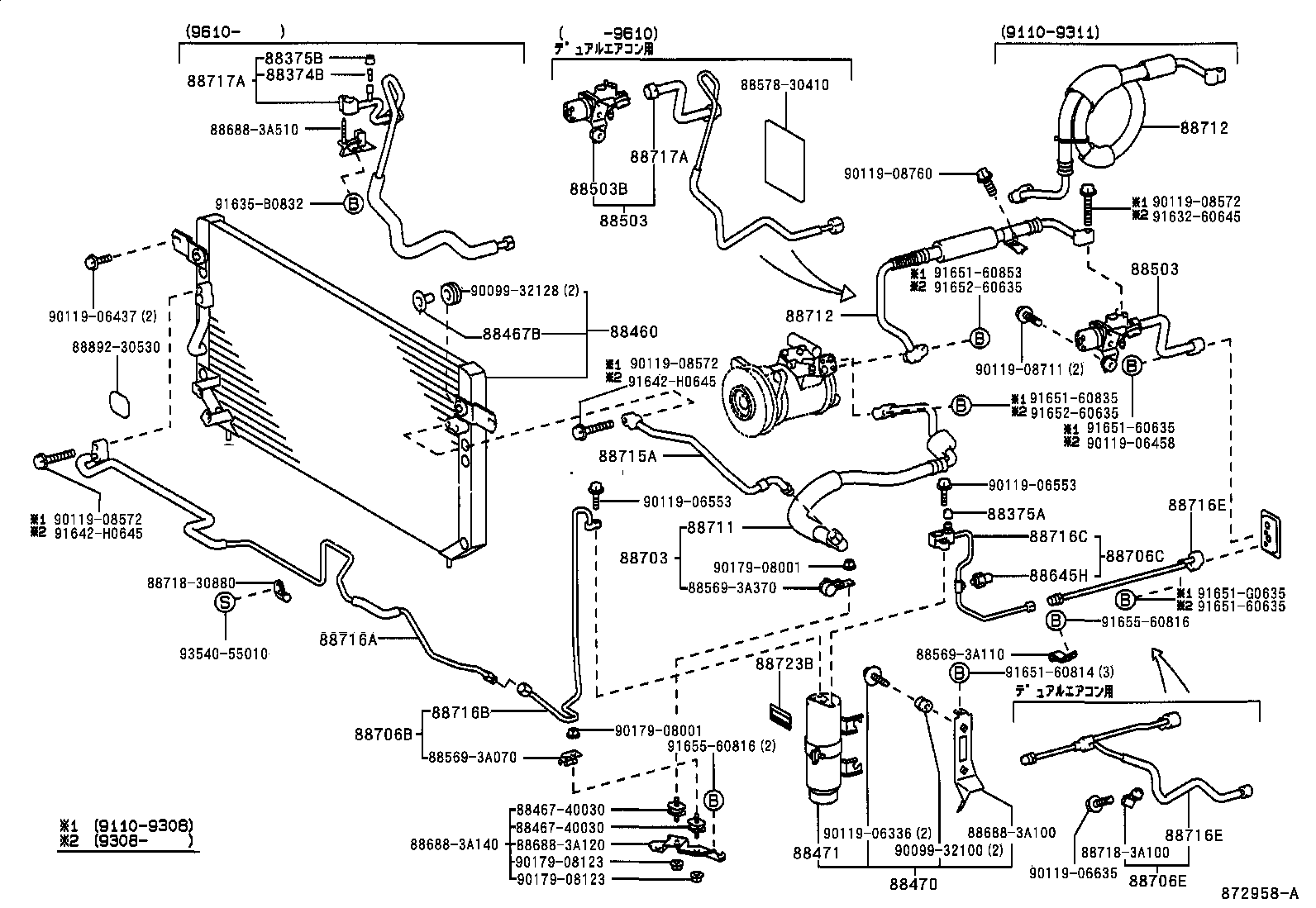

ILLUST NO. 1 OF 2(9110- )JZS13#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88375-24010 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30630 |
GS136,YS130..SDX,STD;GS130,131,JZS13#,LS130,131 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30520 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88470-30490 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30350 |
GS13#,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 88471-30370 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30540 |
JZS13#..ROY,ROYG |
1 | ||
| 88503-30640 |
JZS13#..ROY,ROYG |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30540 |
JZS13#..ROY,ROYG |
1 | ||
| 88503-30640 |
JZS13#..ROY,ROYG |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-30471 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
JZS13# |
2 | ||
| 88645-50010 |
JZS13# |
1 | ||
| 88645-22070 |
JZS13# |
1 | ||
| 88645-30281 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88645-22080 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88645-30340 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88645-30281 |
LS130,131 88706C TUBE |
1 | ||
| 88645-30310 |
LS130,131 88706B TUBE |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30440 |
LS130,131 |
1 | ||
| 88703-30490 |
JZS13# |
1 | ||
| 88703-30540 |
LS130,131 |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-30360 |
LS130,131 PLANT NO.A21-A26 |
1 | ||
| 88706-30410 |
LS130,131 PLANT NO.M21-M22 |
1 | ||
| 88706-30360 |
LS130,131 |
1 | ||
| 88706-30250 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88706-30250 |
JZS13# PLANT NO.A21-A26 |
1 | ||
| 88706-30250 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88706-30420 |
JZS13# PLANT NO.M21-M22 |
1 | ||
| 88706-30720 |
LS130,131 |
1 | ||
| 88706-30670 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88706-30260 |
GS130,131..ROY,SALEX,SDX PLANT NO.A21-A26 |
1 | ||
| 88706-30380 |
LS130,131 PLANT NO.M21-M22 |
1 | ||
| 88706-30440 |
JZS13# PLANT NO.A21-A26 |
1 | ||
| 88706-30370 |
LS130,131 PLANT NO.A21-A26 |
1 | ||
| 88706-30450 |
JZS13# PLANT NO.M21-M22 |
1 | ||
| 88706-30370 |
LS130,131 |
1 | ||
| 88706-30440 |
JZS13# |
1 | ||
| 88706-30310 |
GS130,131..ROY,SALEX,SDX PLANT NO.M21-M22 |
1 | ||
| 88706-30680 |
JZS13# |
1 | ||
| 88706E - TUBE SUB-ASSY, LIQUID, E | ||||
| 88706-30320 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88706-30620 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30860 |
JZS13# |
1 | ||
| 88711-30810 |
LS130,131 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A120 |
LS130,131 |
1 | ||
| 88712-3A121 |
LS130,131 |
1 | ||
| 88712-3A260 |
JZS13# |
1 | ||
| 88712-3A460 |
JZS13# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A120 |
LS130,131 |
1 | ||
| 88712-3A121 |
LS130,131 |
1 | ||
| 88712-3A260 |
JZS13# |
1 | ||
| 88712-3A460 |
JZS13# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30530 |
GS13#,JZS13# |
1 | ||
| 88715-30500 |
GS136..SDX,STD;GS130,131,JZS13# |
1 | ||
| 88715-30480 |
LS130,131 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A550 |
GS136..SDX;GS130,131,JZS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 88726-3A780 |
GS136..SDX;GS130,131,JZS13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3A100 |
JZS13# PLANT NO.A21-A26 |
1 | ||
| 88726-3A380 |
LS130,131 PLANT NO.M21-M22 |
1 | ||
| 88726-3A330 |
LS130,131 PLANT NO.A21-A26 |
1 | ||
| 88726-3A390 |
JZS13# PLANT NO.M21-M22 |
1 | ||
| 88726-3A100 |
GS13#,JZS13#,YS130 |
1 | ||
| 88726-3A330 |
LS130,131 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-3A110 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88726-3A320 |
LS130,131 PLANT NO.M21-M22 |
1 | ||
| 88726-3A310 |
LS130,131 PLANT NO.A21-A26 |
1 | ||
| 88726-3K050 |
LS130,131 |
1 | ||
| 88726-3A110 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX PLANT NO.A21-A26 |
1 | ||
| 88726-3A250 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX PLANT NO.M21-M22 |
1 | ||
| 88726-3A310 |
LS130,131 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-3A050 |
JZS13#..ROY,ROYG |
1 | ||
| 88726-3A070 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88726-3A720 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-3A050 |
JZS13#..ROY,ROYG |
1 | ||
| 88726-3A070 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88726-3A720 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A260 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A260 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28120 |
JZS13#..ROY,ROYG |
1 | ||
| 88723-20030 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88723-30010 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88723-50140 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88569-3A070 | ||||
| 88569-3A110 | ||||
| 88569-3A370 | ||||
| 88578-30410 | ||||
| 88688-3A100 | ||||
| 88688-3A120 | ||||
| 88688-3A140 | ||||
| 88688-3A510 | ||||
| 88718-30880 | ||||
| 88718-3A100 | ||||
| 88892-30530 | ||||
| 90099-32100 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90119-06437 | ||||
| 90119-06458 | ||||
| 90119-06553 | ||||
| 90119-06635 | ||||
| 90119-08572 | ||||
| 90119-08711 | ||||
| 90119-08760 | ||||
| 90179-08001 | ||||
| 90179-08123 | ||||
| 91632-60645 | ||||
| 91635-B0832 | ||||
| 91642-H0645 | ||||
| 91651-60635 | ||||
| 91651-60814 | ||||
| 91651-60835 | ||||
| 91651-60853 | ||||
| 91651-G0635 | ||||
| 91652-60635 | ||||
| 91655-60816 | ||||
| 93540-55010 | ||||

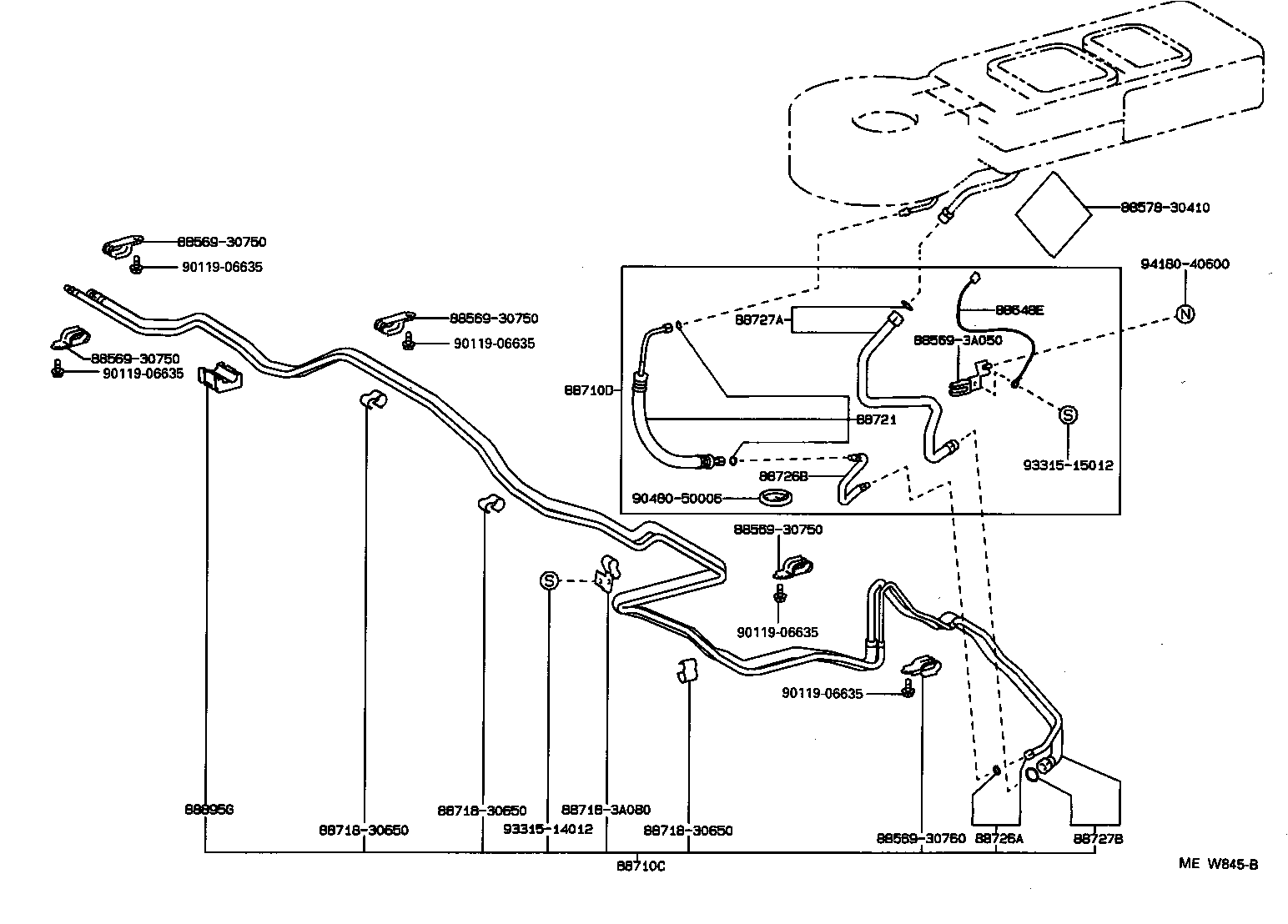

ILLUST NO. 2 OF 3(9110-9512)GS131,JZS131,133,135,LS131
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88648E - WIRING, COOLER | ||||
| 88648-30550 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 88648-30890 |
GS130,131,JZS131,133,135,LS13#..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-30430 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88710-30720 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-30460 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88710-30740 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5 | ||||
| 88721-30310 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88721-30370 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88721-30310 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A040 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88726-3A840 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3A020 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88726-3A850 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A510 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88727-30720 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-30740 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88727-3A500 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 88895G - BUSH | ||||
| 88895-30640 |
JZS130..ROY;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| Common parts | ||||
| 88569-30750 | ||||
| 88569-30760 | ||||
| 88569-3A050 | ||||
| 88578-30410 | ||||
| 88718-30650 | ||||
| 88718-3A080 | ||||
| 90119-06635 | ||||
| 90480-50006 | ||||
| 93315-14012 | ||||
| 93315-15012 | ||||
| 94180-40600 | ||||
