JZS131-AESQF (1991)
Toyota Crown
(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-30040 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-30040 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-30380 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-30020 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-30020 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-30020 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-30020 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53209-30120 |
GS130..ROY;GS130..WG..SALEX;GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 53221B - BRACE, RADIATOR SUPPORT APRON, RH | ||||
| 53221-30900 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53221-30900 |
GS13#,JZS13#,LS13# |
1 | ||
| 53222B - BRACE, RADIATOR SUPPORT APRON, LH | ||||
| 53222-30900 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53222-30900 |
GS13#,JZS13#,LS13# |
1 | ||
| 53295A - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-30040 |
JZS13#..4HC;GS131,JZS130,131,LS130,131..4FC..SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 53293-30070 |
JZS13#..4HC;GS131,JZS130,131,LS130,131..4FC..SALEX |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-3A030 |
GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 53701-3A030 |
GS13#,JZS130,131,133,LS13# |
1 | ||
| 53701-3A010 |
JZS130,131,133,LS131 ｱﾘ(*66) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-30620 |
GS13#,JZS13#,LS13# |
1 | ||
| 53738A - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-30060 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 53739A - SEAL, FRONT FENDER APRON, REAR LH | ||||
| 53739-30040 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 53799A - COVER, STEERING GEAR BOX SERVICE HOLE | ||||
| 53799-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 53799-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-30752 |
GS130,131,JZS13#..ATM..(HTWC,TWC) |
1 | ||
| 55108B - BRACE SUB-ASSY, DASH TO FRAME, RH | ||||
| 55108-30070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55108-30070 |
GS13#,JZS13#,LS13# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55211-30550 |
GS13#,JZS130,131,YS130 |
1 | ||
| 55211-30550 |
GS13#,JZS130,131 |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-30260 |
GS130,136,JZS130,131,YS130..4H,4HC |
1 | ||
| 55213-30260 |
GS130,136,JZS130,131..4H,4HC |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-30100 |
GS130..SED..SALEX;GS131,JZS13#,LS13# |
1 | ||
| 55237A - PLATE, DASH PANEL INSULATOR, NO.1 | ||||
| 55237-30010 |
GS130..SED..SALEX;GS131,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90119-06403 | ||||
| 90333-15002 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-0502022 | ||||
| 90467-05065 | ||||
| 90467-07081 | ||||
| 90467-07117 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90467-08056C0 | ||||
| 90467-08136 | ||||
| 90467-11044 | ||||
| 90467-12038 | ||||
| 90467-18014 | ||||
| 90561-16004 | ||||
| 90950-01027 | ||||
| 90950-01088 | ||||
| 90950-01379 | ||||
| 90950-01506 | ||||
| 90950-01616 | ||||
| 90950-06124 | ||||
| 91651-60816 | ||||
| 91661-60816 | ||||
| 91666-40820 | ||||

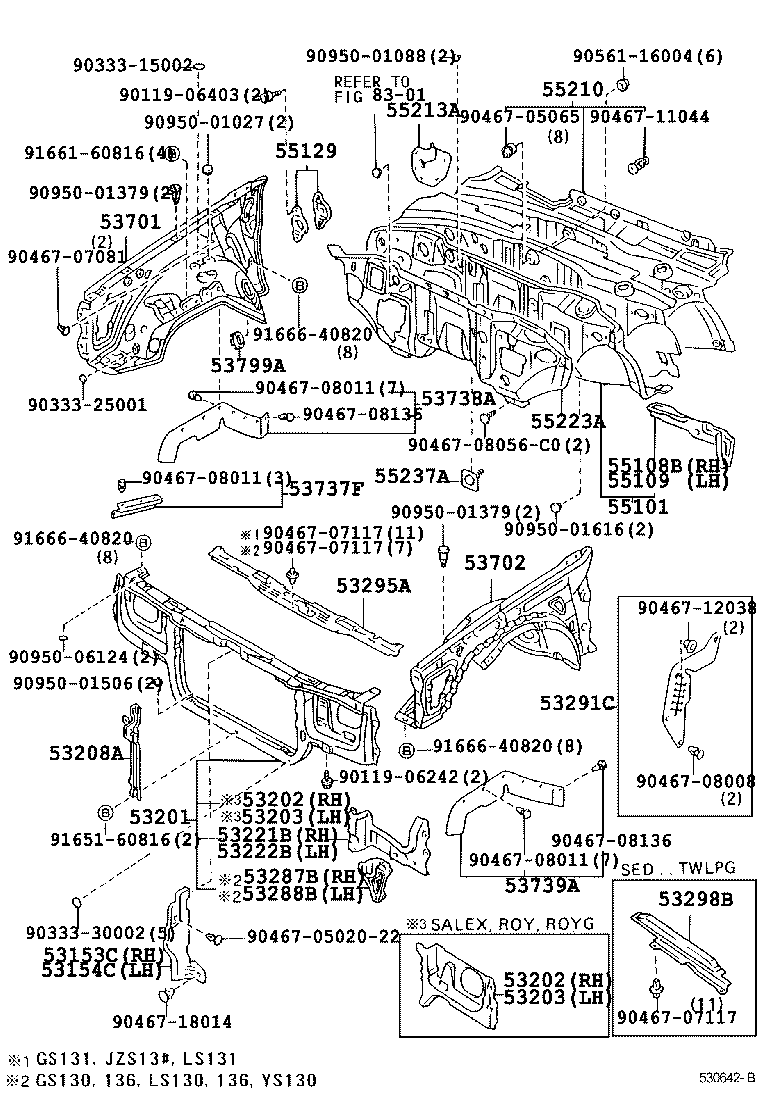

| Linked diagrams | ||||
| 8301 | ||||
