JZS131-AESJF (1991)
Toyota Crown

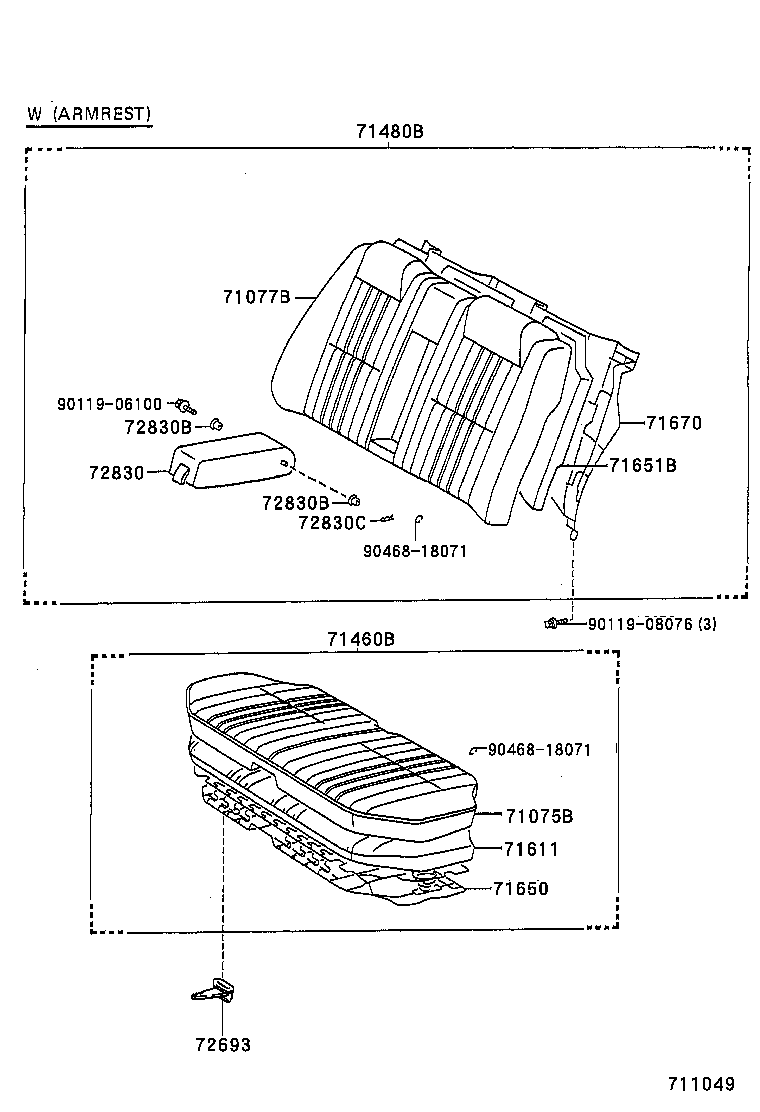

ILLUST NO. 1 OF 4(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30730E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30730J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71065-30731E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30731J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A890J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077-3A890E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A050E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A050J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A051J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A051E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F110E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F110J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F111E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F111J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30740 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
1 | ||
| 71611-30740 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30460 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30840 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30590 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30020 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
2 | ||
| 72693-30020 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30720J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830-30720E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||

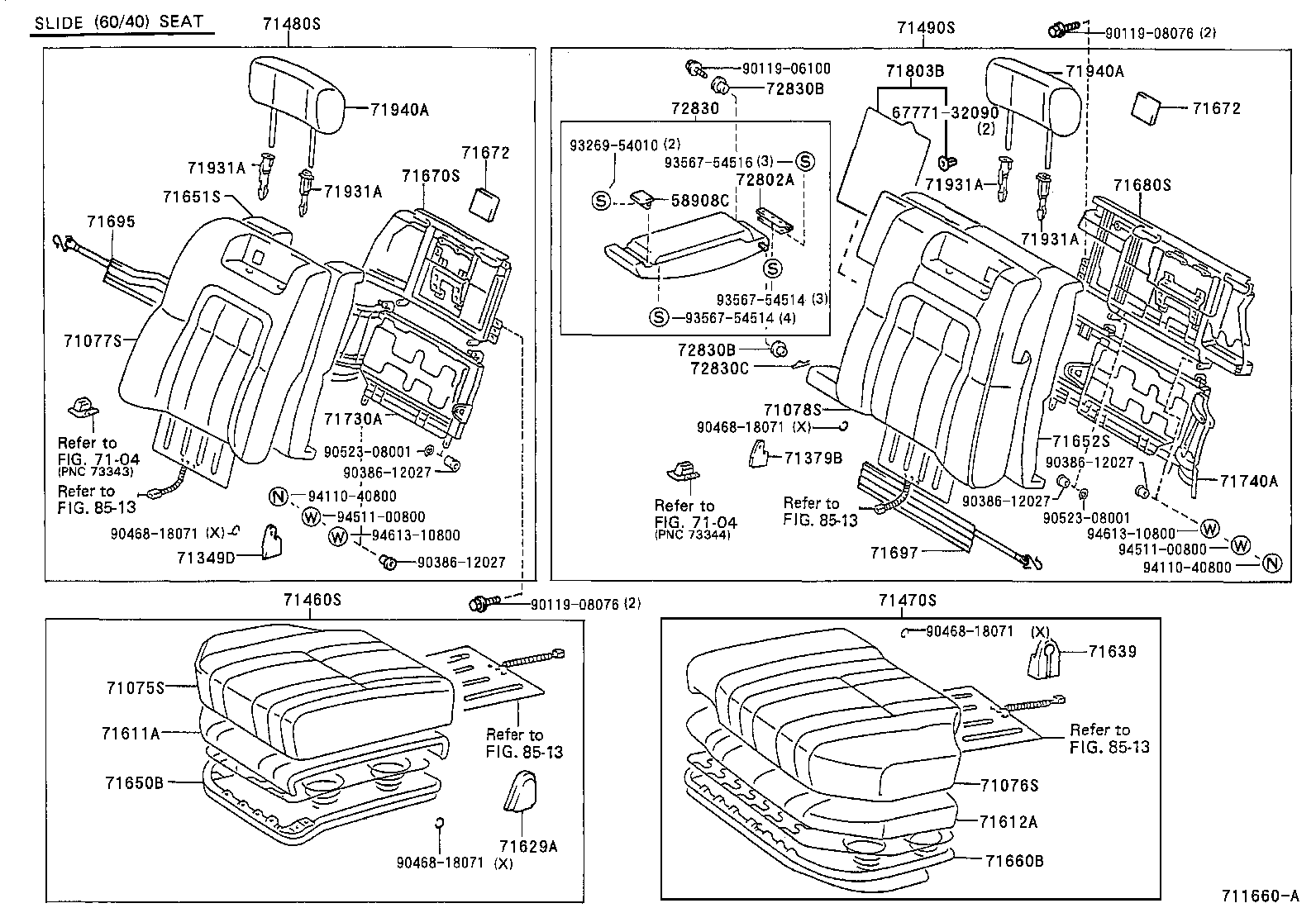

ILLUST NO. 1 OF 4(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 72809-30040E0 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 72809-30040J0 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX DK.BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30511E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30511E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30020 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30720J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830-30720E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90386-12027 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93269-54010 | ||||
| 93567-54514 | ||||
| 93567-54516 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||

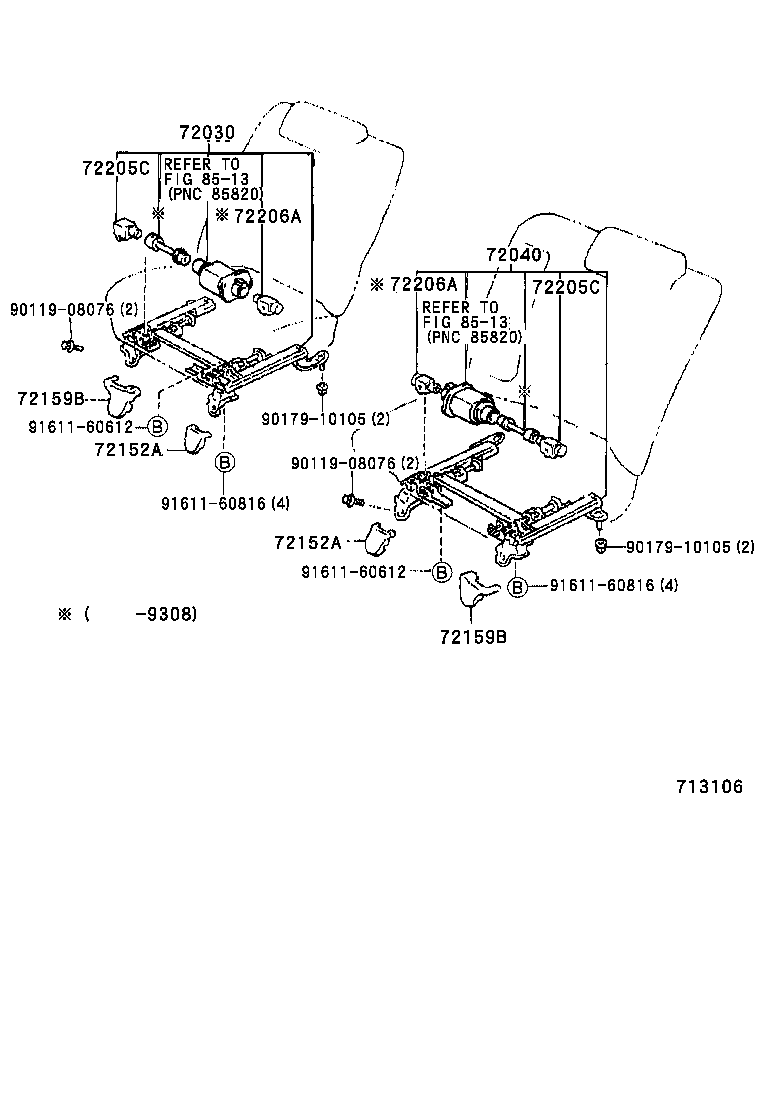

ILLUST NO. 3 OF 4(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08076 | ||||
| 90179-10105 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 4(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30730E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30730J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71065-30731E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30731J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A890J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077-3A890E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A050E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A050J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A051J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A051E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F110E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F110J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F111E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F111J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30740 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
1 | ||
| 71611-30740 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30460 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30840 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30590 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30020 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
2 | ||
| 72693-30020 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
2 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 4(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 72809-30040E0 |
GS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 72809-30040J0 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX DK.BLUE,TRIM8# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30730E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30730J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71065-30731E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71065-30731J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A890J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 71077-3A890E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 71077-3A891J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A050E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A050J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A051J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A051E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F110E0 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F110J0 |
GS130,131,JZS131,LS131..SALEX ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F111E2 |
GS130,131,JZS131,LS131..SALEX ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F111J2 |
GS130,131,JZS131,LS131..SALEX ***,DK. BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30740 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
1 | ||
| 71611-30740 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30460 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30840 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30590 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070J0 |
GS130..WG;GS130,LS130..ROY,SALEX;GS131,136,JZS13#,LS131,136 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS130..WG;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC) ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30511E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS130,131,JZS131,LS131..SALEX DK. BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30020 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
2 | ||
| 72693-30020 |
JZS131..SALEX;GS130,131,LS130,131,YS130..SED |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30020 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30720J1 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830-30720E1 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 72830-30860J0 |
GS130,131,JZS131,LS131..SALEX DK.BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
LS130..SDX;GS130,131,JZS131,133,135,LS131,YS130..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
| 93269-54010 | ||||
| 93567-54514 | ||||
| 93567-54516 | ||||

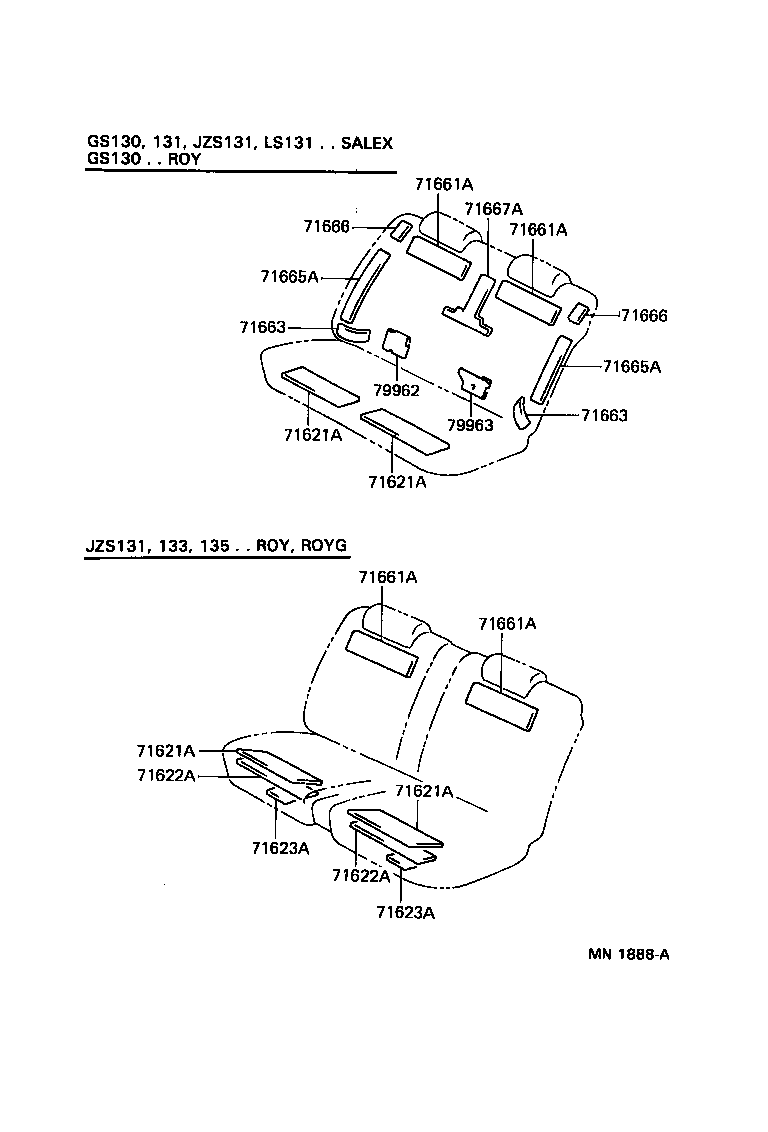

ILLUST NO. 4 OF 4(9112- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30310 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30310 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30310 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30310 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDE,TDEC,TWC) |
2 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71661-30250 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71661-30250 |
GS131,JZS131,LS131..SALEX |
2 | ||
| 71661-30250 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
2 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71661-30250 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71661-30250 |
GS131,JZS131,LS131..SALEX |
2 | ||
| 71661-30250 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
2 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71661-30250 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71661-30250 |
GS131,JZS131,LS131..SALEX |
2 | ||
| 71661-30250 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
2 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71661-30250 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71661-30250 |
GS131,JZS131,LS131..SALEX |
2 | ||
| 71661-30250 |
GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX |
2 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71663-30110 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71663-30110 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-30120 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-30120 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-30110 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-30110 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
2 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-30060 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX |
1 | ||
| 79962 - COVER, NO.2 SEAT BACK | ||||
| 79962-30020E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 79962-30020J0 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX DK.BLUE,TRIM8# |
1 | ||
| 79963 - COVER, NO.3 SEAT BACK | ||||
| 79963-30010E0 |
GS130,131,JZS131,LS131..SALEX QUARTZ,TRIM4# |
1 | ||
| 79963-30010J0 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX DK.BLUE,TRIM8# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
