JZS131-AESJF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

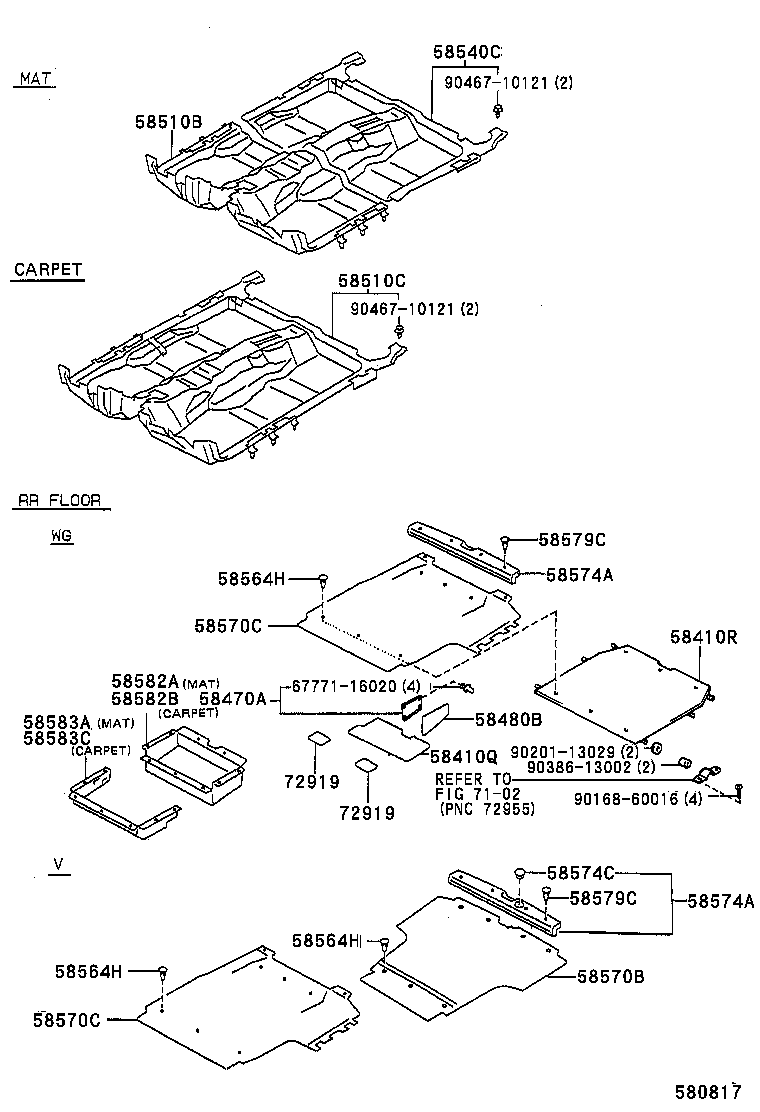

Click highlighted areas on diagram

diagram 58410Q 58410R 58470A 58480B 58510B 58510C 58540C 58564H 58564H 58564H 58570B 58570C 58570C 58574A 58574A 58574C 58579C 58579C 58582A 58582B 58583A 58583C 6777116020 7102 72919 72919 9016860016 9020113029 9038613002 9046710121 9046710121
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3F560J0

JZS131..4HC..SALEX

DK.BLUE,TRIM8#

 1
58510-3F560E0

JZS131..4HC..SALEX

QUARTZ,TRIM4#

 1
Common parts
67771-16020
90168-60016
90201-13029
90386-13002
90467-10121
Linked diagrams
7102
