JZS131-AESJF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1JZGE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9704)

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ *80)

diagram 45100 45108B 45129 45130 45131 45146 45186 45187 45197 45201P 5806 9014960085 9015950265
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,136,YS130..DLX,DLXA,SALEX,SDX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45100-30580E0

GS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK ROSE,TRIM4#

 1
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,YS130..(4FC,4H,4HC)..(DLX,DLXA,SALEX,SDX)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390E0

GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390J0

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..HTWC,TDE,TWC

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30480J0

JZS130,LS130,131..SALEX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & 4-SPOKE STEERING & ｱﾘ(ｷｶｲｼｷ *80),DK.BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG

 1
90179-12071

GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)

 1
Common parts
90149-60085
90159-50265
Linked diagrams
5806

(9110- )

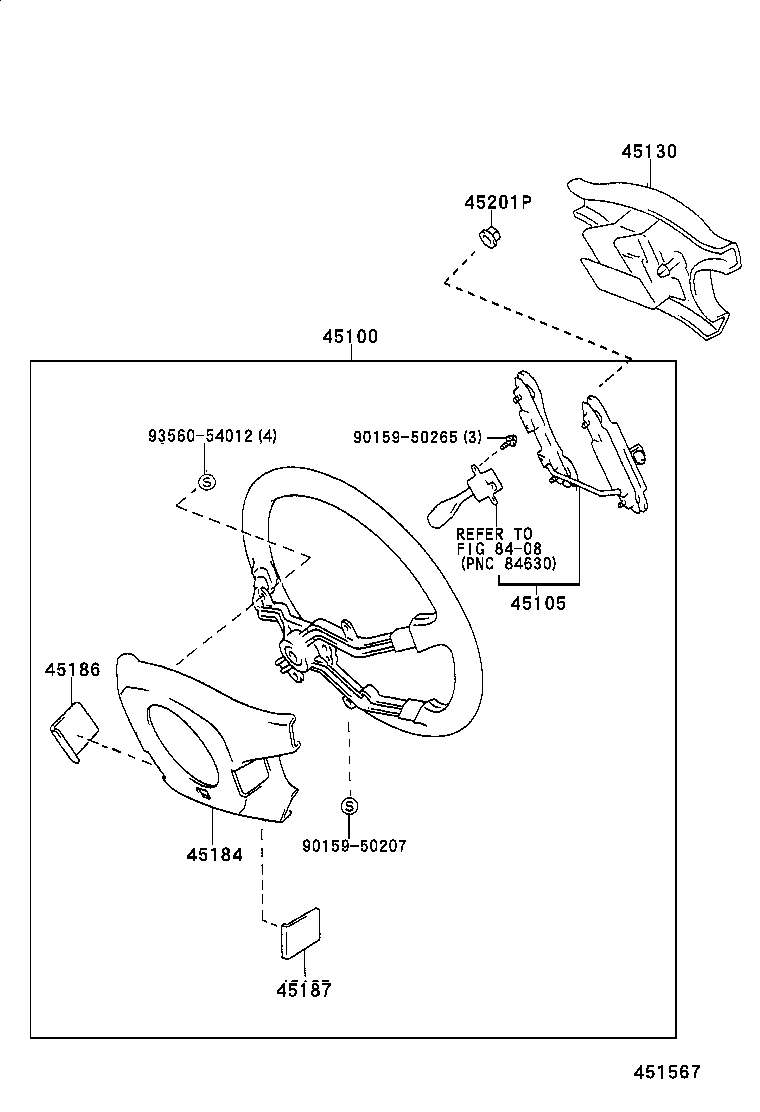

Click highlighted areas on diagram

4-SPOKE, ｱﾘ(ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ)

diagram 45100 45105 45130 45184 45186 45187 45201P 8408 9015950207 9015950265 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,136,YS130..DLX,DLXA,SALEX,SDX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45100-30580E0

GS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK ROSE,TRIM4#

 1
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,YS130..(4FC,4H,4HC)..(DLX,DLXA,SALEX,SDX)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390E0

GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390J0

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..HTWC,TDE,TWC

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30480J0

JZS130,LS130,131..SALEX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & 4-SPOKE STEERING & ｱﾘ(ｷｶｲｼｷ *80),DK.BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG

 1
90179-12071

GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)

 1
Common parts
90159-50207
90159-50265
93560-54012
Linked diagrams
8408

(9110- )

Click highlighted areas on diagram

3-SPOKE, PP

diagram 45100 45105 45112 45130 45131 45136 45180 45201P 9015950016 9351014008 9351015012 9351015012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,136,YS130..DLX,DLXA,SALEX,SDX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45100-30580E0

GS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK ROSE,TRIM4#

 1
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,YS130..(4FC,4H,4HC)..(DLX,DLXA,SALEX,SDX)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390E0

GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390J0

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..HTWC,TDE,TWC

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30480J0

JZS130,LS130,131..SALEX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & 4-SPOKE STEERING & ｱﾘ(ｷｶｲｼｷ *80),DK.BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-30060J0

GS130,131,JZS130,131,LS130,131,YS130..DLX,DLXA,ROY,SALEX,SDX

DARK BLUE,TRIM8#

 1
45180-30060J0

GS13#,JZS130,131,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

DARK BLUE,TRIM8#

 1
45180-30060E0

GS130,131,JZS130,131,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)

DARK ROSE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG

 1
90179-12071

GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)

 1
Common parts
90159-50016
93510-14008
93510-15012

(9110- )

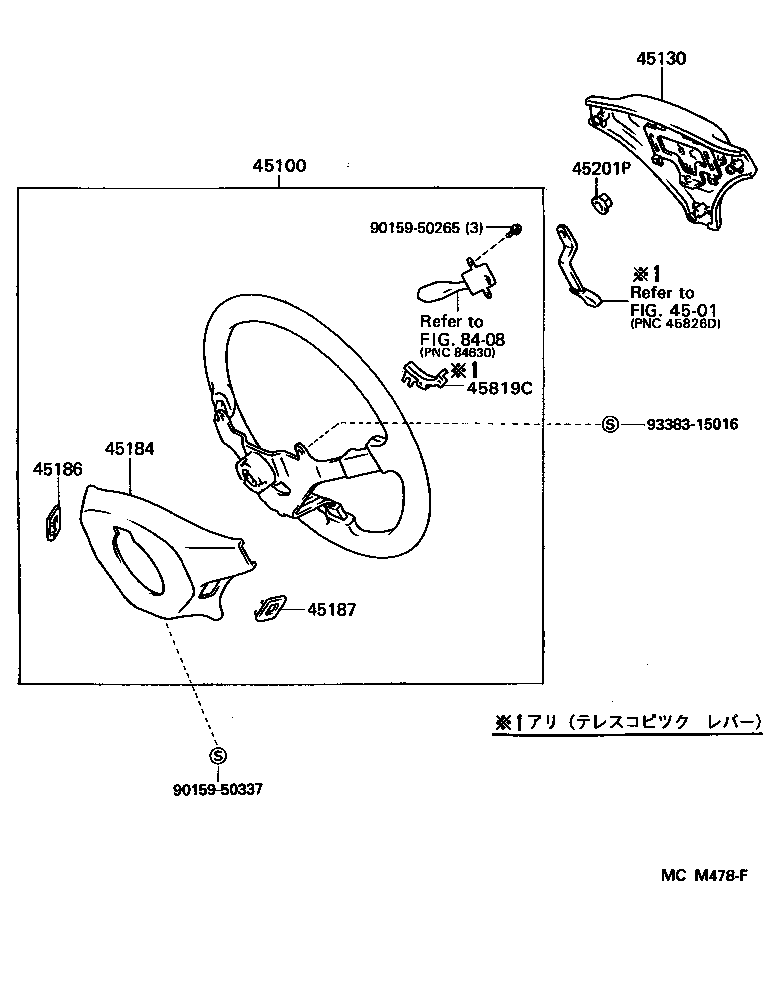

Click highlighted areas on diagram

3-SPOKE, ｱﾘ(ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ)

diagram 4501 45100 45130 45184 45186 45187 45201P 45819C 8408 9015950265 9015950337 9338315016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,136,YS130..DLX,DLXA,SALEX,SDX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45100-30580E0

GS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK ROSE,TRIM4#

 1
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,YS130..(4FC,4H,4HC)..(DLX,DLXA,SALEX,SDX)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390E0

GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390J0

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..HTWC,TDE,TWC

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30480J0

JZS130,LS130,131..SALEX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & 4-SPOKE STEERING & ｱﾘ(ｷｶｲｼｷ *80),DK.BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG

 1
90179-12071

GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)

 1
Common parts
90159-50265
90159-50337
93383-15016
Linked diagrams
4501
8408

(9110- )

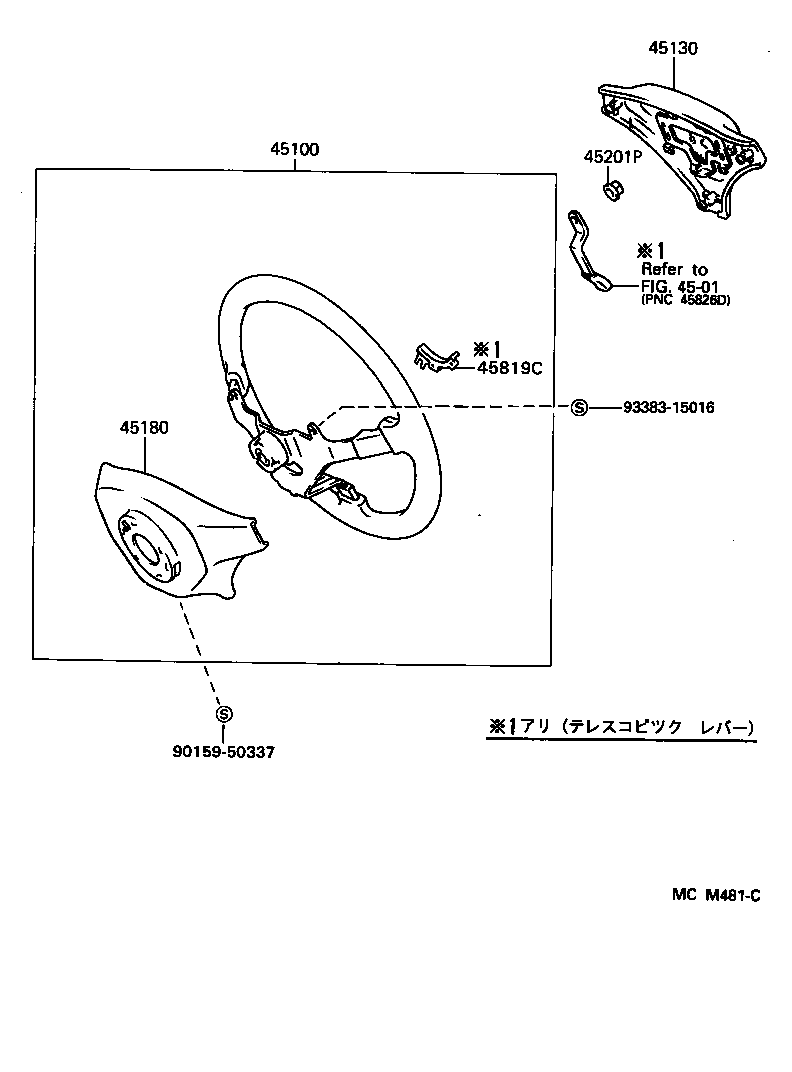

Click highlighted areas on diagram

3-SPOKE, URETHANE

diagram 4501 45100 45130 45180 45201P 45819C 9015950337 9338315016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,136,YS130..DLX,DLXA,SALEX,SDX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45100-30580E0

GS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK ROSE,TRIM4#

 1
45100-30580J0

GS130..DLX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC);GS136,JZS130,LS130,YS130..(4FC,4H,4HC)..(DLX,DLXA,SALEX,SDX)

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390E0

GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30390J0

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390J0

JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

3-SP0KE STEERING,DARK BLUE,TRIM8#

 1
45130-30390E0

JZS135..4HC;GS130,131,JZS130,131,133,LS130,131..HTWC,TDE,TWC

3-SP0KE STEERING,DARK ROSE,TRIM4#

 1
45130-30480J0

JZS130,LS130,131..SALEX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & 4-SPOKE STEERING & ｱﾘ(ｷｶｲｼｷ *80),DK.BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-30060J0

GS130,131,JZS130,131,LS130,131,YS130..DLX,DLXA,ROY,SALEX,SDX

DARK BLUE,TRIM8#

 1
45180-30060J0

GS13#,JZS130,131,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX

DARK BLUE,TRIM8#

 1
45180-30060E0

GS130,131,JZS130,131,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)

DARK ROSE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG

 1
90179-12071

GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX)

 1
Common parts
90159-50337
93383-15016
Linked diagrams
4501
