JZS131-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)SED

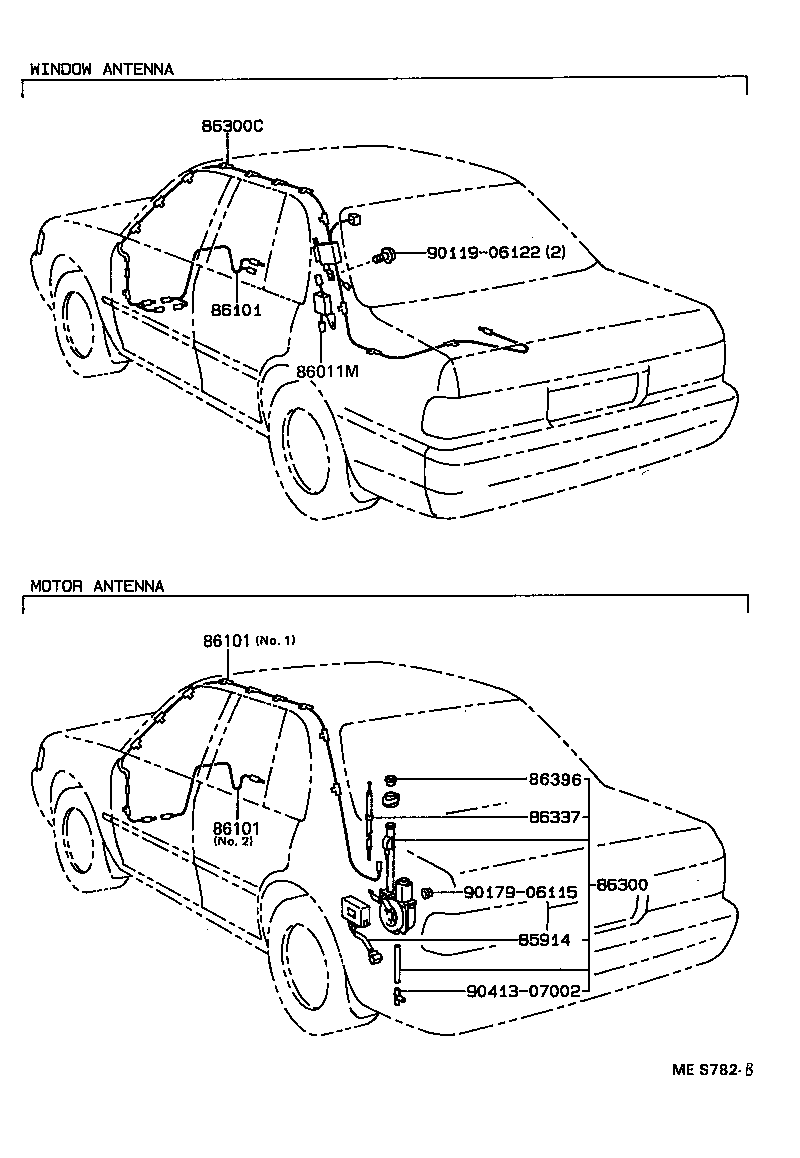

Click highlighted areas on diagram

diagram 85914 86011M 86101 86101 86101 86300 86300C 86337 86396 9011906122 9017906115 9041307002
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05230

JZS131,133,135..ROY,ROYG

 1
90980-05233

JZS131..SALEX;GS130,131,LS130,131,YS130..SED

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-30370

JZS131,133,135..ROY,ROYG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-30370

JZS131,133,135..ROY,ROYG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-30370

JZS131,133,135..ROY,ROYG

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30730

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.2

 1
86300-30710

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.1

 1
86300-3A030

JZS131,133..ROY

 1
86300-30740

JZS131,133,135..ROY,ROYG

 1
86300-30741

JZS131,133..ROY

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
Common parts
90119-06122
90179-06115
90413-07002

(9110-9512)SED

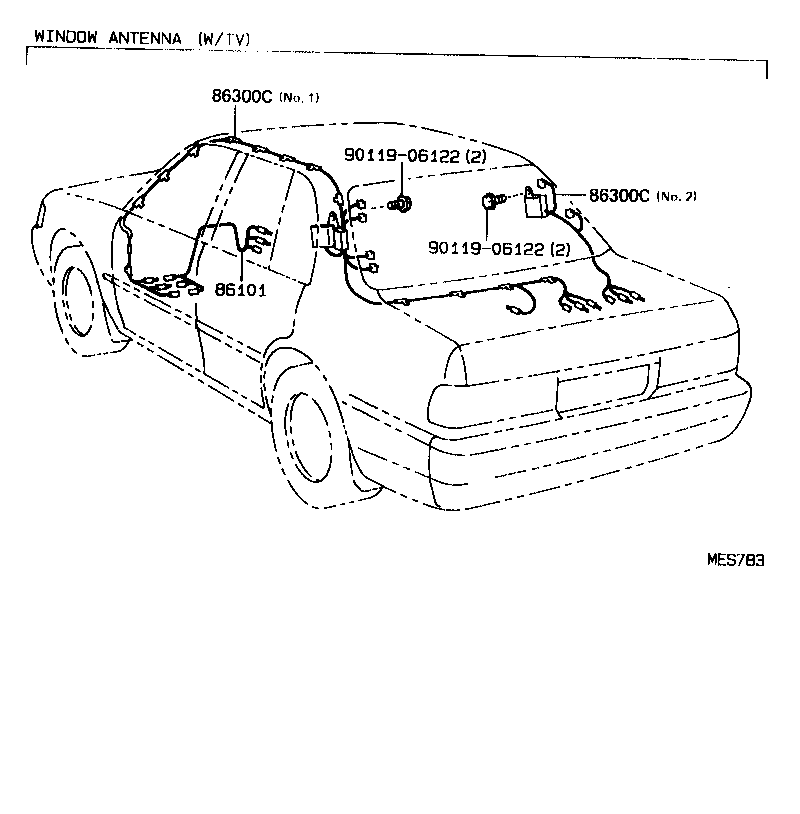

Click highlighted areas on diagram

diagram 86101 86300C 86300C 9011906122 9011906122
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-30370

JZS131,133,135..ROY,ROYG

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30740

JZS131,133,135..ROY,ROYG

 1
86300-30730

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.2

 1
86300-30710

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.1

 1
86300-3A030

JZS131,133..ROY

 1
86300-30741

JZS131,133..ROY

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30740

JZS131,133,135..ROY,ROYG

 1
86300-30730

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.2

 1
86300-30710

JZS131,133,135..4FC..(ROY,ROYG)

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),NO.1

 1
86300-3A030

JZS131,133..ROY

 1
86300-30741

JZS131,133..ROY

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
Common parts
90119-06122
