JZS131-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

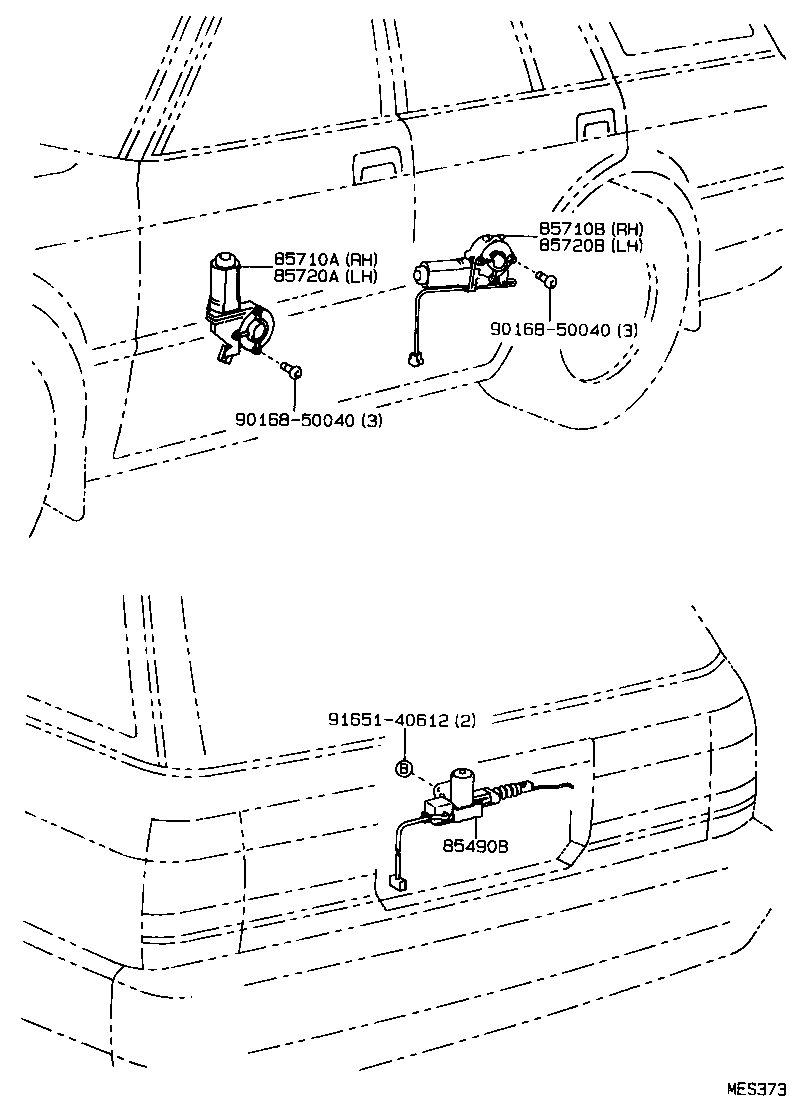

Click highlighted areas on diagram

diagram 85490B 85710A 85710B 85720A 85720B 9016850040 9016850040 9165140612
Part # Description Qty Price
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-30180

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
85710-30180

YS130;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-30190

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-30130

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-30140

YS130;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
85720-30140

GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX

 1
Common parts
90168-50040
91651-40612
