JZS131-AEPQF (1991)
Toyota Crown

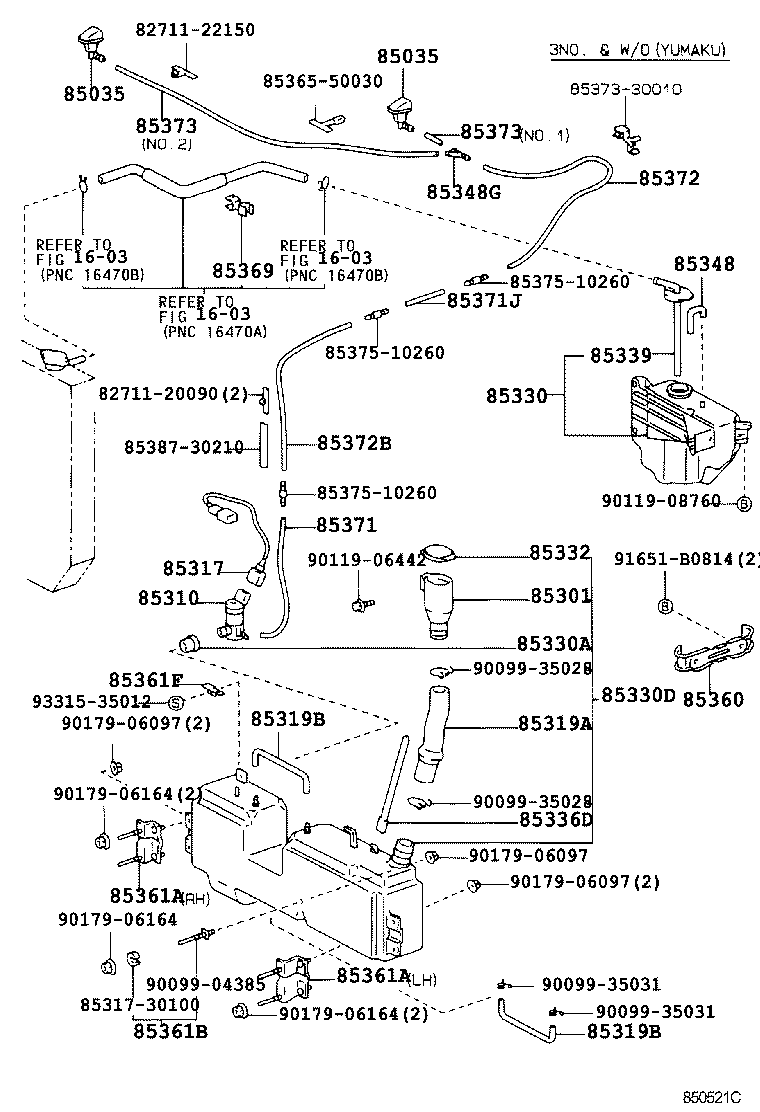

(9110- )GS130,131,LS130,131
ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,ﾅｼ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85318-30100 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85310-20210 |
GS130..WG..SDX;GS131,JZS13#,LS130,131;GS130..SED..(ROY,SALEX,SDX) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-30100 |
JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85315-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30130 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85334-30280 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85337-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
1 | ||
| 85337-30100 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85337-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
1 | ||
| 85337-30100 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85338-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85338-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=600 |
1 | ||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=500,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85371J - TUBE, RUBBER | ||||
| 90099-33075 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=1000 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=580 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX *H,L=1100 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-20090 | ||||
| 82711-22150 | ||||
| 85317-30100 | ||||
| 85365-50030 | ||||
| 85375-10260 | ||||
| 85387-30210 | ||||
| 90099-04385 | ||||
| 90099-35028 | ||||
| 90099-35031 | ||||
| 90119-06442 | ||||
| 90119-08760 | ||||
| 90179-06097 | ||||
| 90179-06164 | ||||
| 91651-B0814 | ||||
| 93315-35012 | ||||
| Linked diagrams | ||||
| 1603 | ||||

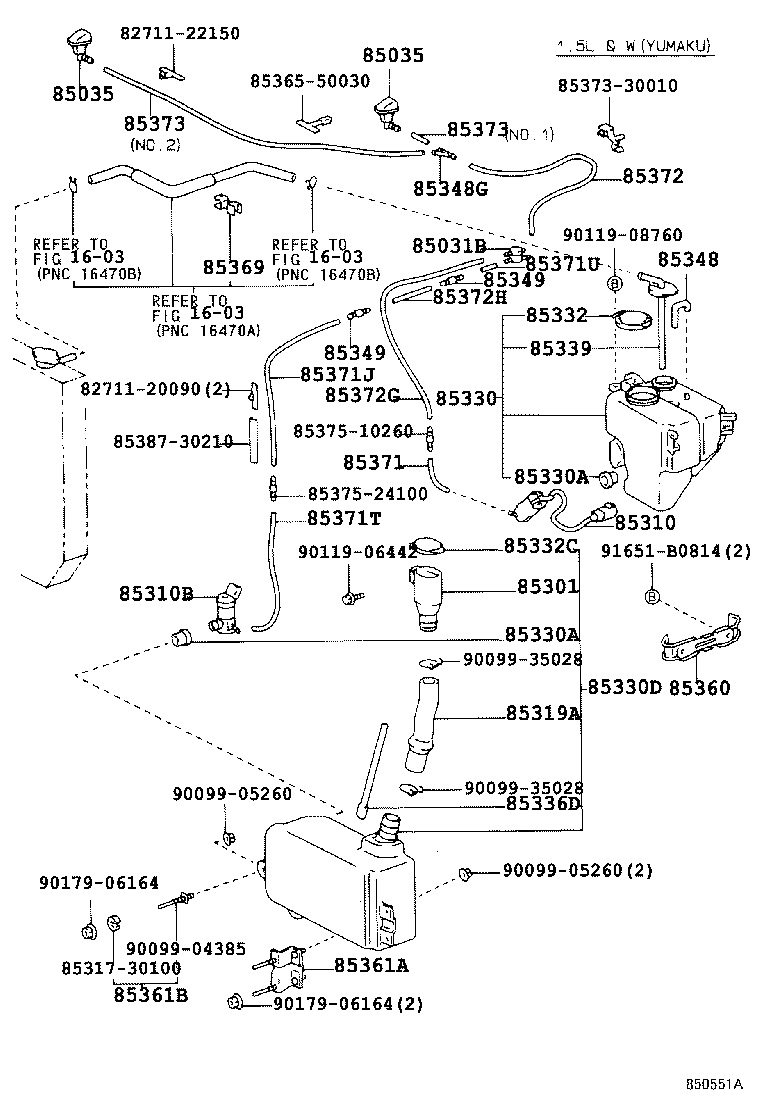

(9110- )GS130,JZS13#
ｱﾘ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85375-30240 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85318-30100 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85310-20210 |
GS130..WG..SDX;GS131,JZS13#,LS130,131;GS130..SED..(ROY,SALEX,SDX) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER | ||||
| 85340-30140 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85310-20190 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85330-30220 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30210 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-30100 |
JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85315-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85316-20350 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85316-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85316-30130 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30130 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85334-30280 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85334-22470 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85334-22470 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85337-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
1 | ||
| 85337-30100 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85338-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=600 |
1 | ||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=500,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85371J - TUBE, RUBBER | ||||
| 90099-33075 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=1000 |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33901 |
GS130,JZS13#..4FC..(ROY,ROYG) 長さ=220 |
1 | ||
| 90099-33075 |
JZS13#..4FC..(ROY,ROYG) *H,L=60,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33075 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=220 |
1 | ||
| 85371U - TUBE, RUBBER | ||||
| 90099-33729 |
GS130,JZS13#..4FC..(ROY,ROYG) 長さ=30 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=580 |
1 | ||
| 85372G - TUBE, RUBBER | ||||
| 90099-33080 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=240 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33729 |
JZS13#..4FC..(ROY,ROYG) 長さ=30,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=80 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-20090 | ||||
| 82711-22150 | ||||
| 85317-30100 | ||||
| 85365-50030 | ||||
| 85373-30010 | ||||
| 85375-10260 | ||||
| 85375-24100 | ||||
| 85387-30210 | ||||
| 90099-04385 | ||||
| 90099-05260 | ||||
| 90099-35028 | ||||
| 90119-06442 | ||||
| 90119-08760 | ||||
| 90179-06164 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 1603 | ||||

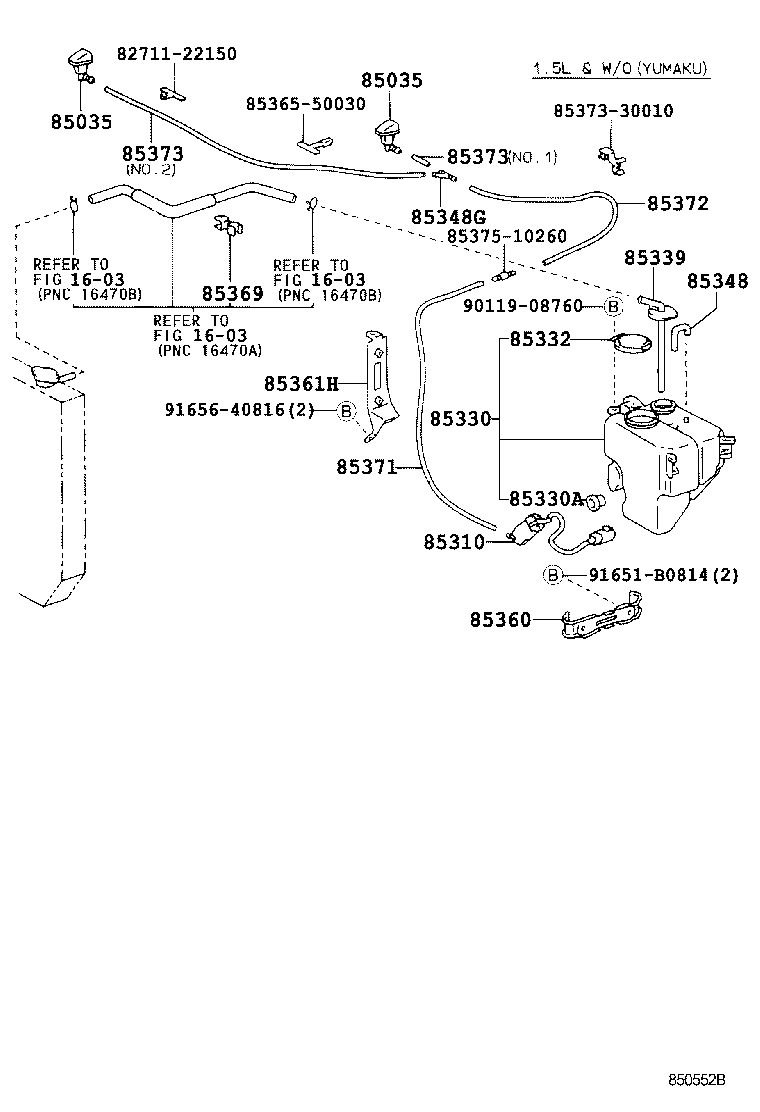

(9110- )
ﾅｼ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85310-20210 |
GS130..WG..SDX;GS131,JZS13#,LS130,131;GS130..SED..(ROY,SALEX,SDX) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85334-30280 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=600 |
1 | ||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=500,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-22150 | ||||
| 85365-50030 | ||||
| 85373-30010 | ||||
| 85375-10260 | ||||
| 90119-08760 | ||||
| 91651-B0814 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1603 | ||||

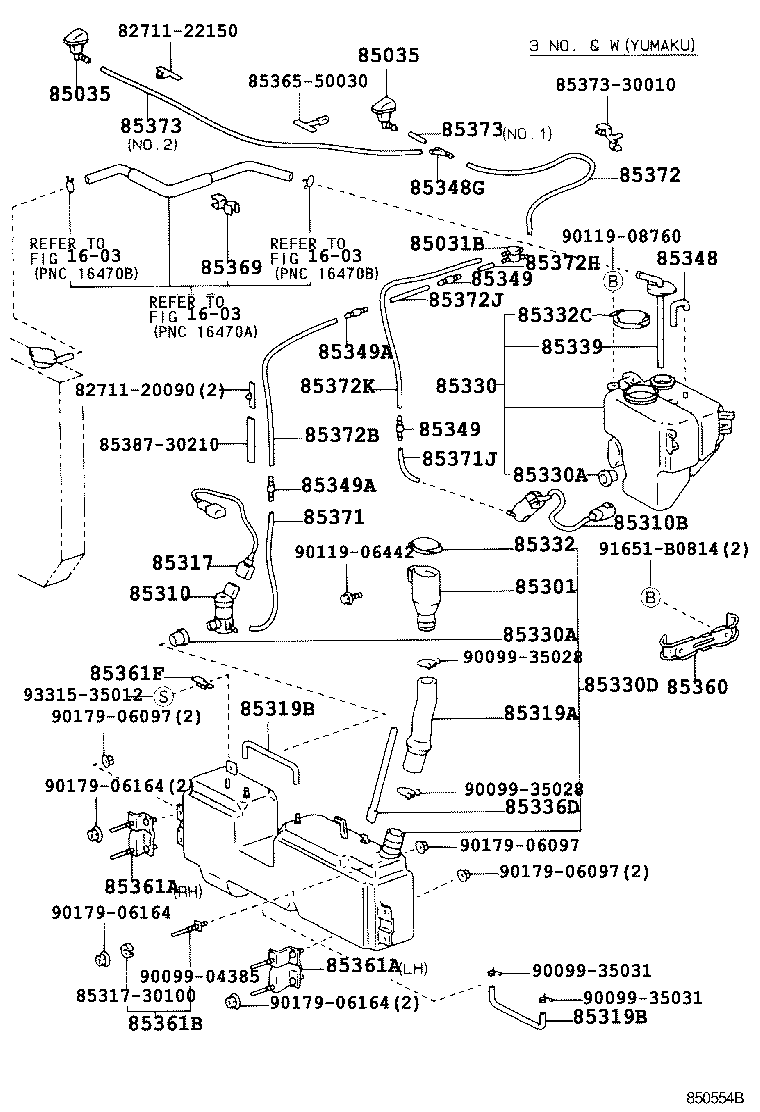

(9110- )JZS13#
ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,ｱﾘ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85375-30240 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020C1 |
JZS131,133,135..ROY,ROYG BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B2 |
GS13#,JZS13#,LS13#,YS130 SILVER ME,199 |
2 | ||
| 85381-30020A2 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 2,040 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) BLACK,183 ,202 ,742 ,8J5 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85318-30100 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85310-20210 |
GS130..WG..SDX;GS131,JZS13#,LS130,131;GS130..SED..(ROY,SALEX,SDX) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER | ||||
| 85340-30140 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85310-20190 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85330-30220 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30210 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-30140 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-30100 |
JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85315-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85316-20350 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85316-30150 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85316-30130 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30130 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG) |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85334-30280 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85334-22470 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85334-22470 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85334-22470 |
JZS13#..4FC..(ROY,ROYG) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
JZS13#..4FC..(ROY,ROYG) |
2 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85337-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
1 | ||
| 85337-30100 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85337-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
1 | ||
| 85337-30100 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85338-30100 |
GS130,JZS13#..4FC..(ROY,ROYG) |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85338-30110 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=600 |
1 | ||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=500,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85371J - TUBE, RUBBER | ||||
| 90099-33075 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=1000 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=580 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX *H,L=1100 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33729 |
JZS13#..4FC..(ROY,ROYG) 長さ=30,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
GS130,JZS13#..4FC..(ROY,ROYG) *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=80,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33210 |
JZS13#..4FC..(ROY,ROYG) *H,L=330,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
JZS13#..4FC..(ROY,ROYG) *H,L=550,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13#,YS130 *H,L=540,NO.1,NO.2 |
1 | ||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-20090 | ||||
| 82711-22150 | ||||
| 85317-30100 | ||||
| 85365-50030 | ||||
| 85373-30010 | ||||
| 85387-30210 | ||||
| 90099-04385 | ||||
| 90099-35028 | ||||
| 90099-35031 | ||||
| 90119-06442 | ||||
| 90119-08760 | ||||
| 90179-06097 | ||||
| 90179-06164 | ||||
| 91651-B0814 | ||||
| 93315-35012 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
