JZS131-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )SED

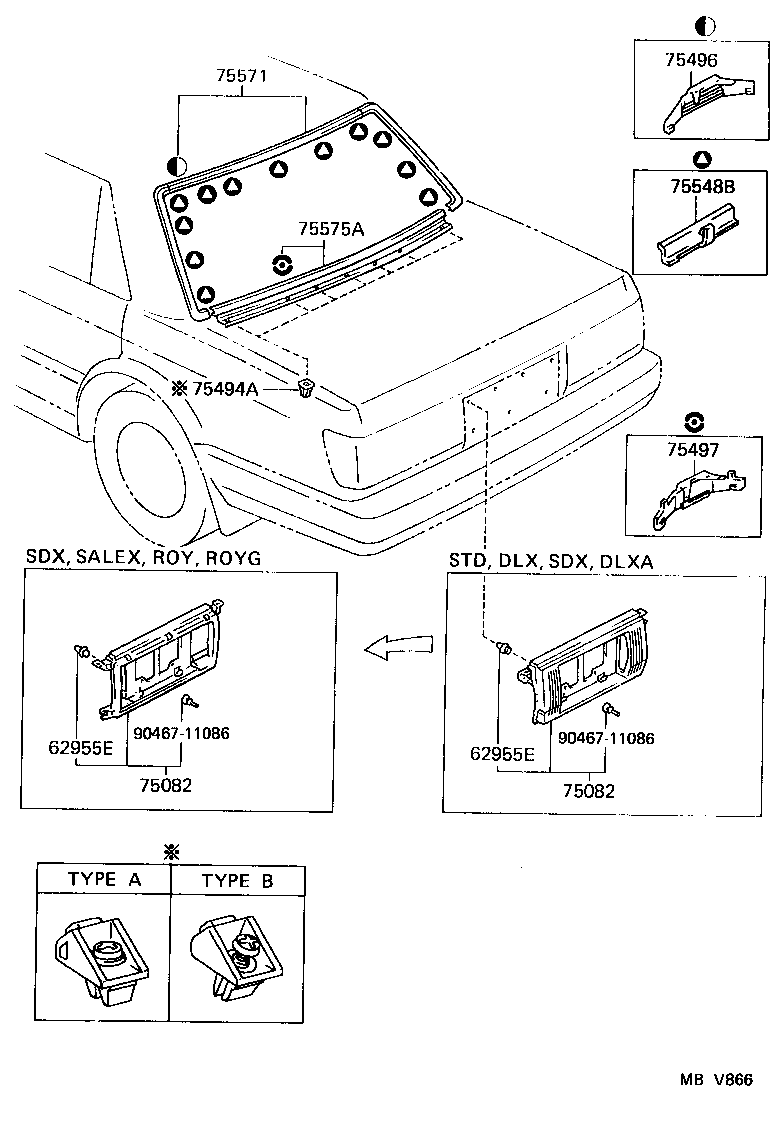

Click highlighted areas on diagram

diagram 62955E 62955E 75082 75082 75494A 75496 75497 75548B 75571 75575A 9046711086 9046711086
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GS130,131,JZS131,133,135,LS130,131..SED

 4
62955-20040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 4
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GS130,131,JZS131,133,135,LS130,131..SED

 4
62955-20040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 4
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30220

GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX

 1
75082-30280

GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30220

GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX

 1
75082-30280

GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX

 1
75494A - CLIP, OUTSIDE MOULDING, NO.3
75494-30060

GS130,131,JZS131,133,135,LS130,131..SED

ﾀｲﾌﾟ B

 2
75494-30040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ｶｺﾞｼﾏ ｼﾖｳ,ﾀｲﾌﾟ A

 5
75494-30060

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ﾀｲﾌﾟ B

 2
75494-30040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ﾀｲﾌﾟ A

 7
75494-30040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ﾀｲﾌﾟ A

 5
75494-30040

GS130,131,JZS131,133,135,LS130,131..SED

ﾀｲﾌﾟ A

 5
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-30080

GS130,131,JZS131,133,135,LS130,131..SED

 12
75496-30080

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 12
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-30050

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 7
75497-30050

GS130,131,JZS131,133,135,LS130,131..SED

 7
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-32070

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 12
75548-32070

GS130,131,JZS131,133,135,LS130,131..SED

 12
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30270

GS130,131,JZS131,133,135,LS130,131..SED

 1
75571-30270

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
75571-30290

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75571-30290

GS130,131,JZS131,133,135,LS130,131..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-30240

GS130,131,JZS131,133,135,LS130,131..SED

 1
75575-30260

GS130,131,JZS131,133,135,LS130,131..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75575-30240

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
75575-30260

GS130,131,JZS131,133,135,LS130,131,YS130..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90467-11086
