JZS131-AEPQF (1991)
Toyota Crown
ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-30200 |
GS130,131,JZS131,133,135,LS130,131..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75531-30180 |
GS13#,JZS13#,LS13# |
1 | ||
| 75531-30180 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 75531-30180 |
GS130,131,JZS131,133,135,LS130,131..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75531-30200 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75531-30180 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75533C - GARNISH, FRONT PILLAR, OUTER RH | ||||
| 75533-30210 |
GS13#,JZS13#,LS13# |
1 | ||
| 76053-30010 |
GS13#,JZS13#,LS13#,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75533-30240 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75533-30240 |
GS130,131,JZS131,133,135,LS130,131..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75533-30210 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 76053-30010 |
GS13#,JZS13#,LS13# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75534C - GARNISH, FRONT PILLAR, OUTER LH | ||||
| 75534-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 75534-30220 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75534-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 75534-30220 |
GS130,131,JZS131,133,135,LS130,131..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75534-30190 |
GS130,131,JZS131,133,135,LS130,131..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75534-30190 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2 | ||||
| 75546-30050 |
GS13#,JZS13#,LS13#,YS130 |
5 | ||
| 75546-30050 |
GS13#,JZS13#,LS13# |
5 | ||
| 75549C - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2 | ||||
| 75549-20090 |
GS13#,JZS13#,LS13#,YS130 |
5 | ||
| 75549-20090 |
GS13#,JZS13#,LS13# |
5 | ||
| 75615D - MOULDING, FRONT FENDER, REAR RH | ||||
| 75615-30130 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75615-30120 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX |
1 | ||
| 75616D - MOULDING, FRONT FENDER, REAR LH | ||||
| 75616-30120 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX |
1 | ||
| 75616-30130 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-30261 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG) |
1 | ||
| 75770-30260 |
GS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG) |
1 | ||
| 75772D - MOULDING, HOOD, REAR | ||||
| 75772-30091 |
GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX |
1 | ||
| 75772-30101 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX) ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4 | ||||
| 75961-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 75961-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5 | ||||
| 75962-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 75962-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 75963A - CLIP, FRONT PILLAR OUTER GARNISH, NO.3 | ||||
| 75963-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 75963-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 75964A - CLIP, FRONT PILLAR OUTER GARNISH, NO.4 | ||||
| 75964-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 75964-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| Common parts | ||||
| 90159-50318 | ||||
| 90164-40057 | ||||
| 90189-05138 | ||||
| 90189-05139 | ||||

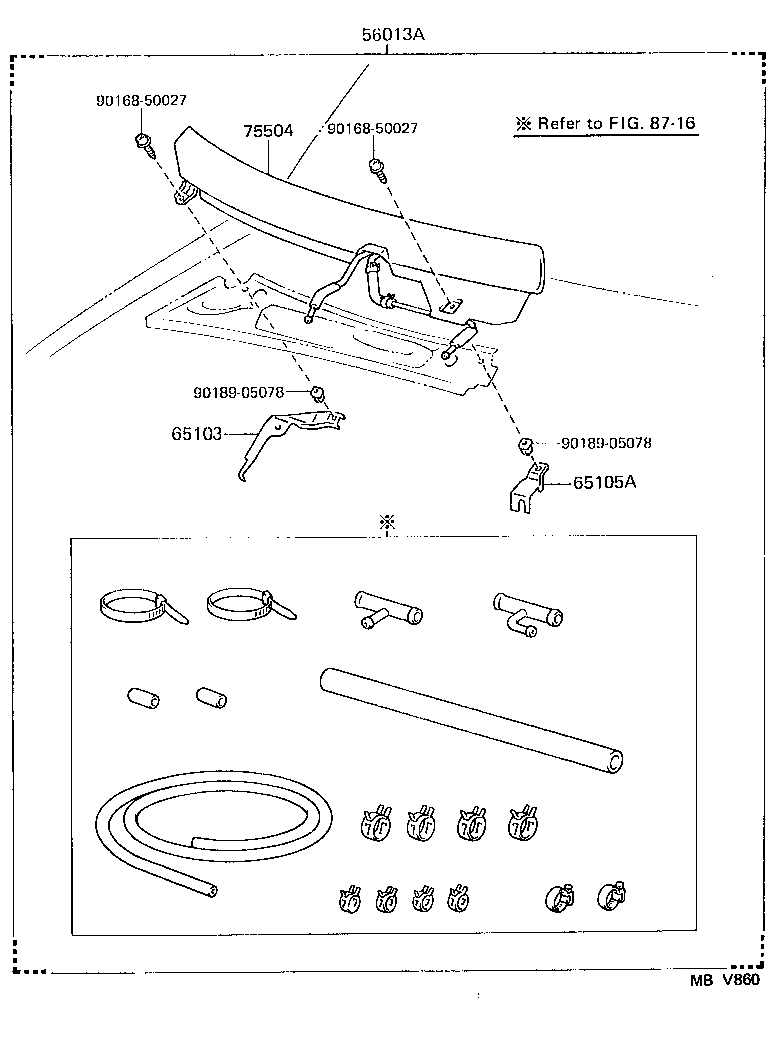

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90168-50027 | ||||
| 90189-05078 | ||||
| Linked diagrams | ||||
| 8716 | ||||
