JZS131-AEPQF (1991)
Toyota Crown
(9110- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58322E - INSULATOR, REAR FLOOR HEAT, NO.2 | ||||
| 58322-30050 |
JZS131,133,135,LS131 |
1 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-30070 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 58703-30071 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 58703-30080 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ) |
1 | ||
| 58703-30070 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-30080 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 58704-30080 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 62961A - GRILLE, ROOM VENT, RH | ||||
| 62961-30010E0 |
JZS131,133,135,LS131 QUARTZ,TRIM4# |
1 | ||
| 62961-30010B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 62961-30010J0 |
JZS131,133,135,LS131 DK.BLUE,TRIM8# |
1 | ||
| 62961-30010J0 |
JZS131,133,135 DK.BLUE,TRIM8# |
1 | ||
| 62961-30010E0 |
JZS131,133,135 QUARTZ,TRIM4# |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-30050J0 |
JZS131,133,135,LS131 DK.BLUE,TRIM8# |
1 | ||
| 64033-30050E0 |
JZS131,133,135 QUARTZ,TRIM4# |
1 | ||
| 64033-30050J0 |
JZS131,133,135 DK.BLUE,TRIM8# |
1 | ||
| 64033-30050E0 |
JZS131,133,135,LS131 QUARTZ,TRIM4# |
1 | ||
| 64033-30050B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-30010E0 |
JZS131,133,135,LS131 QUARTZ,TRIM4# |
1 | ||
| 64034-30010E0 |
JZS131,133,135 QUARTZ,TRIM4# |
1 | ||
| 64034-30010J0 |
JZS131,133,135 DK.BLUE,TRIM8# |
1 | ||
| 64034-30010J0 |
JZS131,133,135,LS131 DK.BLUE,TRIM8# |
1 | ||
| 64034-30010B0 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64205-30020 |
GS131,JZS131,133,135,LS131 |
1 | ||
| 64206E - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-30021 |
JZS131,133,135..ROY,ROYG |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-30120 |
GS130,131,JZS131,133,135,LS130,131..SED |
1 | ||
| 64271-30120 |
GS130,131,JZS131,133,135,LS130,131,YS130..SED |
1 | ||
| 64309B - POCKET SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64309-30030J1 |
JZS131,133,135 DK.BLUE,TRIM8# |
1 | ||
| 64309-30030B1 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 64309-30030J1 |
JZS131,133,135,LS131 DK.BLUE,TRIM8# |
1 | ||
| 64309-30030E1 |
JZS131,133,135,LS131 QUARTZ,TRIM4# |
1 | ||
| 64309-30030E1 |
JZS131,133,135 QUARTZ,TRIM4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3A080J1 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX DK.BLUE,TRIM8# |
1 | ||
| 64330-3A070B1 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 64330-3A070E1 |
JZS131,133,135..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 64330-3A070J1 |
JZS131,133,135..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3A080J1 |
JZS131..SALEX;GS130,131,LS131..ROY,SALEX DK.BLUE,TRIM8# |
1 | ||
| 64330-3A070B1 |
JZS131,133,135..ROY,ROYG SHADOW GRAY,TRIM1# |
1 | ||
| 64330-3A070E1 |
JZS131,133,135..ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 64330-3A070J1 |
JZS131,133,135..ROY,ROYG DK.BLUE,TRIM8# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-07121C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8#&050 ,176 ,183 ,202 ,6K2 ,8J5 |
3 | ||
| 90467-08056C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
3 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-30360C0 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ),BLACK,TRIM1#,4#,8# |
1 | ||
| 64711-30350C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-30200C2 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64714-30210C0 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ),BLACK,TRIM1#,4#,8# |
1 | ||
| 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) | ||||
| 90950-01436C1 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
4 | ||
| 64714F - PLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER) | ||||
| 90950-01436C1 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
4 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-30170C2 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90904-67017C0 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
11 | ||
| 90467-05112C0 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
11 | ||
| 90467-05125C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
11 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-30170C2 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64716J - PLUG, HOLE(FOR LUGGAGE COMPARTMENT REAR COVER) | ||||
| 90950-01436C1 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
4 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-30210C2 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64717-30230C0 |
JZS131,133,135..4FC..(ROY,ROYG) ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ),BLACK,TRIM1#,4#,8# |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-07121C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8#&050 ,176 ,183 ,202 ,6K2 ,8J5 |
4 | ||
| 90467-07121C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
4 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-05125C0 |
JZS131,133,135..4FC..(ROY,ROYG) BLACK,TRIM1#,4#,8# |
2 | ||
| 90904-67017C0 |
JZS131,133,135..4FC..(ROY,ROYG) GRAPHITE,TRIM1#,4#,8# |
2 | ||
| 90467-05112C0 |
JZS131,133,135..4FC..(ROY,ROYG) GRAPHITE,TRIM1#,4#,8# |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90339-10008C0 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
2 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-30080C0 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-30100 |
JZS131,133,135 ｱﾘ(ｽﾍﾟｱﾀｲﾔ=14ｲﾝﾁ & ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 64770-30071 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-30100 |
JZS131,133,135 ｱﾘ(ｽﾍﾟｱﾀｲﾔ=14ｲﾝﾁ & ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 64770-30071 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 64773 - COVER, SPARE WHEEL, NO.2 | ||||
| 64773-30020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 64778B - PROTECTOR, SPARE WHEEL | ||||
| 64778-30010 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TWC) |
3 | ||
| 64778-14020 |
GS130,131,JZS131,133,135,LS130,131..SED..(HTWC,TDE,TDEC,TWC) |
3 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64719-30080C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-05112C0 |
JZS131,133,135..ROY,ROYG GRAPHITE,TRIM1#,4#,8# |
16 | ||
| 90467-05105C0 |
JZS131,133,135..ROY,ROYG BLACK,TRIM1#,4#,8# |
16 | ||
| Common parts | ||||
| 67921-91601 | ||||
| 90159-60372 | ||||
| 90168-50023 | ||||
| 90179-06208 | ||||
| 90183-05016 | ||||
| 90467-07121C0 | ||||
| 90467-09127 | ||||
| 93560-54014 | ||||

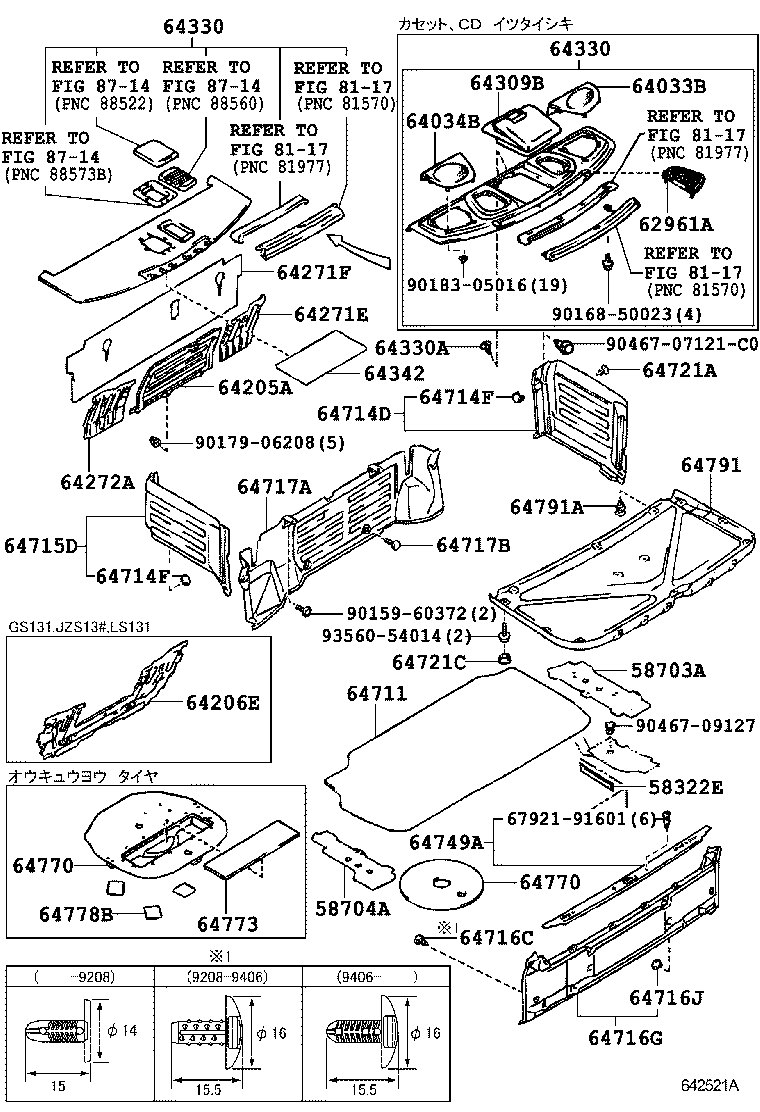

| Linked diagrams | ||||
| 8117 | ||||
| 8714 | ||||
